12.0 Mounting of NM motor drive
1. Check that the motor drive is working correctly according to
Fig. 51 and 52.
Motor drive settings for A-mechanism
2. NAL/F must be in open position and discharge both springs.
Locate the spacer bracket mounting holes on the A-mecha-
nism, see Fig. 53-54. Fully tighten mounting screws.
NAL/NALF – Mounting and operation manual 17
Fig. 51
Fig. 53
Fig. 52
Fig. 54

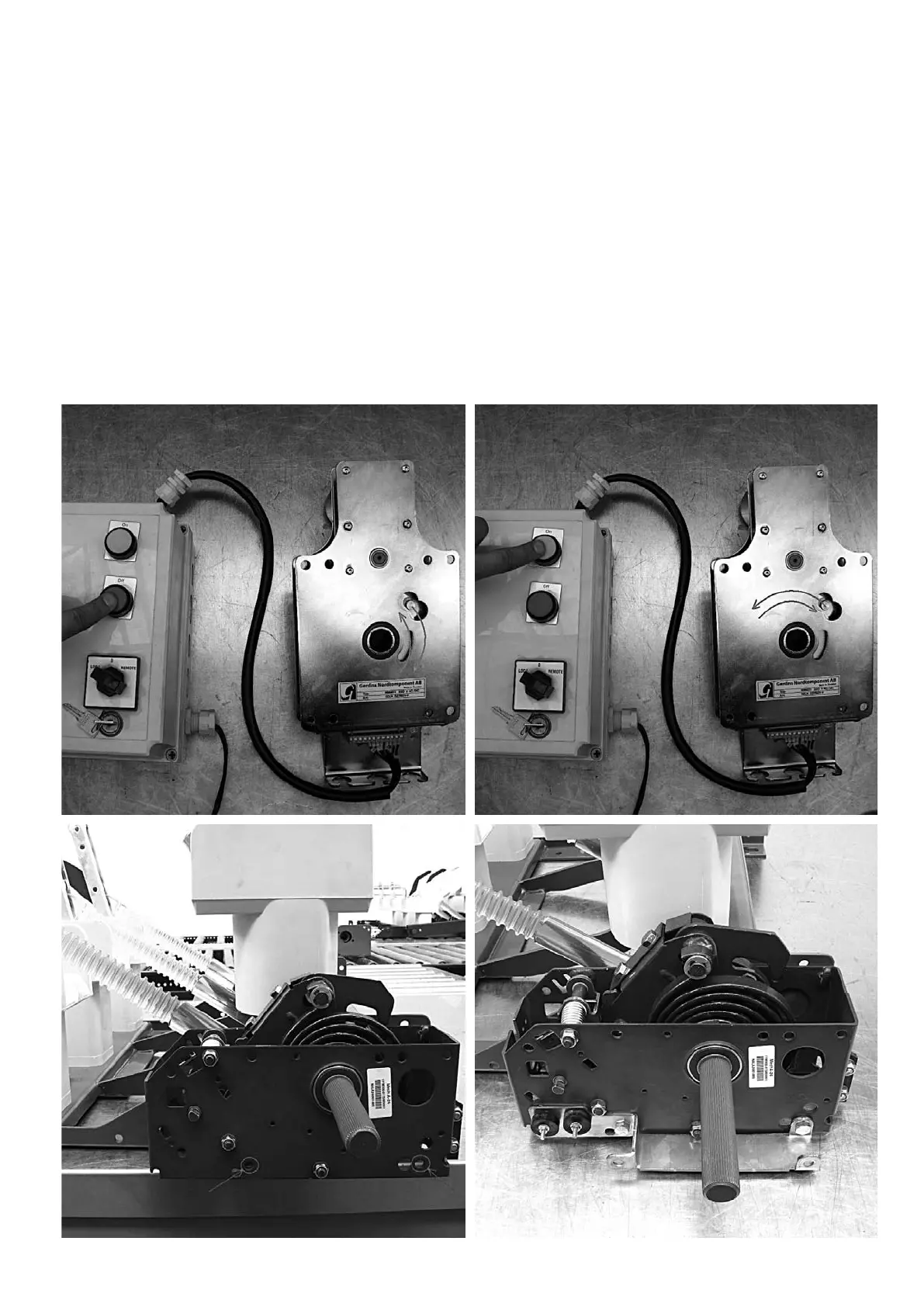

Fig. 51-54 Mounting of NM motor drive on A-mechanism
