TERR A 54 / 54 H V CHAR G ER
2018- 10- 03 30/40
1. Cut the 3 phase and neutral wires of the power cable to the correct lengths to reach the
connectors.
2. Use wire stripper pliers to remove 20 mm of the insulation from the ends of the wires and
attach the cable lugs.
3. Pull the covers away from the connectors and remove them.
4. Loosen the bolts of the connectors.

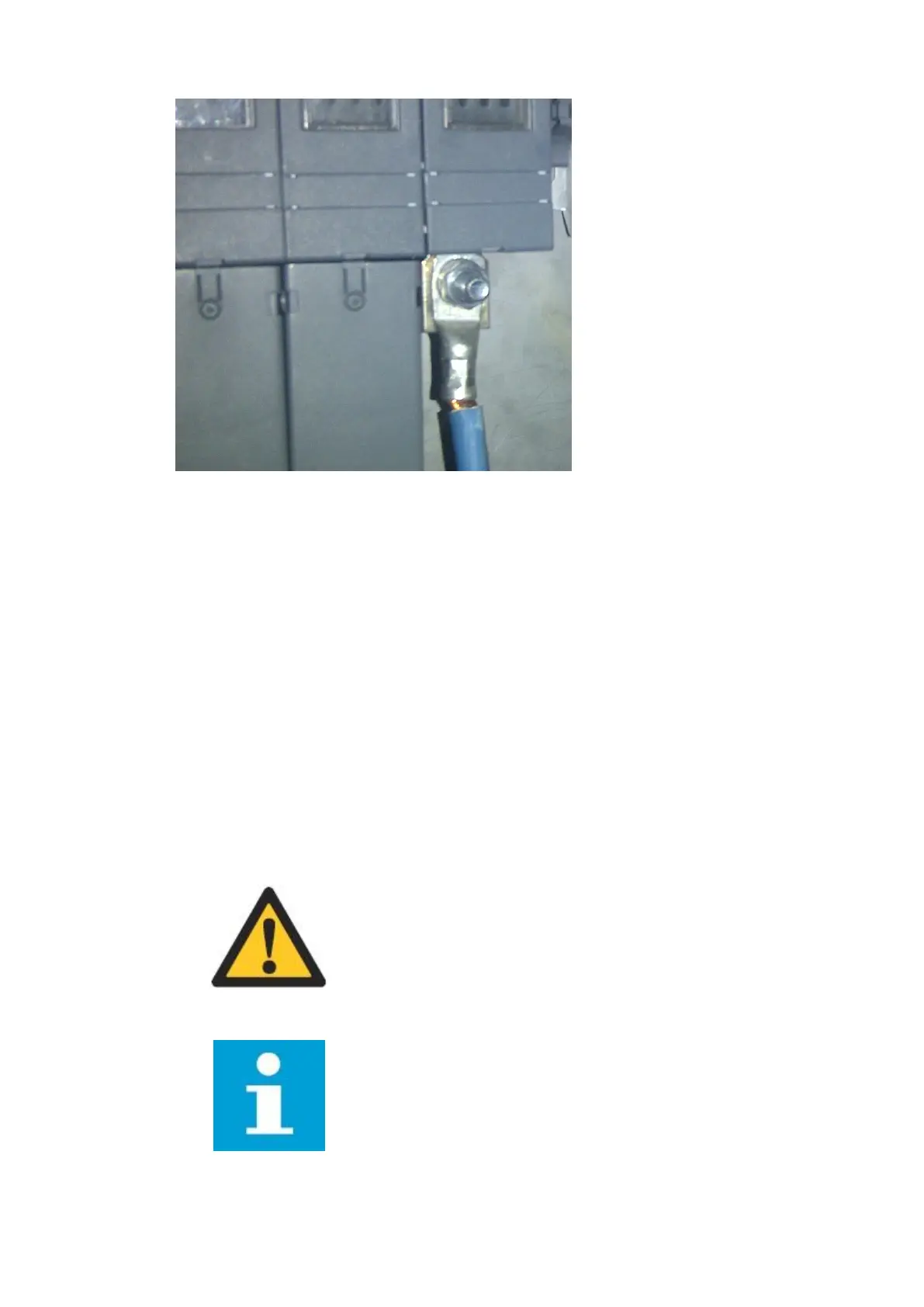

5. Attach the four wires onto their connectors.
From left to right:
L1 (brown) at position 2,
L2 (black) at position 4,
L3 (grey or black) at position 6,
0 (blue) at position 8.
6. Tighten the bolts. The advised torque value ranges between 15 and 20 Nm.
7. Install the covers back onto the connector.
WARNING
Leave the main switch switched off. The Terra 54 is not ready
for use yet. Please contact the ABB Service department at
least one week in advance to make an appointment for com-
missioning.
NOTICE
Only connect the network cable if a wireless 2G/3G connec-
tion is not possible.
Preconditions:
