6.5 PHASE 5 – ASSEMBLIES MOUNTED ON CIRCUIT BREAKER RIGHT SIDE
Actions to be performed
Cross screwdriver
Torx key
Allen key
No. 15
Flat screwdriver
Tools

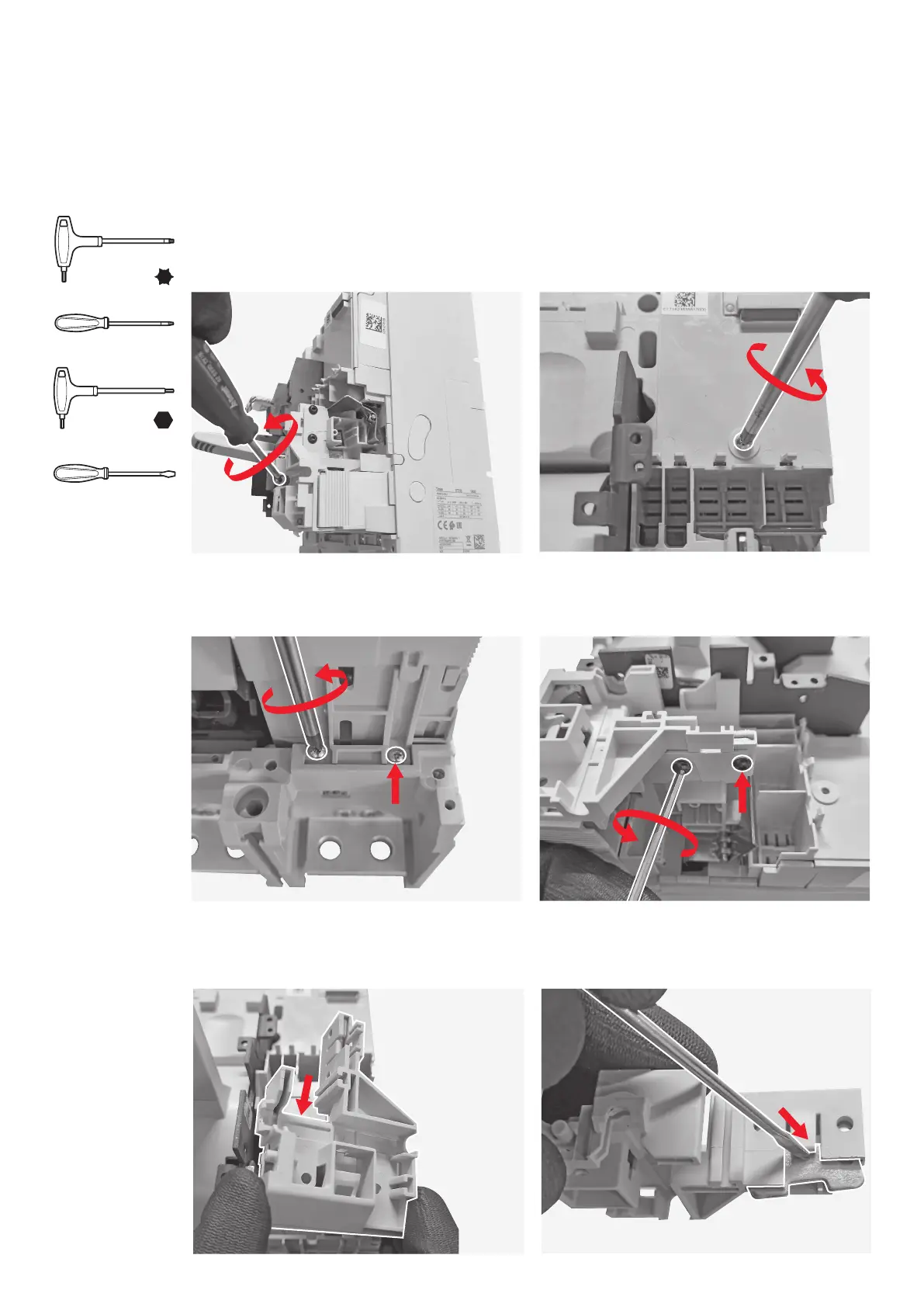

54
By means of the torx key unscrew the screw
fixing the trip test group to the operating
mechanism.
56
By means of the cross screwdriver unscrew the
2 screws located in the lower part of the MID.
55
By means of the cross screwdriver unscrew the
screw located in the upper part of the MID.
57
By means of the allen key unscrew the 2 screws
fixing the trip test group to the MID.
58
Manually complete the removal of the trip test
group.
59
By means of the flat screwdriver push out from
the trip test group the plate.
2.5mm
