ABB TMAX XT XT7 User Manual

5
Disassembly instruction tmaX Xt Xt7
Tools
Allen key
Flat screwdriver

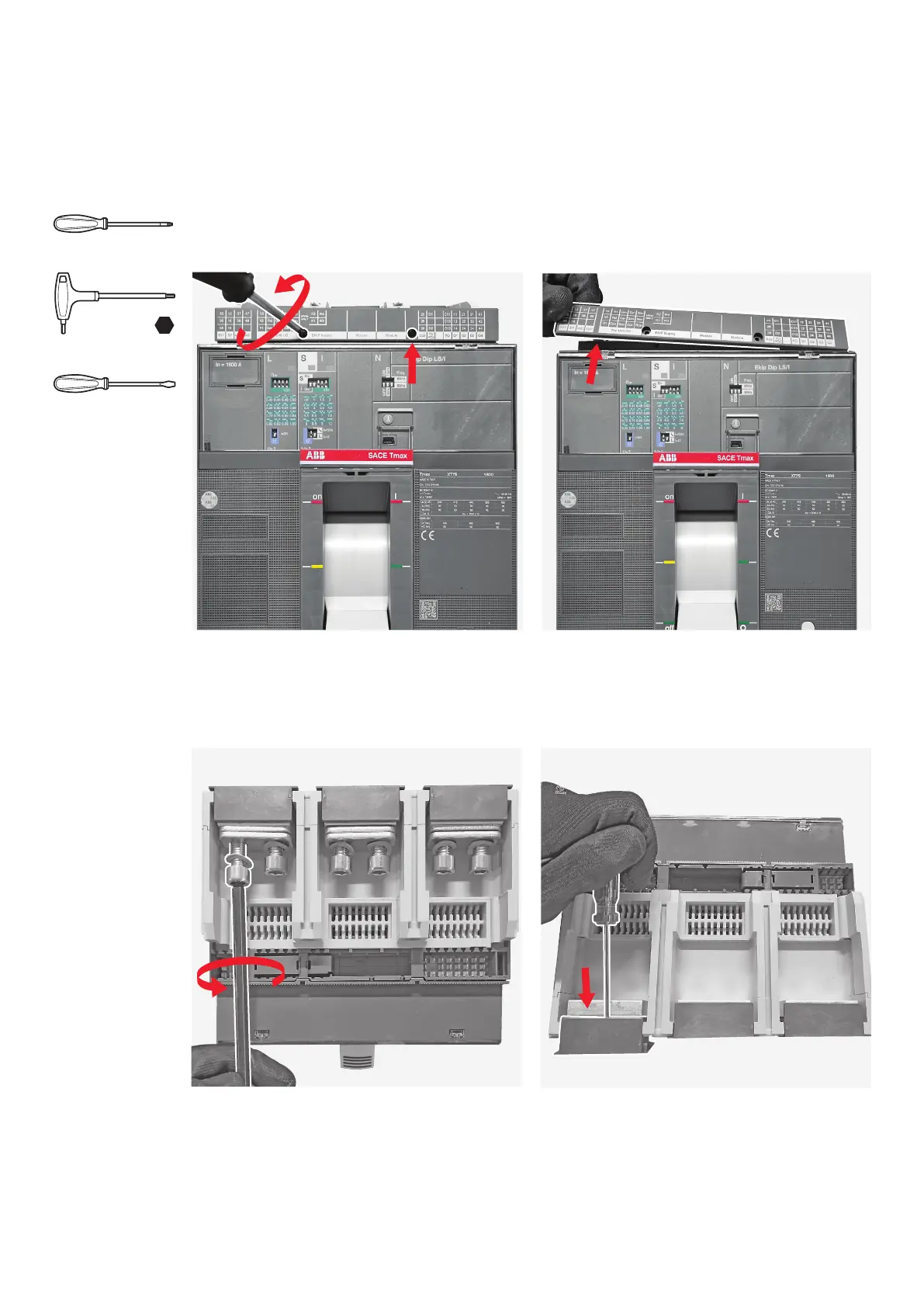

6.1 PHASE 1 – CAP KITS
1
By means of the cross screwdriver unscrew
the 2 screws fixing the terminal clamp to the
circuit breaker main structure.
4
By means of the flat screwdriver push the cap
kits in order to remove them from the circuit
breaker main structure.
3
By means of the allen key remove the screws
connected with the cap kits and after manually
remove the plates.
2
Manually remove the terminal clamp.
Actions to be performed
8mm
Cross screwdriver
