21

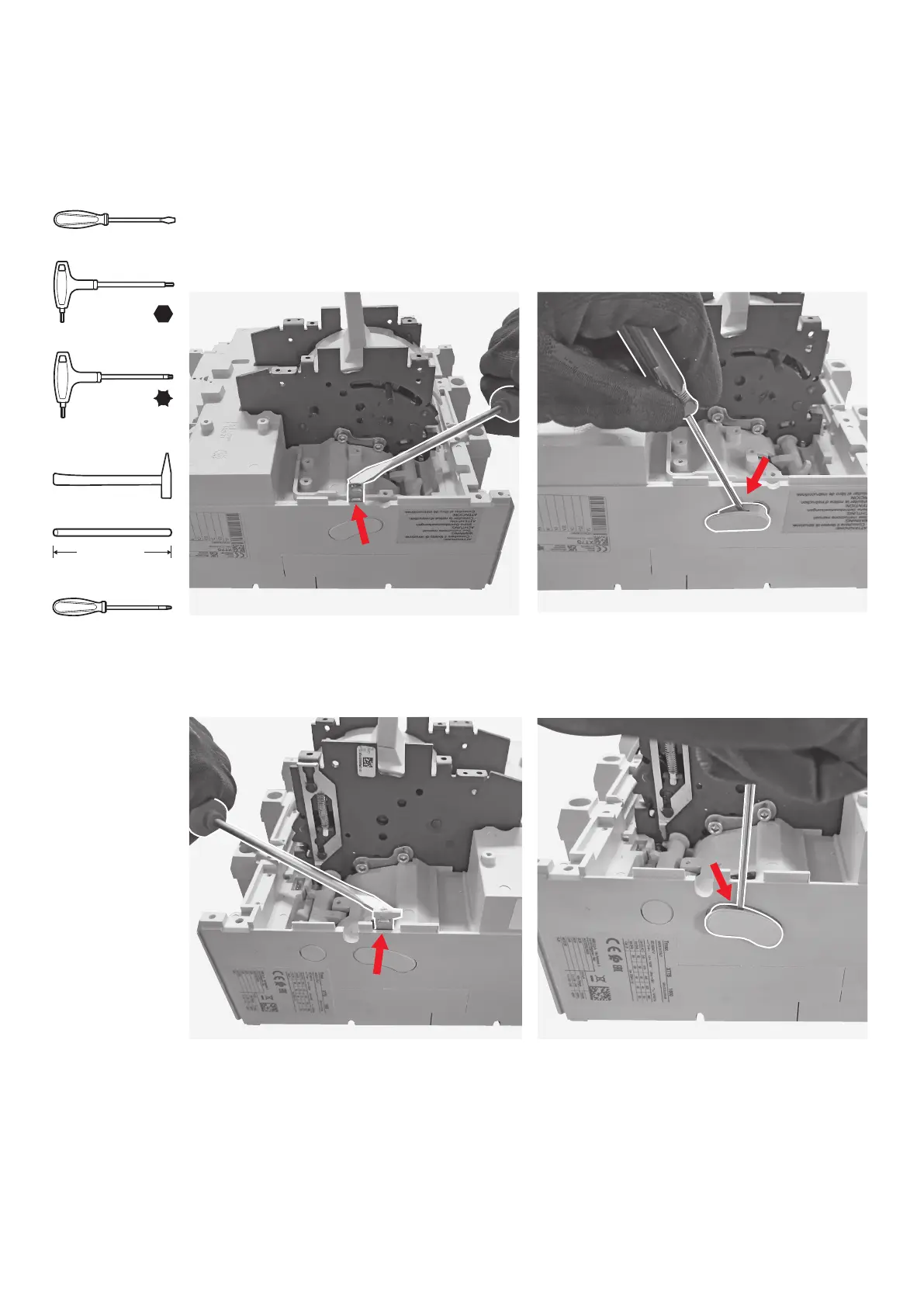

Disassembly instruction tmaX Xt Xt7
6.6 PHASE 6 – OPERATING MECHANISM
Actions to be performed
Hammer

Tools
Flat screwdriver
Allen key
4mm
Cross screwdriver
Min. 200mm
No. 6
No. 20
No. 25
Torx key
67
By means of the flat screwdriver lift the lever
mounted on the left side of the circuit breaker
and remove it.
69
By means of the flat screwdriver lift the lever
mounted on the right side of the circuit
breaker and remove it.
68
By means of the flat screwdriver remove the
cover cap on the left side of the circuit breaker.
70
By means of the flat screwdriver remove
the cover cap on the right side of the circuit
breaker.
