6.9 PHASE 9 – ARCHING CHAMBERS AND CIRCUIT BREAKER COVER
Actions to be performed
Cutter
Flat screwdriver
Tools
106

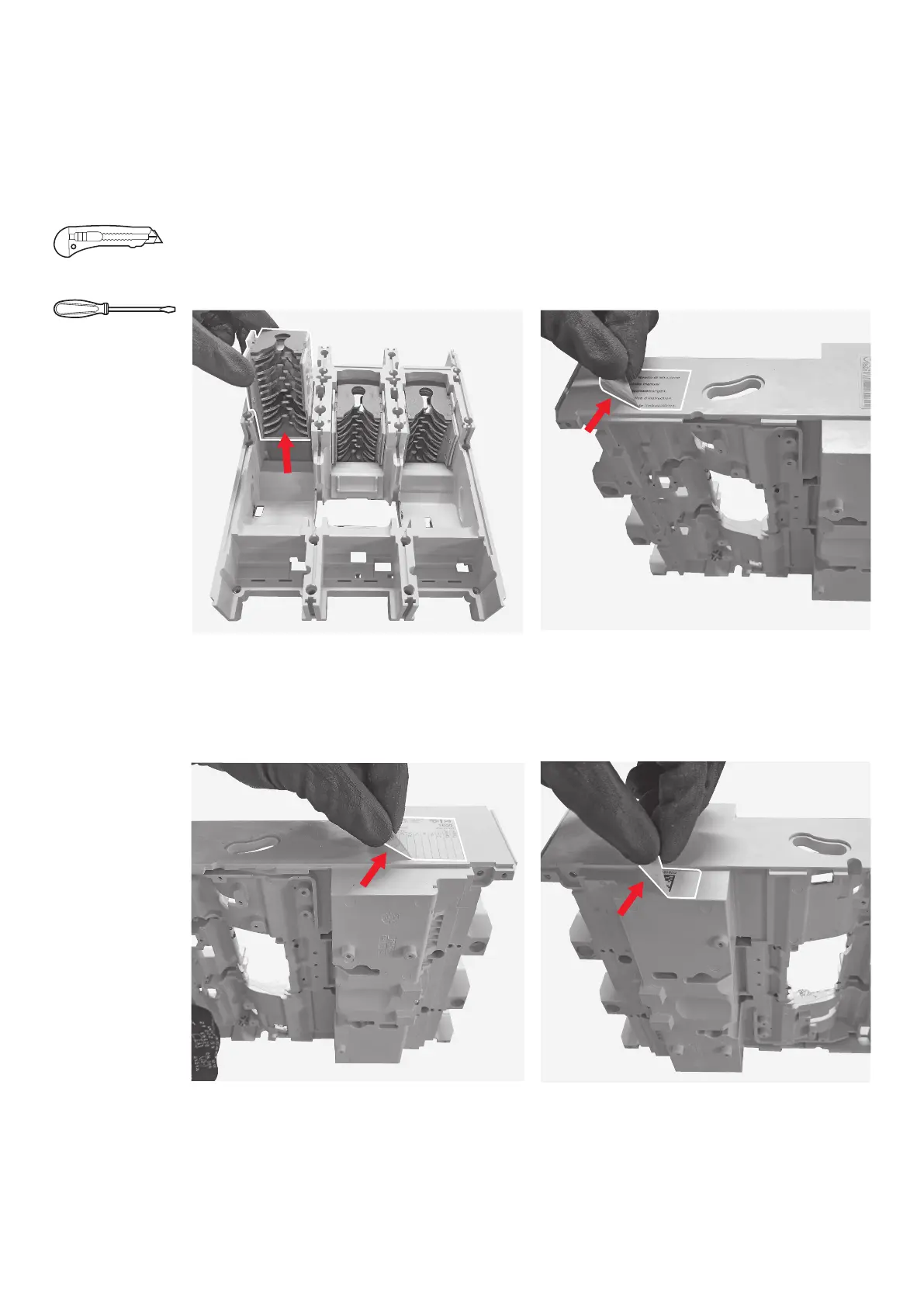

Manually remove the arching chambers.
108
By means the cutter, lift the label located
on the side of the circuit breaker cover and
manually complete the removal.
107
By means the cutter, lift the label located
on the side of the circuit breaker cover and
manually complete the removal.
109
By means the cutter, lift the label located
on the side of the circuit breaker cover and
manually complete the removal.
