1 Preliminary remarks / 1.7 Turbocharger rating plate
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

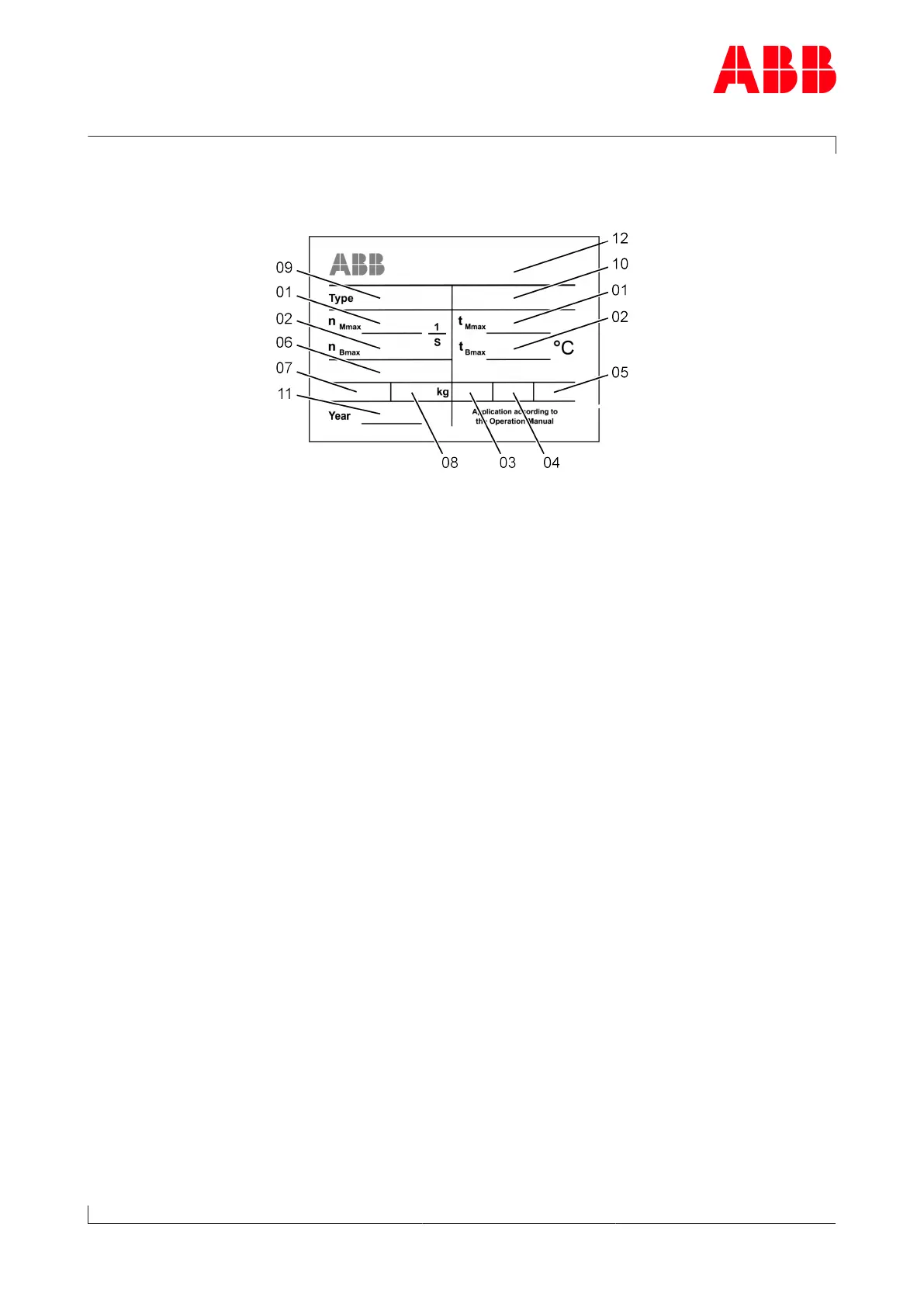

1.7 Turbocharger rating plate
Operating limits
01 Turbocharger operating limits at engine overload (110%).
Only when operating in the test rig unless otherwise agreed with the
enginebuilder.
02 Turbocharger operating limits during operation
Recommended replace-
ment intervals for tur-
bocharger components
03 Replacement interval for plain bearings in 1000 h
04 Replacement interval for compressor in 1000 h
05 Replacement interval for turbine in 1000 h
Further information
06 Part number for customer
07 Designation of special design
08 Turbocharger weight in kg
09 Turbocharger type
10 Serial number
11 Year of turbocharger construction
12 Manufacturing plant
Page 12 / 136
