Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30

5 Maintenance / 5.2 Cleaning the filter silencer

5.2 Cleaning the filter silencer

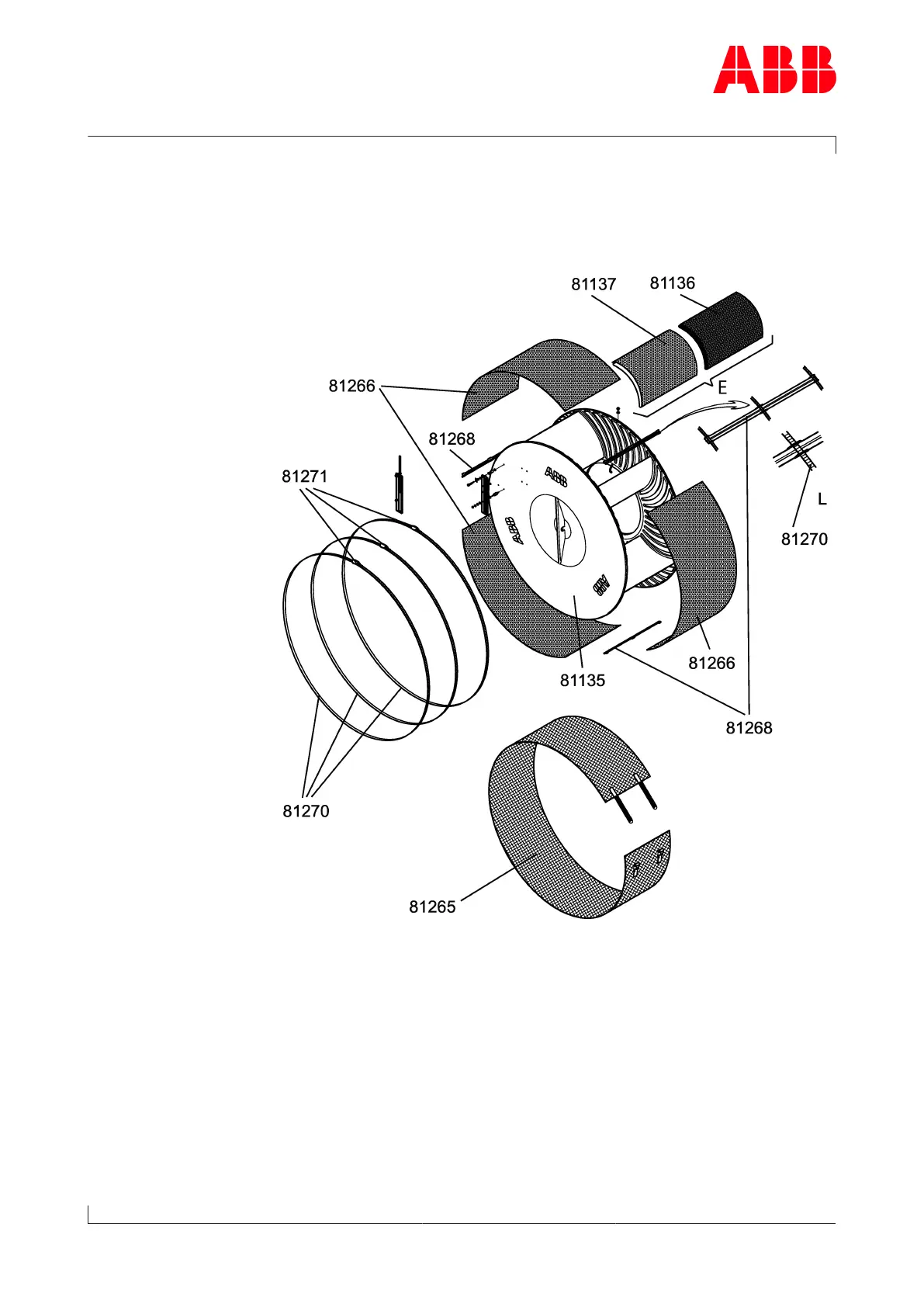

5.2.1 Filter silencer with tension band

81265Filter ring (if provided) 81266Cover grid

81270Tension band 81136Absorption segment

81271Lock 81137Sheet-metal covering

81268Connecting strip 81135Filter silencer body

EInsert unit = absorption segment + sheet-metal covering fitted

Page 46 / 136
