Operation Manual / TPS48-D/E.. - TPS61-D/E..
sembling and assembling
Page 98
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2410_EN Revision E
Disassembling and assembling turbocharger
8.3
Removing the compressor casing
Touching hot surfaces or contact with hot operating materials can lead
to serious burns.
Do not touch hot surfaces and heed the warning plate on the turbo-
charger.
Wear heat-resistant safety gloves and protective clothing.
Allow the turbocharger to cool down before carrying out any work.
Wear safety gloves to protect against thermal hazards.
Disconnect all air lines in accordance with the enginebuilder’s instruc-
tions.
Remove the screws for the compressor casing insulation and disman-
tle the insulation.

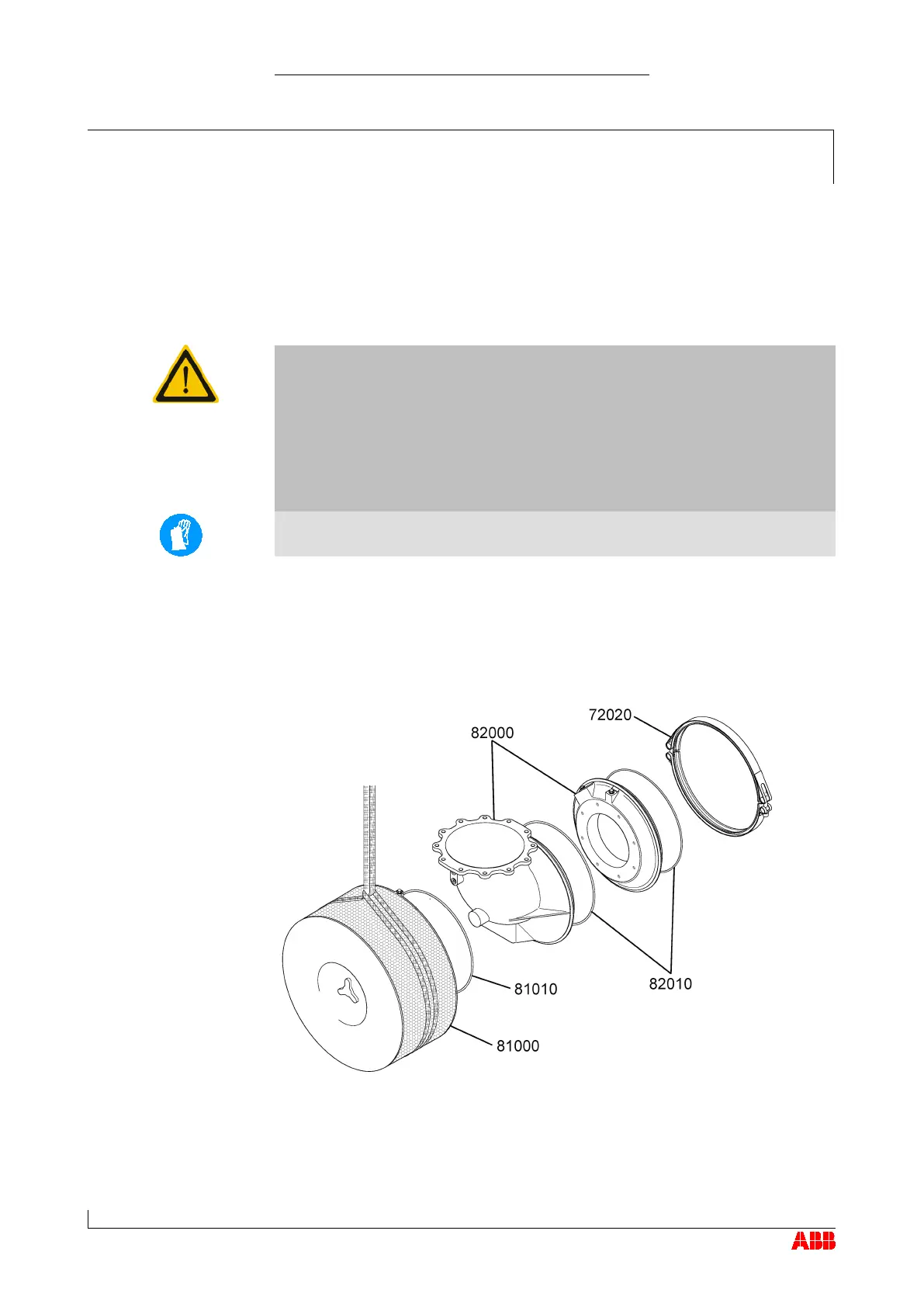

Undo the V-clamp (72020) and remove the filter silencer (81000) or air
suction branch (82000).
