Operation Manual / TPS48-D/E.. - TPS61-D/E..
Page 97
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2410_EN Revision E
8.2

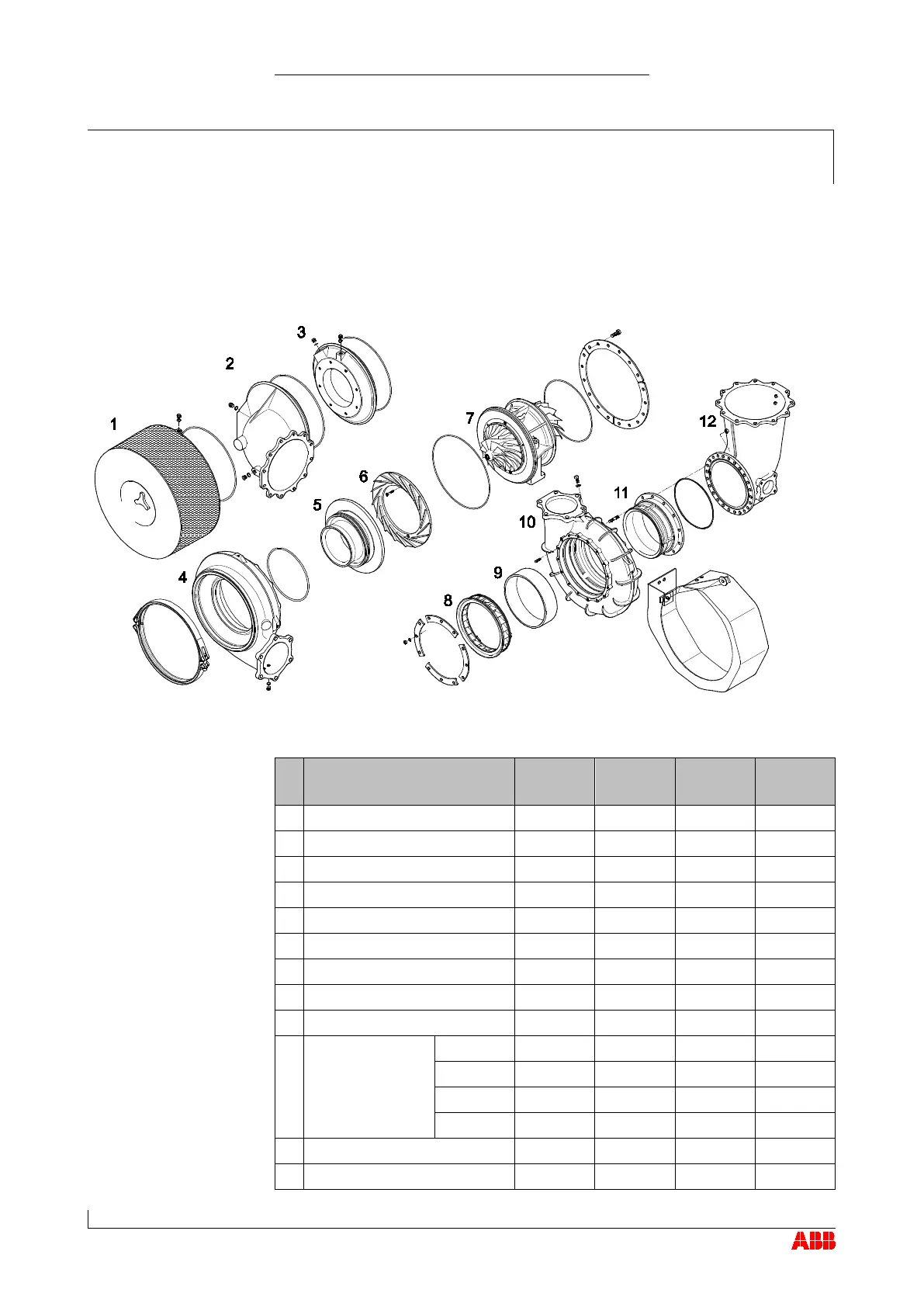

The specified weights of individual parts or assemblies are guides round-
ed off to the next highest value.
1
Filter silencer 19 30 40 65
2
Radial air suction branch 6 8 11 21
3
Axial air suction branch 4 4 6 9
4
Compressor casing 24 35 55 90
5
Wall insert 7 10 13 30
6
Diffuser 2 3 6 10
7
Cartridge group 35 50 85 140
8
Nozzle ring 1 2 3 6
9
Burst ring 2 3 5 12
10
Turbine casing
with external
burst protection
1 inlet 35 50 80 130
2 inlets 35 50 86 150
3 inlets - 53 95 170
4 inlets - - 95 170
11
Gas outlet flange 4 8 16 30
12
Gas outlet bend 18 25 40 60
