3 Installation in the transformer
3.2.2 Mounting of the on-load tap-changer when transformer ratio measurement is carried out
after drying
Mounting to the ”yoke-fork” of the transformer. See Fig. 9.
1. Loosen all the twelve bolts and washers in the top cover and lift the cover carefully min.
100 mm straight upwards before moving it in horizontal direction. The bevel gear and
the pipe may not be damaged when lifting. If a crane is used arrange the straps accord-
ing to Fig. 8a.
2. Remove the upper part of the top section by loosening the twelve M8-socket head cap
screws inside it. Keep the ange, the cover, the O-rings and the sealing for the suction
pipe, see Fig. 8 and store them temporarily on a dustfree place.
NOTE: The gear mechanism on the gear base plate needs not and shall not be re-
moved, because it is xed in the lower part.
3. When lifting the on-load tap-changer onto the ”yoke-fork” it is recommended that
lifting eyes M12 are mounted in the lower ange.
NOTE: Check that the on-load tap-changer is positioned in the right way in rotational
relation to the transformer cover, before connection of conductors according to sec-
tion 4.3.
NOTE: Spacers (for example of wood) can be placed between the ”yoke-fork” and
the lower ange. The connectors can hereby be mounted on the right nal height.
The spacers must be removed before mounting of the on-load tap-changer onto the
transformer cover. See Fig. 10.
max 90
o

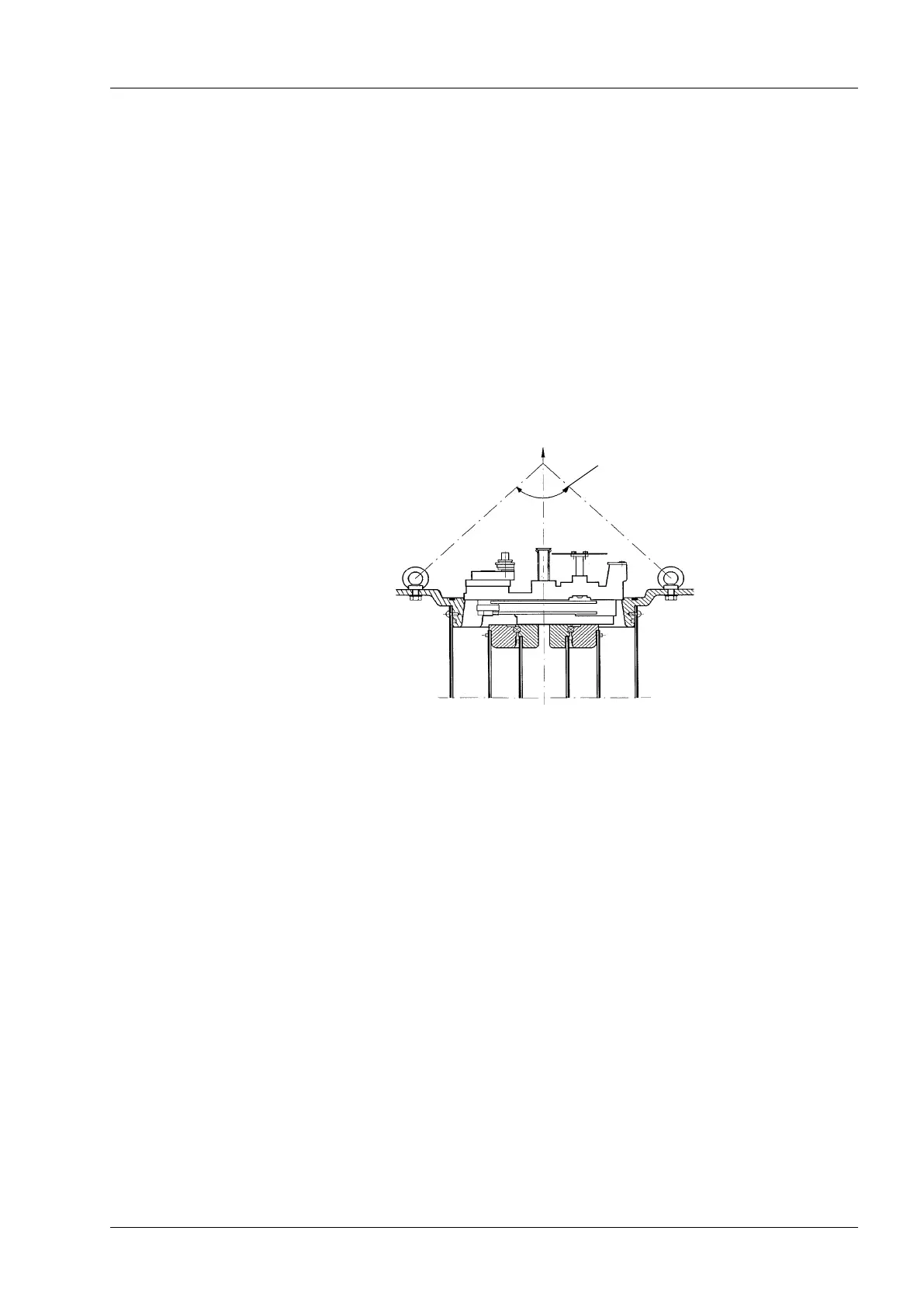

Fig. 9.
