6.3.3 Run-on block
When any irregularities occur in the internal control
mechanism or with the charging function of the
spring energy store, the run-on stop blocks the
next closing operation.
This is a protective function to prevent damage to
the circuit-breaker.
Release of the run-on block is described in
Instruction Manual BA 383/E.
5
9
4
3
2
8
11
1.3

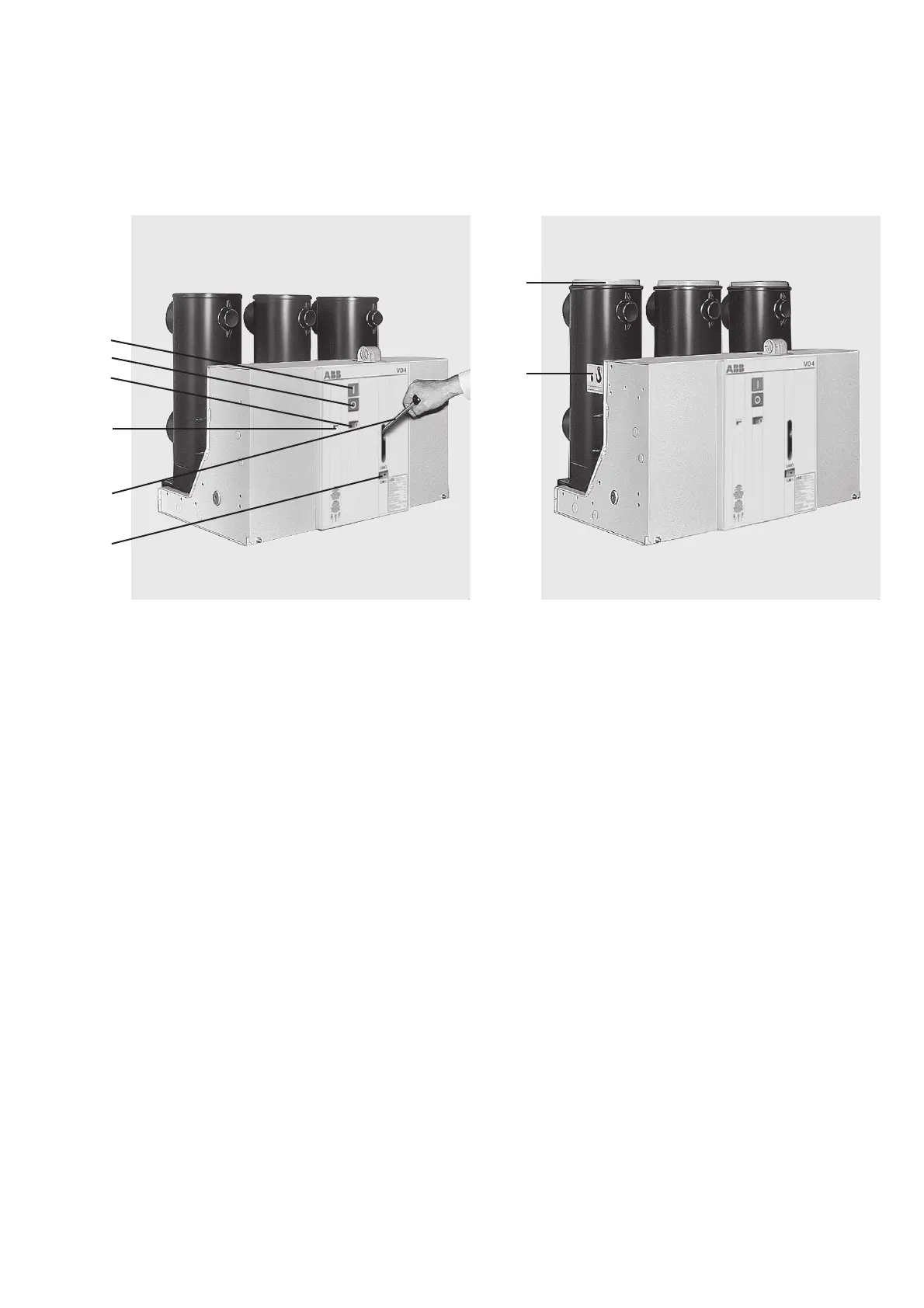

Figure 6/1: Operation
2 Mechanical ON push-button
3 Mechanical OFF push-button
4 Mechanical position indicator
5 Mechanical operating cycle counter
8 Charging condition indicator
9 Charging lever
Figure 6/2: Transport view
1.3 Lifting lug (remove prior to commissioning)
11 Transport cap (remove prior to commissioning)
