Chapter 3 123

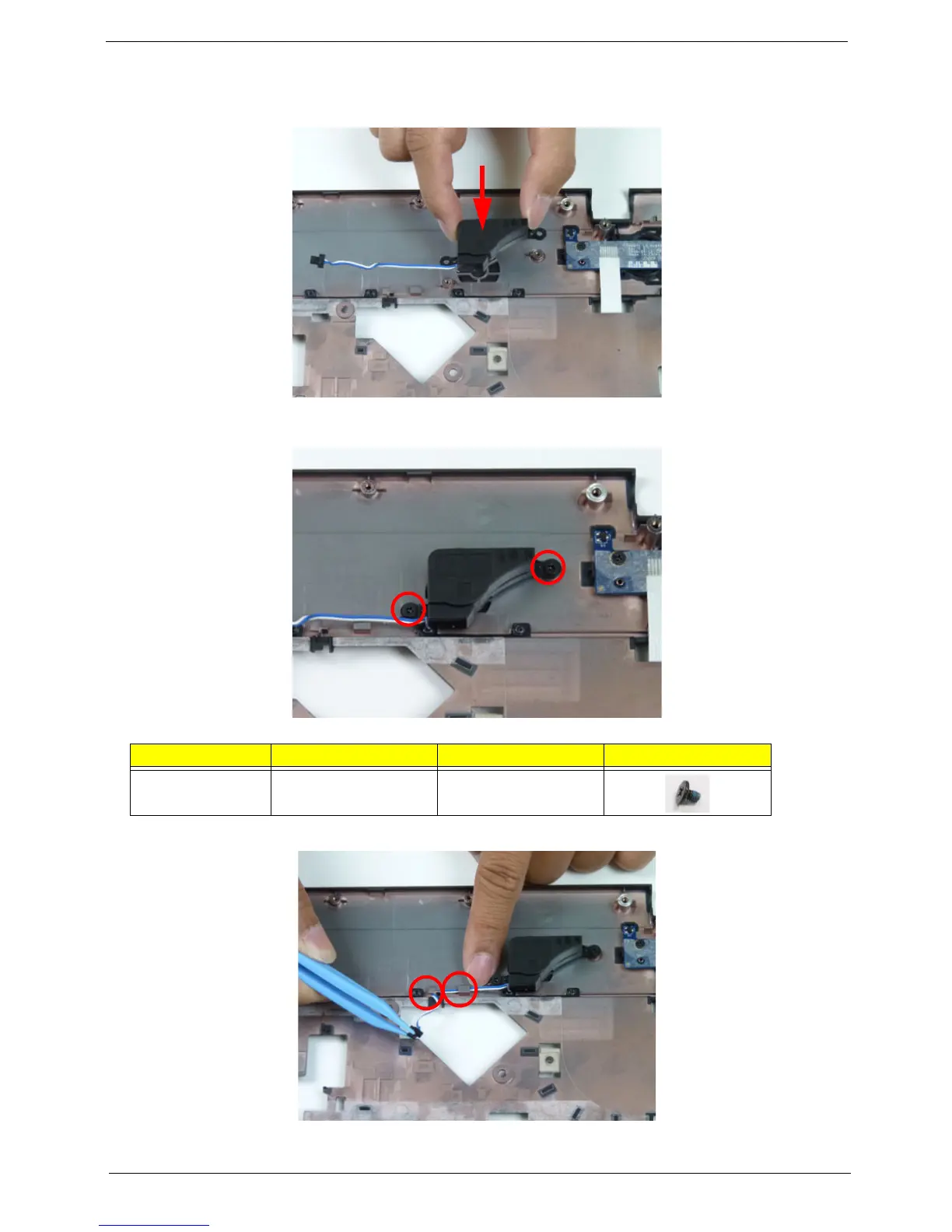

Replacing the Speaker Module
1. Place the speaker module onto the upper cover.
2. Replace two (2) screws to secure the speaker to the upper cover.
3. Place the speaker module cable into the cable guides as shown.
Step Size Quantity Screw Type
Upper Cover M2*3 2
