10

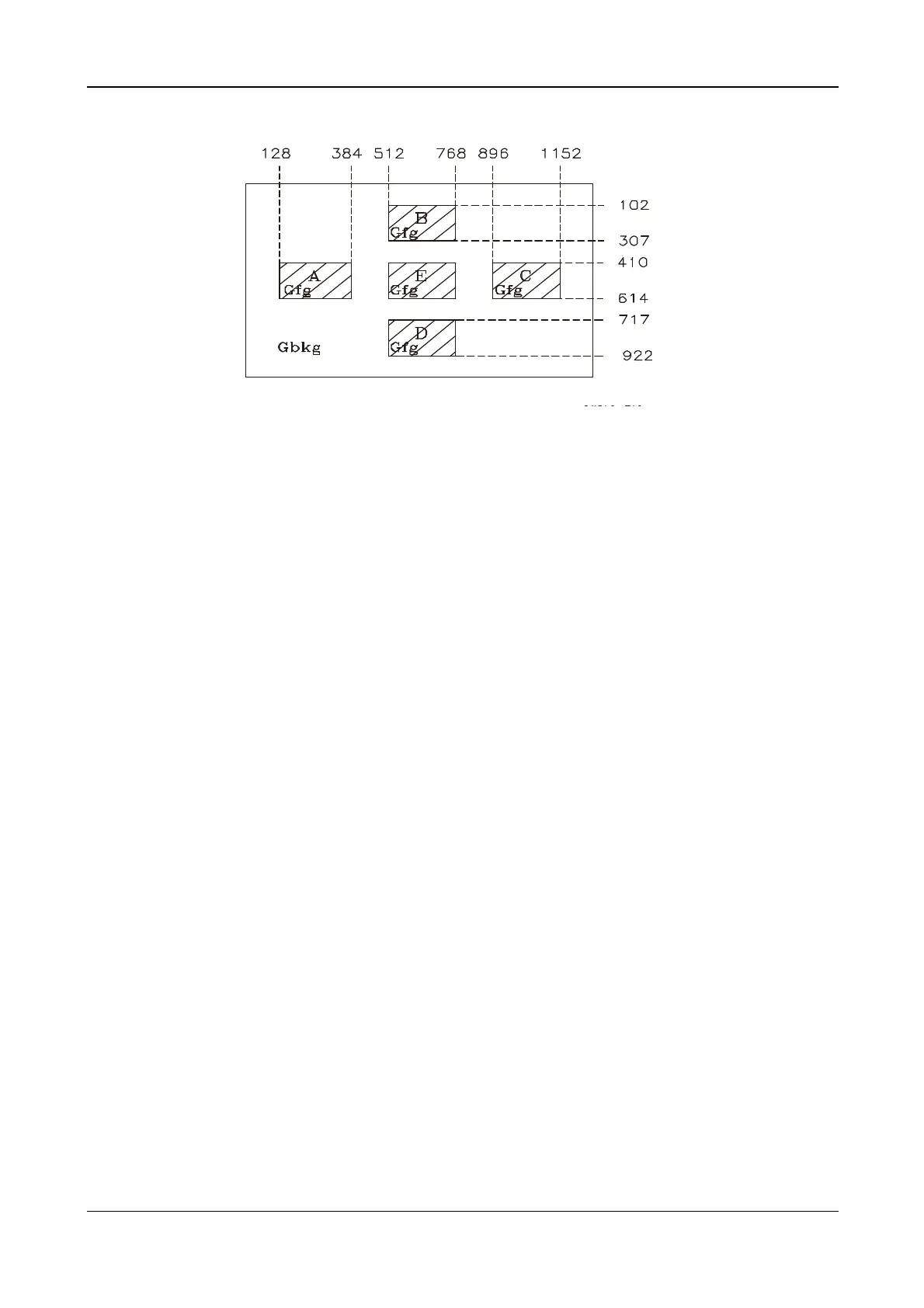

Note 8) Definition of Crosstalk (Refer to the VESA STD)
The calculation for shadowing is made from the 2 luminance measurements Gbkg and Lsh, as
follows:
Lmax -Lmin
C
T
= x100 %
Lmin
Where Lmax is the larger value of Gbkg or Lsh , and Lmin is the smaller of the two.
♦ To determine background and foreground levels (colors),first set the background to any gray
scale or color level suitable for shadowing determination.(Note that it may take several
iterations of adjusting background level and box levels to determine the proper value for the
background .Next display the box levels to determine the proper value for the background
level. Look for shadowing in any direction from box E. Independently vary the gray level (or
color) of the background and box E until the worst case shadowing is observed. This defines
the background (Gbkg) and foreground (Gfg) levels to be maintained for the remainder of the
test.
♦ One point only (the target) will be measured. To determine that point proceed as follows
Using the background and foreground gray levels of step1 (Gbkg and Gfg). Turn on each box
at a time. Look for the case with the worst shadowing. The box causing the worst case is the
shadowing source, or Bsrc. Use Bsrc and the box opposite from it that lies directly in the
shadow path. That is the target box, or Btgt. Note that box Eight be either Bsrc or Btgt,
depending on the shadowing conditions, but typically Bsrc and Btgt will be a pair of
opposite boxes, A&C or B&D. Btgt will only be displayed for aligning the LMD. It will be
turned off for the actual measurement.
♦ The target box point (Btgt) will be measured with the source box (Bsrc) turned on then off.
(Btgt is for alignment purpose only) Display the background only at level Gbkg. Display Btgt
determined in step 2 above. Using the correct distance, angle, and measurement aperture,
align the LMD to the center of the Btgt. Turn off Btgt. With Gbkg set to its proper level,
measure the luminance (or color). Next,turn on the source box Bsrc. Again measure at the
center point of Btgt (without Btgt present.). In this case the LMD will be measuring the
shadowing level, Lsh.
2.4 Input Signals
2.4.1 Video input
