40
8.7 Plastic Material
Front Bezel ABS 94HB, 94V-0
Back Cover ABS 94HB, 94V-0
The Others ABS 94HB
TCO’ 99(Optional)
Front Bezel PC + ABS 94 - V0
BACK COVER PC + ABS 94 – V0
The others ABS 94 HB

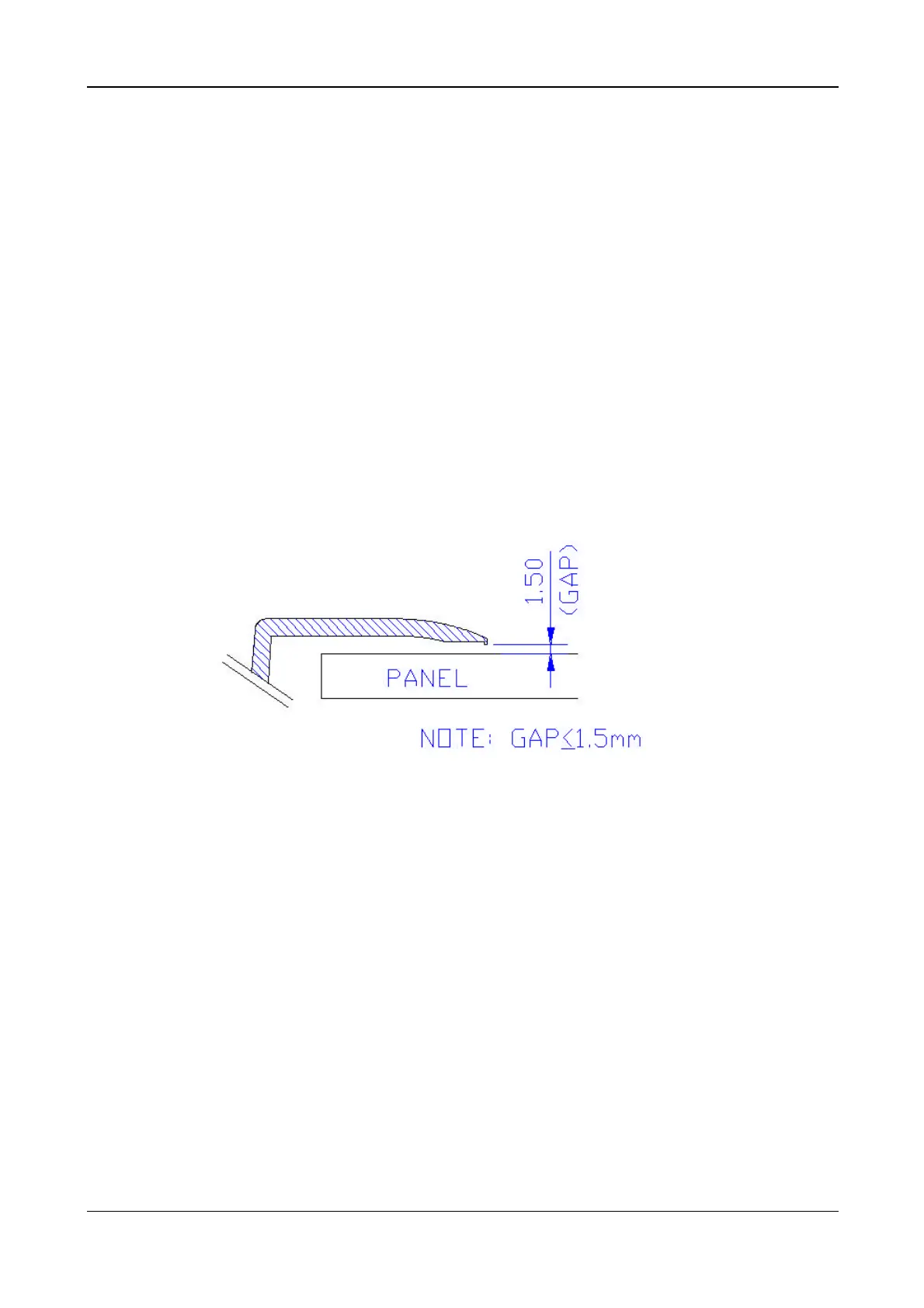

8.8 GAP Spec.
Gap between panel with bezel is 0 mm < gap < 1.5 mm
9. Power Line Transient Test (IEC 61000-4-4 Fast
Transients/Burst)
TEST CONDITIONS & PROCEDURE: (Follow IEC 61000-4-4)
Test Condition :
The condition is base on operating with 50Ω load.
9.1 Peak Voltage:
2 KV (applies the Level 3 typical Industrial Environment” of IEC
61000-4-4)
9.2 Polarity : + / -
9.3 Repetition Frequency of the impulse : 5 KHz.
