Chapter 1 9

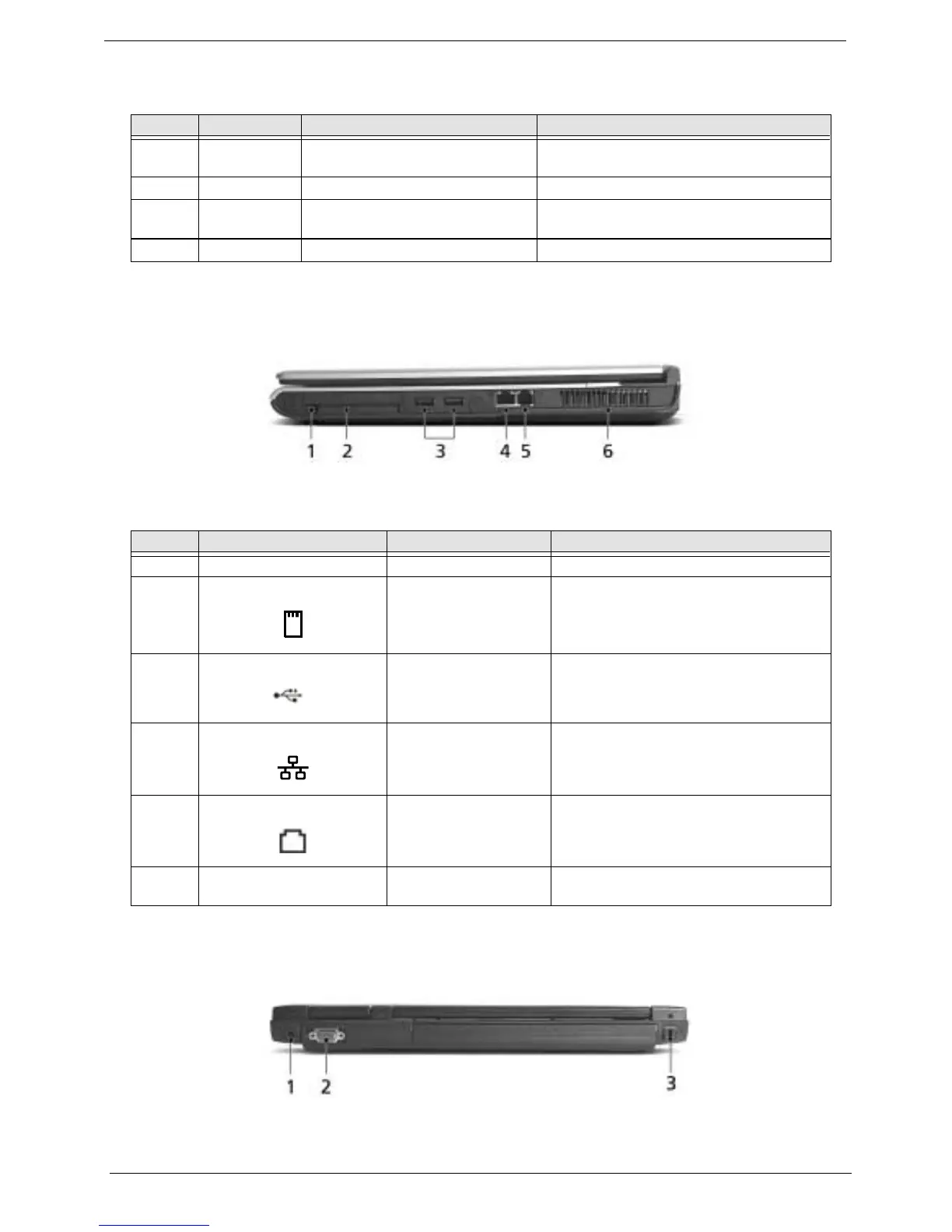

Right view
Rear view
# Icon Item/ Port Description
1 Optical drive Internal optical drive; accepts CDs or DVDs
depending on the optical drive type.
2 LED indicator Lights up when the optical drive is active.
3 Emergency eject hole Ejects the optical drive tray when the computer is
turned off.
4 Optical drive eject button Ejects the optical drive tray from the drive.
# Icon Item/ Port Description
1 PC Card slot eject button Ejects the PC Card from the slot
2 PC card slot Accepts one Type II CardBus PC Card.
3 USB 2.0 port Connects to Universal Serial Bus (USB) 2.0
devices (e.g., USB mouse, USB camera).
4 Network jack Connects to an Ethernet 10/100 based
network.
5 Modem jack Connects to a phone line.
6 Ventilation slots Enable the computer to stay cool, even after
prolonged use.
