Acer Aspire 1640Z Series User Manual

Chapter 3 50

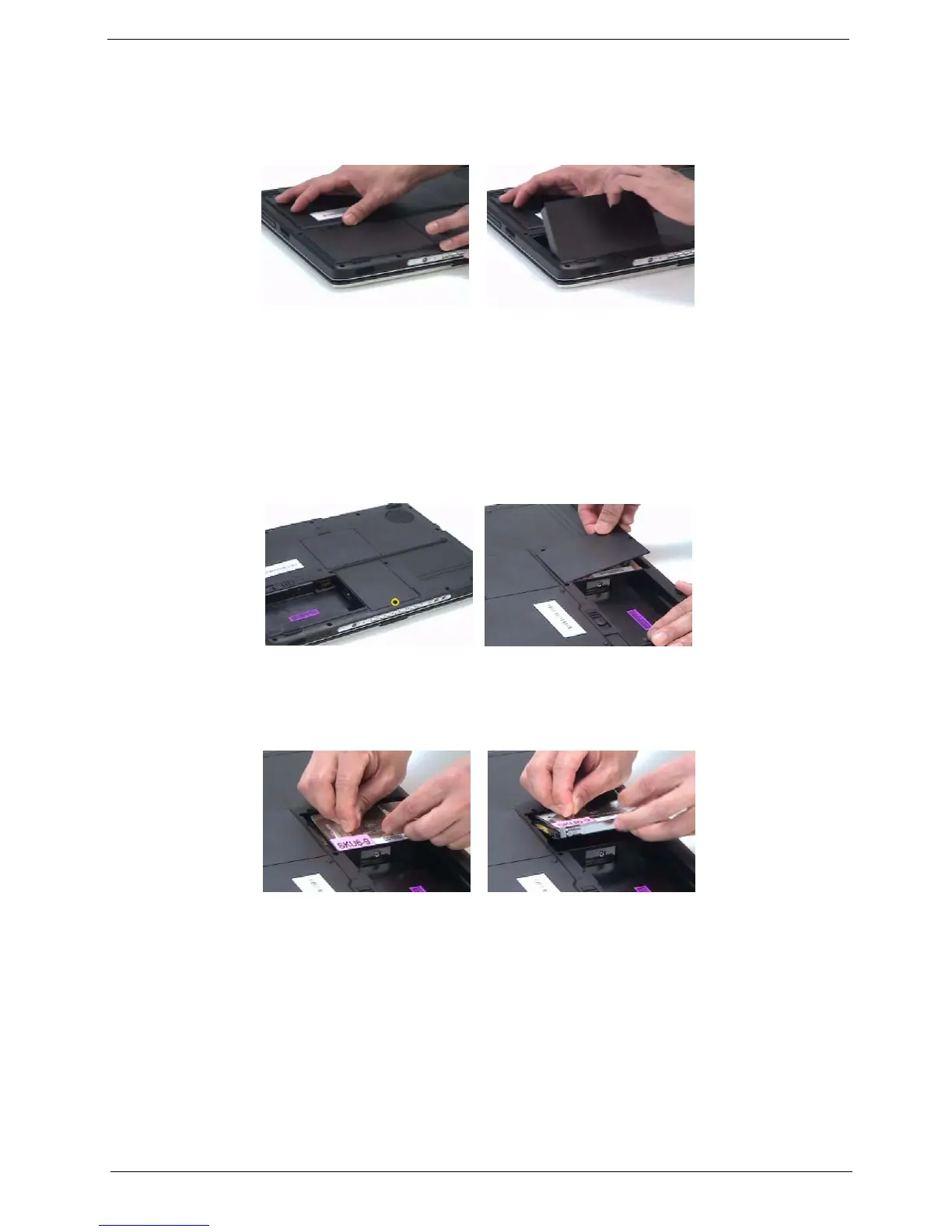

Removing the Battery
1. Unlatch the battery latch then remove the battery.
Removing the Hard Disc Drive Module
1. See “Removing the Battery” on page 50.
2. Remove the screw securing the hard disk drive (HDD) cover.
3. Then remove the HDD cover.
4. Pull the HDD module backwards as shown.
5. Remove the HDD module.
Disassembling the Hard Disc Drive Module
1. Remove two screw securing the HDD bracket.
2. Remove the other two screw on the other side.
3. Take out the HDD from the HDD bracket.
