Acer Aspire 1700 Series User Manual

50 Chapter 3

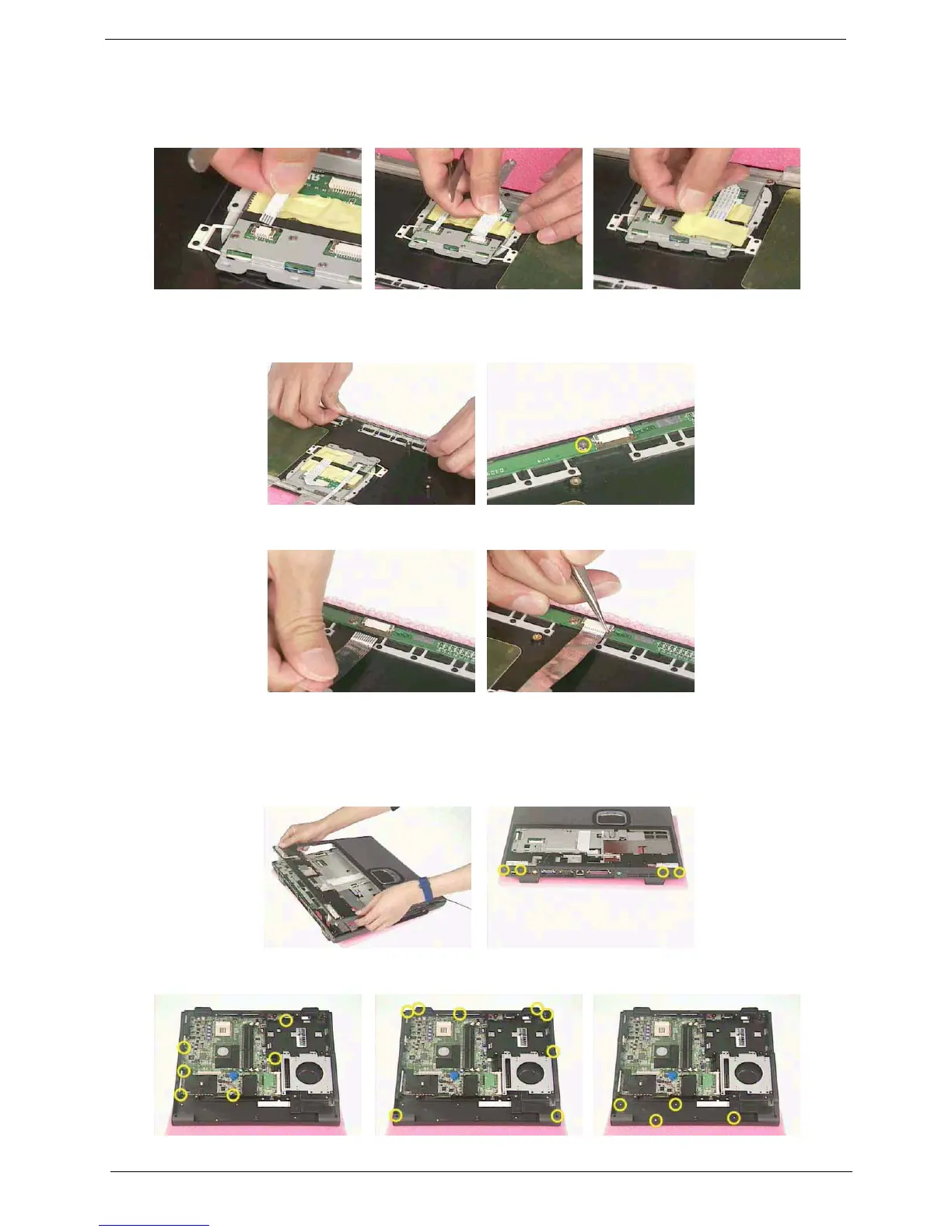

Reconnect the Audio DJ board
1. Reconnect the ribbon cable and the other.
2. Use another tape to secure.
3. Place the Audio DJ board back to position.
4. Secure the screw.
5. Reconnect the Audio DJ cable and the reconnect the other side.
Place the system cover back to position
1. Place the system cover back to position.
2. Secure the four screws on the rear panel.
3. Secure the group of six, the group of eight and the group of four screws as shown here.
justmanuals.com

Acer Aspire 1700 Series Specifications

General

Operating System	Windows XP Home/Professional
Processor	Intel Pentium 4
RAM	Up to 1GB DDR SDRAM
Storage	40GB to 60GB HDD
Optical Drive	DVD-ROM, CD-RW/DVD-ROM combo, or DVD-Dual drive
Ports	4x USB 2.0, 1x VGA, 1x S-Video
Networking	56K Modem, 10/100 Ethernet, Optional 802.11b/g Wireless LAN
