Machine Maintenance Procedures 3-39
Fingerprint Scanner Removal 0
Prerequisite:
Upper Cover Removal

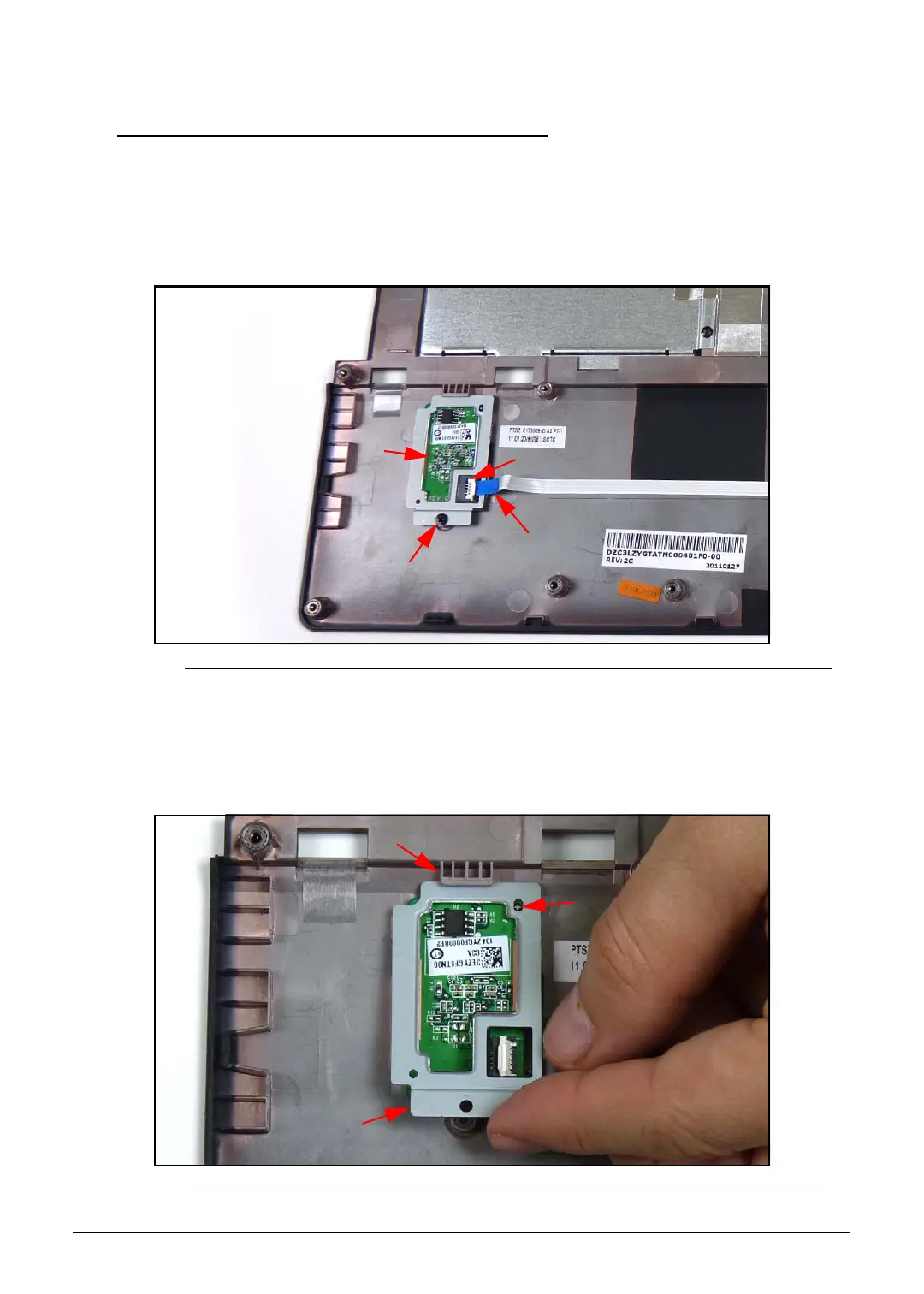

1. Locate fingerprint scanner board (A) on bottom side of upper cover. (Figure 3-43)
Figure 3-43. Fingerprint Scanner
2. Disconnect fingerprint scanner FFC (B) from fingerprint scanner connector (C).
3. Remove screw (D) securing bracket to upper cover.
4. Lift and remove bracket (E) from latch (F) and guidepin (G). (Figure 3-44)
Figure 3-44. Removing Fingerprint Scanner Bracket
To Next Page
