Machine Maintenance Procedures 3-57
Speaker Module Installation 0
1. Align and install upper speaker assembly (D) to guidepin (G) on lower cover. (Figure 3-61)
2. Install upper speaker assembly cable (F) to guides.
3. Install and secure screws (E) to lower cover.
4. Install bottom speaker assembly (A) to lower cover. (Figure 3-60)
5. Install bottom speaker assembly cable (C) to guides.
6. Install and secure screw (B) to lower cover.
7. Install mainboard.

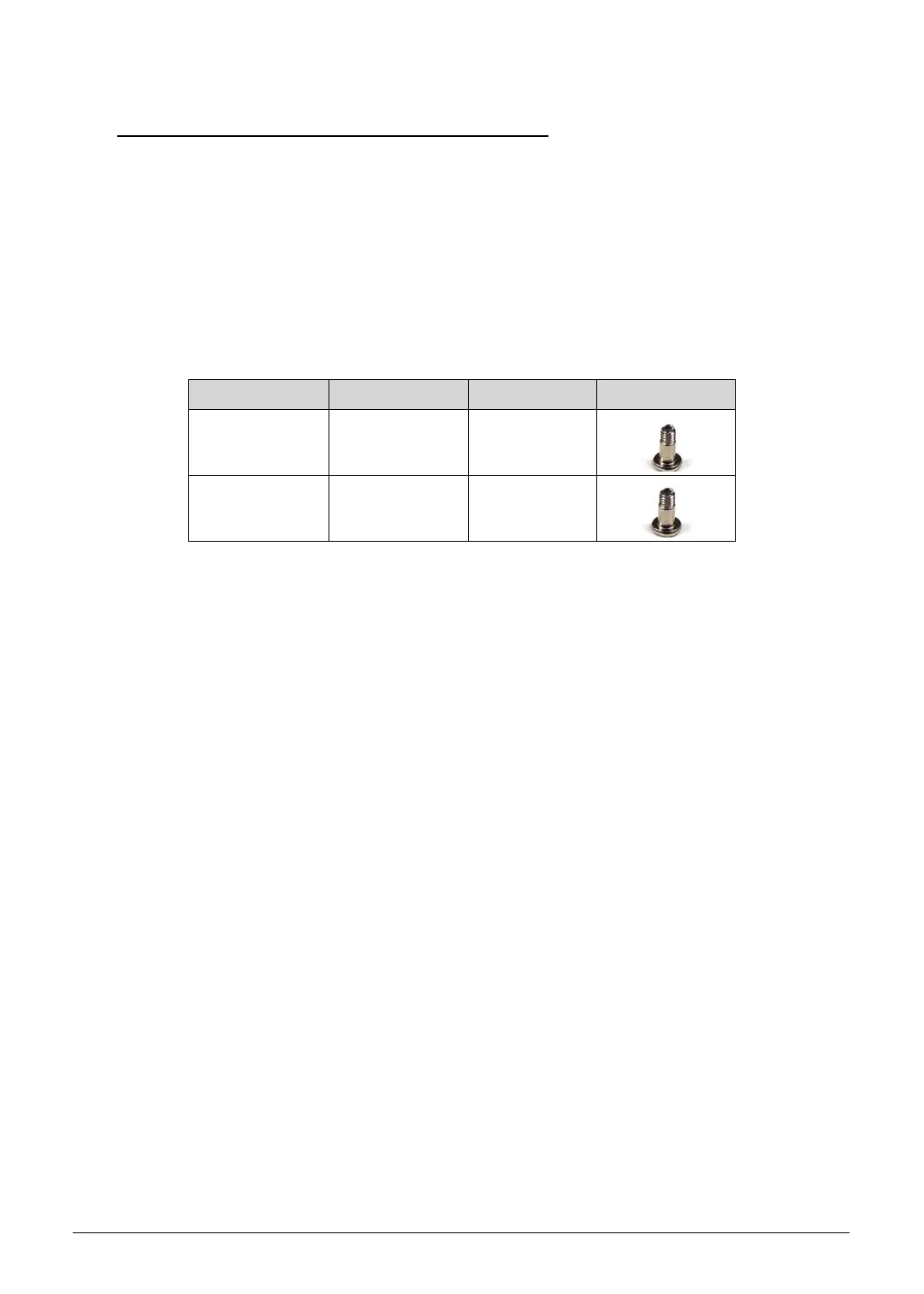

ID Size Quantity Screw Type
B M2.5x6.2 Ni 1
E M2.5x6.2 Ni 5
