Removing the Mainboard
1. See “Removing the Side Panel” on page 28.
2. See “Removing the Front Bezel” on page 29.
3. See “Removing the Heat Sink Fan Assembly” on page 30.
4. See “Removing the Processor” on page 32.
5. See “Removing the Optical Drive” on page 34.
6. See “Removing the Hard Disk Drive” on page 37.
7. See “Removing the Memory Modules” on page 42.
8. See “Removing the VGA Card (X1700 model)” on page 43.
9. See “Removing the TV Tuner Card (X1700 model)” on page 44.
10. See “Removing the Front I/O and Card Reader Boards” on page 45.

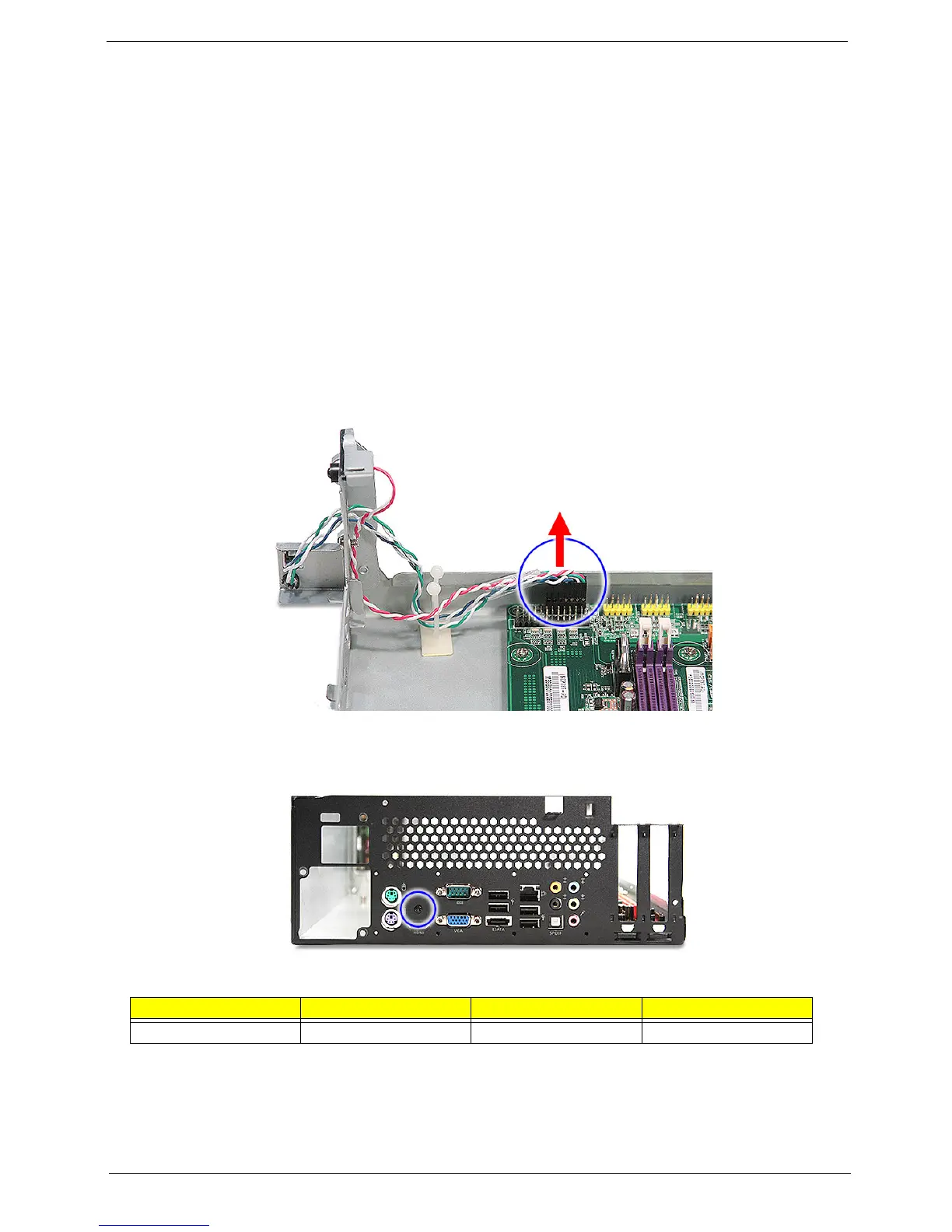

11. Disconnect the LED cable from the mainboard.
12. Remove the screw (B) on the rear panel.
Screw (Quantity) Color Torque Part No.
M3xL5 (1) Black 5.5 to 6.5 kgf-cm 86.1A324.5R0
