Removing the LAN Activity and HDD LED Cables (X270 model)
1. See “Removing the Side Panel” on page 28.
2. See “Removing the Front Bezel” on page 29.
3. See “Removing the Heat Sink Fan Assembly” on page 30.
4. See “Removing the Processor” on page 32.
5. See “Removing the Optical Drive” on page 34.
6. See “Removing the Hard Disk Drive” on page 37.
7. See “Removing the Memory Modules” on page 42.
8. See “Removing the VGA Card (X1700 model)” on page 43.
9. See “Removing the TV Tuner Card (X1700 model)” on page 44.
10. See “Removing the Front I/O and Card Reader Boards” on page 45.
11. See “Removing the Mainboard” on page 49.

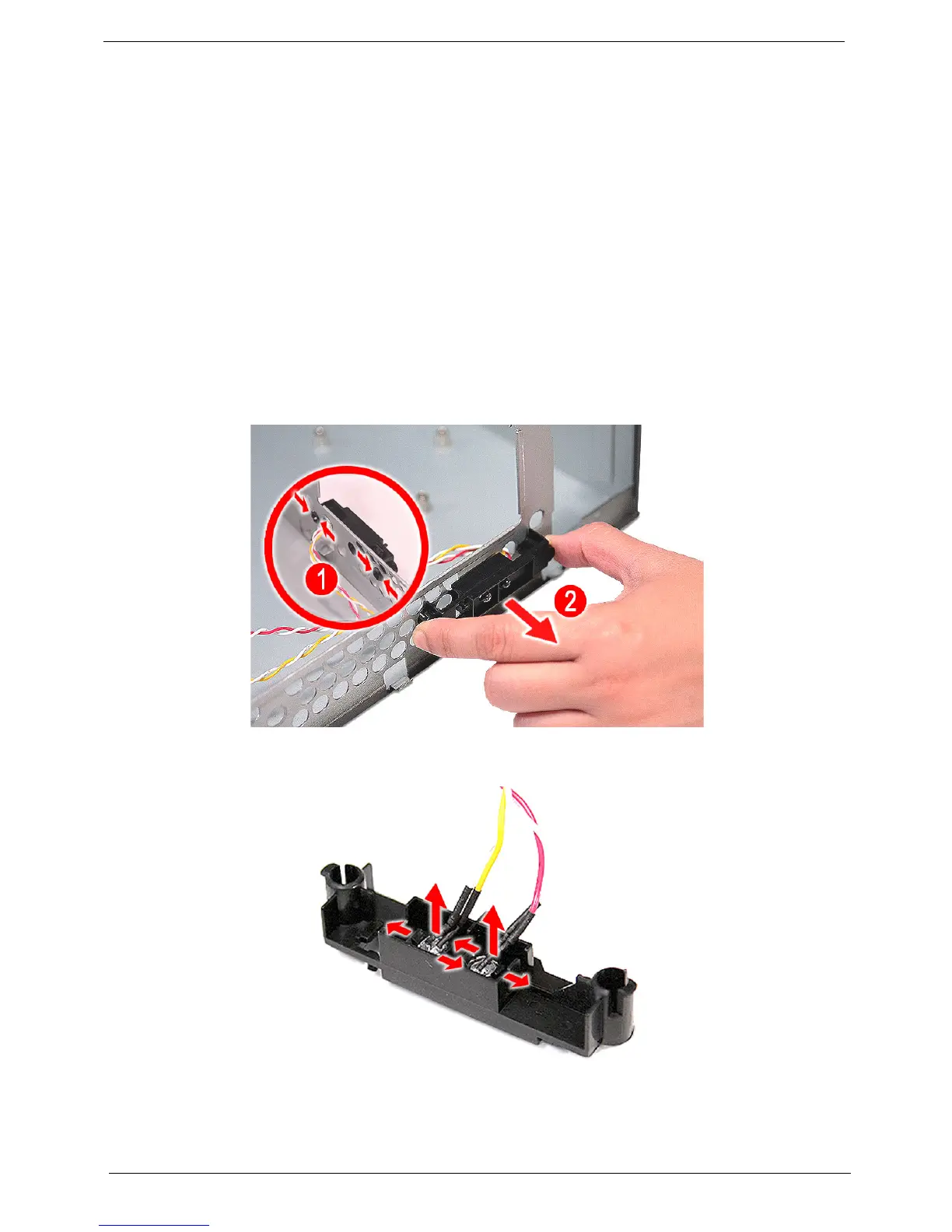

12. Release the two locking tabs (1) that secure the cable bracket to the chassis and pull out the bracket (2).
c. Release the locking tabs and gently pull the LAN activity and HDD LED cable from the bracket.
