64 Chapter 6

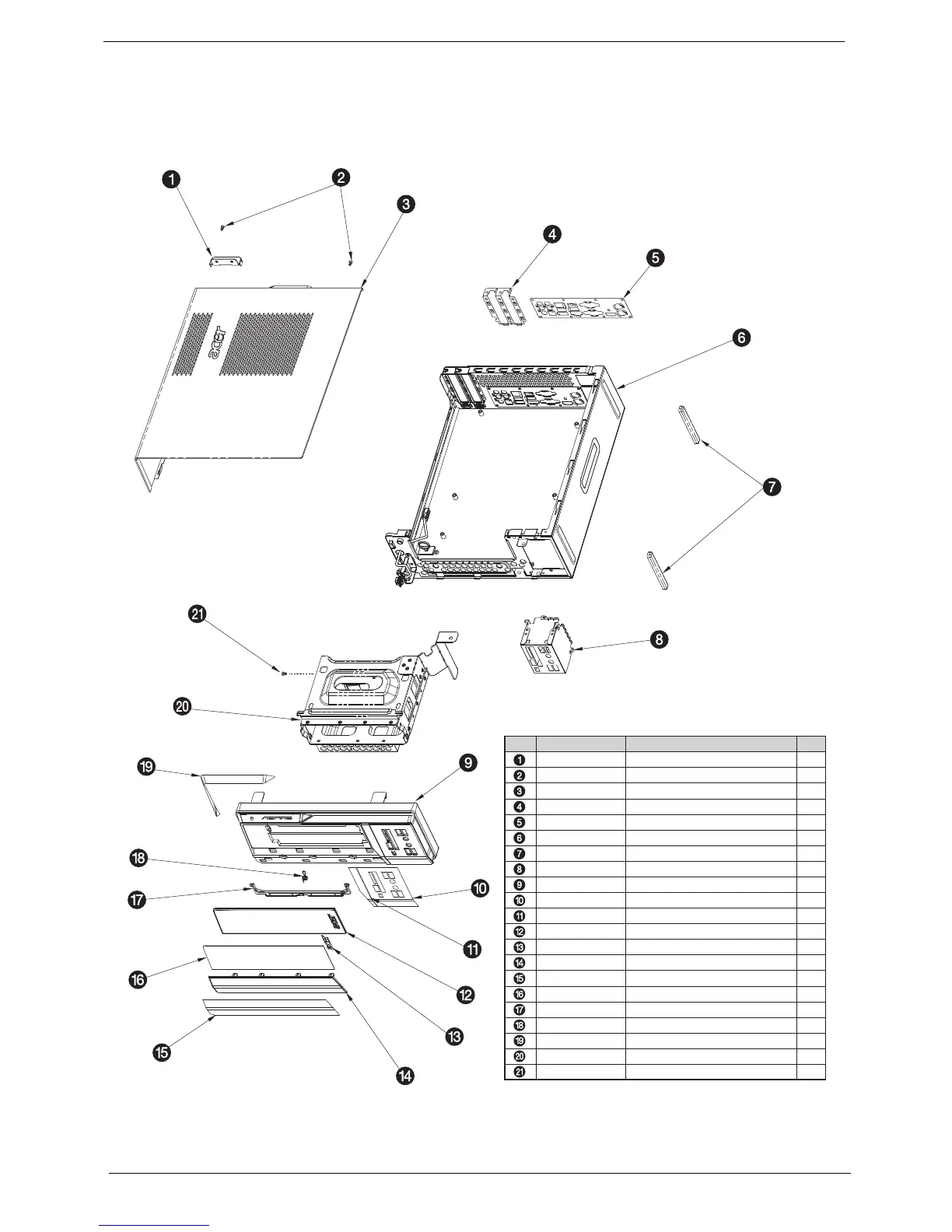

Exploded Diagram
X1700
60.3V806.001
ASSY BKT ODD-HDD
1
ITEM PART NO. PART NAME
QTY
60.3V804.001
ASSY LCASE-ASM
1
86.00J07.B60 SCREW #6-32 L5 PAN NI
2
86.1A324.5R0 ODD-HDD SCREW 1
33.3V001.001 PCI COVER 1
60.3V411.001
ASSY BKT-UCASE
1
34.3V002.001
PCI SHIELDING
1
34.3V001.001
REAR IO SHIELDING
1
47.3V002.001
RUBBER 80X10X5.5 2
33.3V002.001
FRONT IO BKT
1
34.3V005.001
acer LOGO
60.3V808.001
ASSY FRONT BEZEL
42.3V808.001
BEZEL COVER PROTECTFILM
42.3V811.001
BEZEL PROTECTFILM
42.3V814.001
DOOR ARM
42.3V806.001
FRONT BEZEL COVER
1
1
1
1
1
1
42.3V805.001
ODD DOOR
1
42.3V810.001
ODD DOOR PROTECTFILM
1
34.3V004.001
ODD DOOR SPRING
1
42.3V809.001
ODD KNOB PROTECTFILM
1
42.3V807.001
POWER BUTTOM PROTECTFILM
1

Acer ASPIRE ASPIRE X1700 Specifications

General

Category	Desktop
Operating System	Windows Vista Home Premium
Memory	4GB DDR2
Graphics	Intel GMA 3100
Optical Drive	DVD-RW
Audio	High Definition Audio
Networking	Gigabit Ethernet
Ports	USB 2.0, VGA, Ethernet, Audio I/O
Processor	Intel Core 2 Quad Q6600 (2.4GHz)
