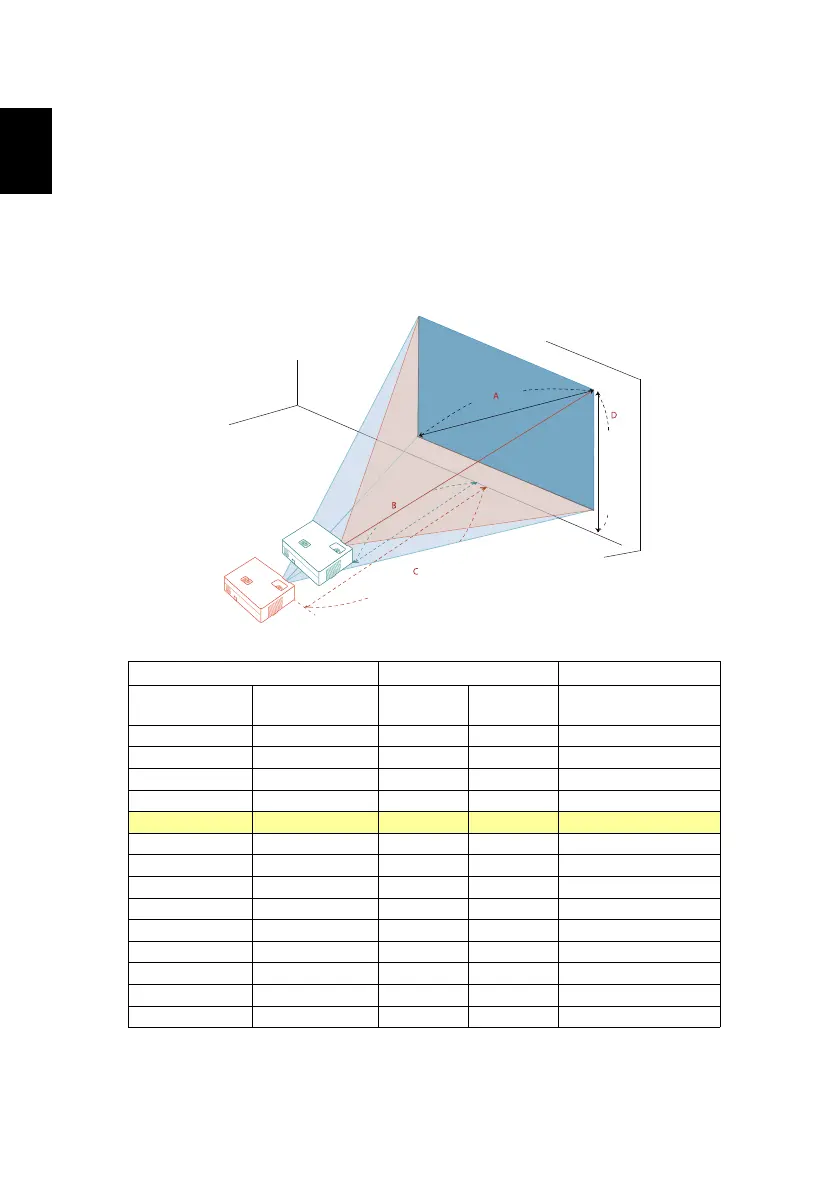

How to Get a Preferred Image Size by Adjusting
Distance and Zoom
The table below shows how to achieve a desired image size by adjusting either
the position or the zoom ring.
• PD1330W/LK-W300/EW330/K731/FD-230/VD5310
To obtain an image size of 70", set the projector at a distance between 2.1 m
and 2.5 m from the screen and adjust the zoom level accordingly.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
< A >
W (cm) x H (cm)
Max zoom
< B >
Min zoom
< C >
From base to top of
image < D >
30 65 x 40 1.1 36
40 86 x 54 1.2 1.4 48
50 108 x 67 1.5 1.8 60
60 129 x 81 1.8 2.1 72
70 151 x 94 2.1 2.5 84
80 172 x 108 2.4 2.8 96
90 194 x 121 2.7 3.2 108
100 215 x 135 3.0 3.5 120
120 258 x 162 3.5 4.2 145
150 323 x 202 4.4 5.3 181
180 388 x 242 5.3 6.4 217
200 431 x 269 5.9 7.1 241
250 538 x 337 7.4 8.8 301
300 646 x 404 8.9 361
Zoom Ratio: 1.2 x
Desired distance
Height:
84 cm
From
base to
top of
70"
Desired
image size
2.1 m
2.5 m
