Chapter2 16

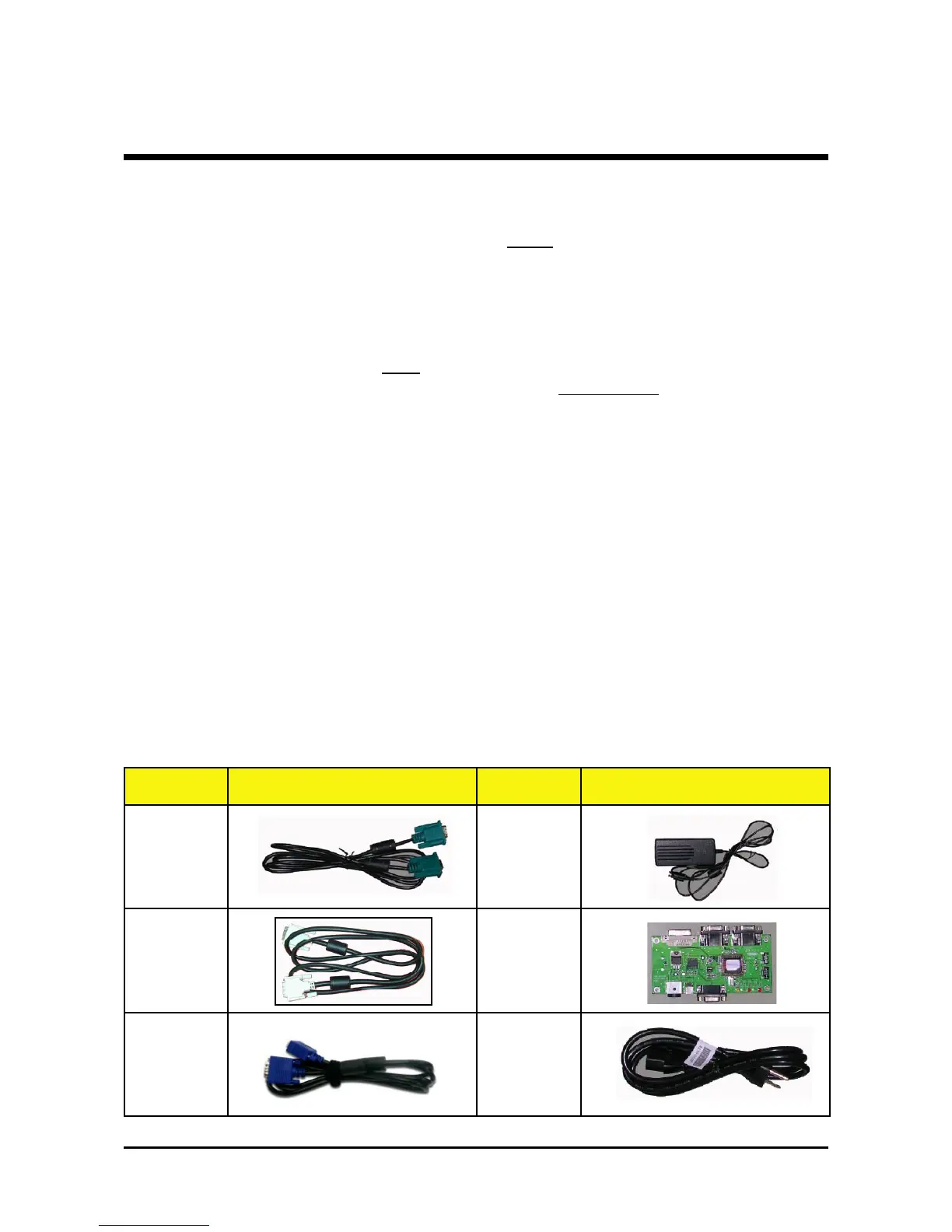

Item Photo Item Photo
RS-232
Cable
(F - M)
Power
Adapter for
Fixture
DVI Cable
Generic
Fixture
VGA Cable Power Cord
EDID Upgrade
Equipment Needed
Software:
- EDID Software (Generic V0.51)
- EDID Table (*.ini) -- PD726 or PH730
Hardware:
- V3 Fixture for EDID Key-in
(Fixture: JP3 must be closed)
EDID Introduction
Extended Display Identification Data is a VESA standard data format that contains
basic information about a display device and its capabilities, including vendor information,
maximum image size, color characteristics, factory pre-set timings, frequency range limits,
and character strings for the model name and serial number.
The information is stored in the display and is used to communicate with the system
through a Display Data Channel (DDC), which sites between the display device and the PC
graphics adapter. The system uses this information for configuration purposes, so the unit
and system can work together.
Note:
If a display device has digital input ports, like DVI or HDMI, but without EDID in its
main board, the display device will show no image while the input source is digital signal.
