39 Chapter 3
No Procedure Photo

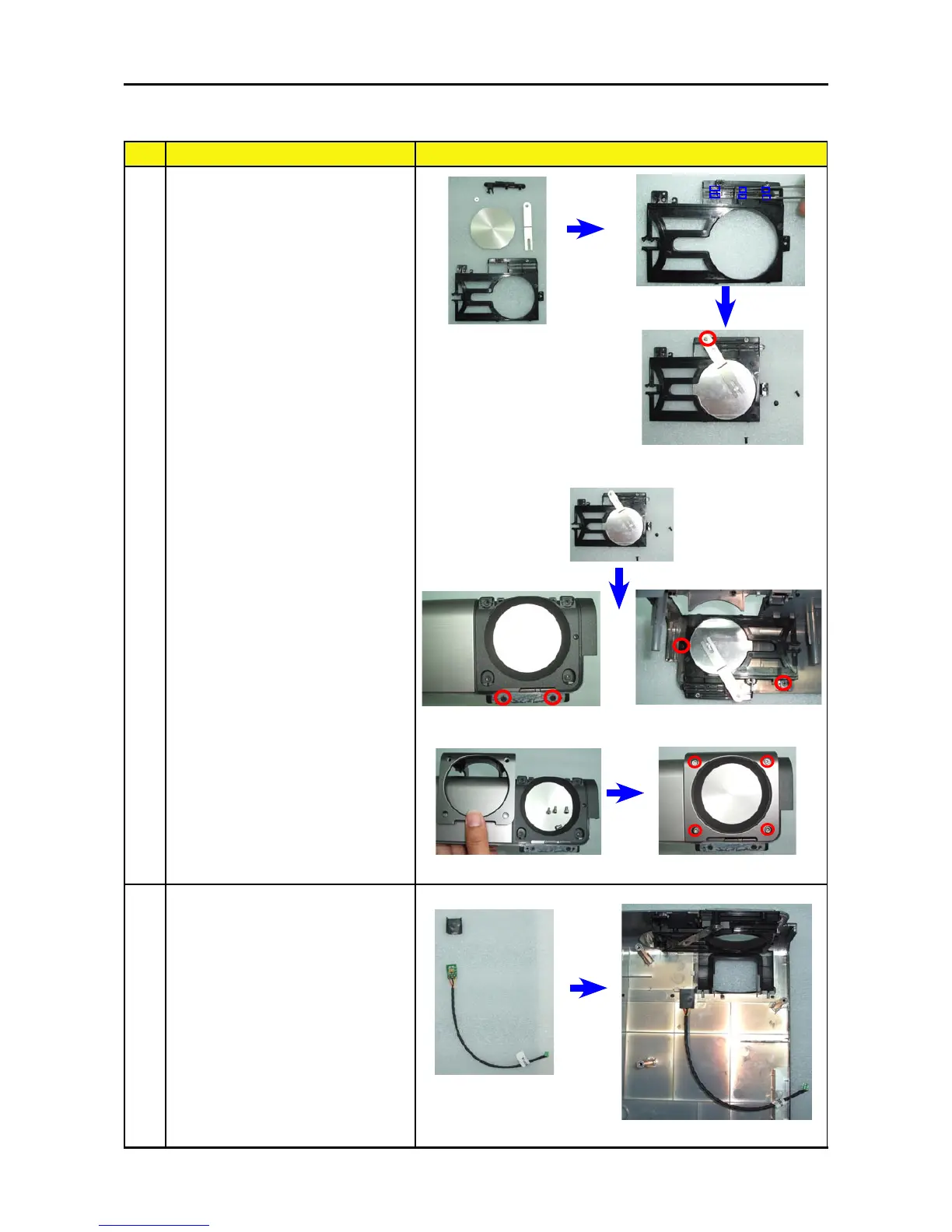

1 Assemble Assy Manual Lens
Cap Module:
(1) Fasten 6 tenons and screw
1 screw to assemble the Lens
Cap.
(2) Screw 2 screws in the
front & 2 screws in the back to
assemble the Lens Cap.
(3) Screw 4 screws to
assemble the Lens Cap
Module.
2 IR Receiver:
Put on the mylar to assemble
the IR Receiver directly.
7. Assemble Top Cover Module
To Next Page
