X1161/X1261/X1161A/X1161N/X110/H5360
Condential
6-3

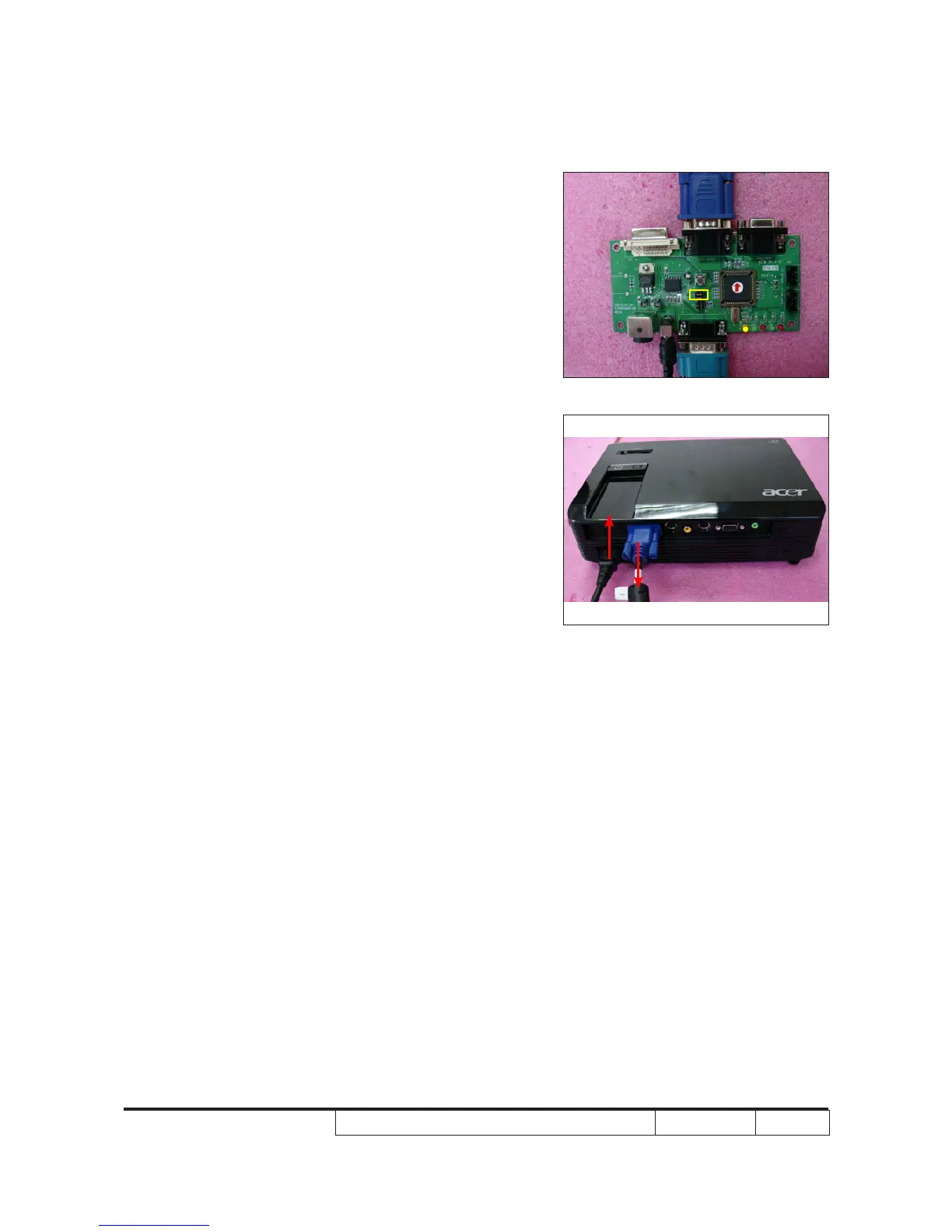

6-3 Setup Procedure (VGA)
1. Connect all ports
(1) Connect P1 of xture with COM Port of
PC/Laptop by RS232 Cable.
(2) Connect P3 of xture with VGA Port of
projector by VGA Cable.
(3) Plug Power Adapter to JP1 of xture.
(4) Plug Power Cord to projector.
Note: You must conrm that the JP3 is closed.
RS232 Cable
Adapter
VGA Cable
JP3
JP1
P1
P3
Power Port
VGA Port
