AEG Protect PV User Manual

2. Display
2.1. Display
Note:
Due to the advanced functionalities of the inverter, it may take up to 10 seconds before the
display becomes available after power up.
The integrated display on the inverter front gives the user access to all information about the
PV system and the inverter.
The display has two modes:
Normal The display is in use
Power saving After 10 min. of no display activity the back light of the display turns off to save power.
Re-activate the display by pressing any key
Overview of display buttons and functionality:

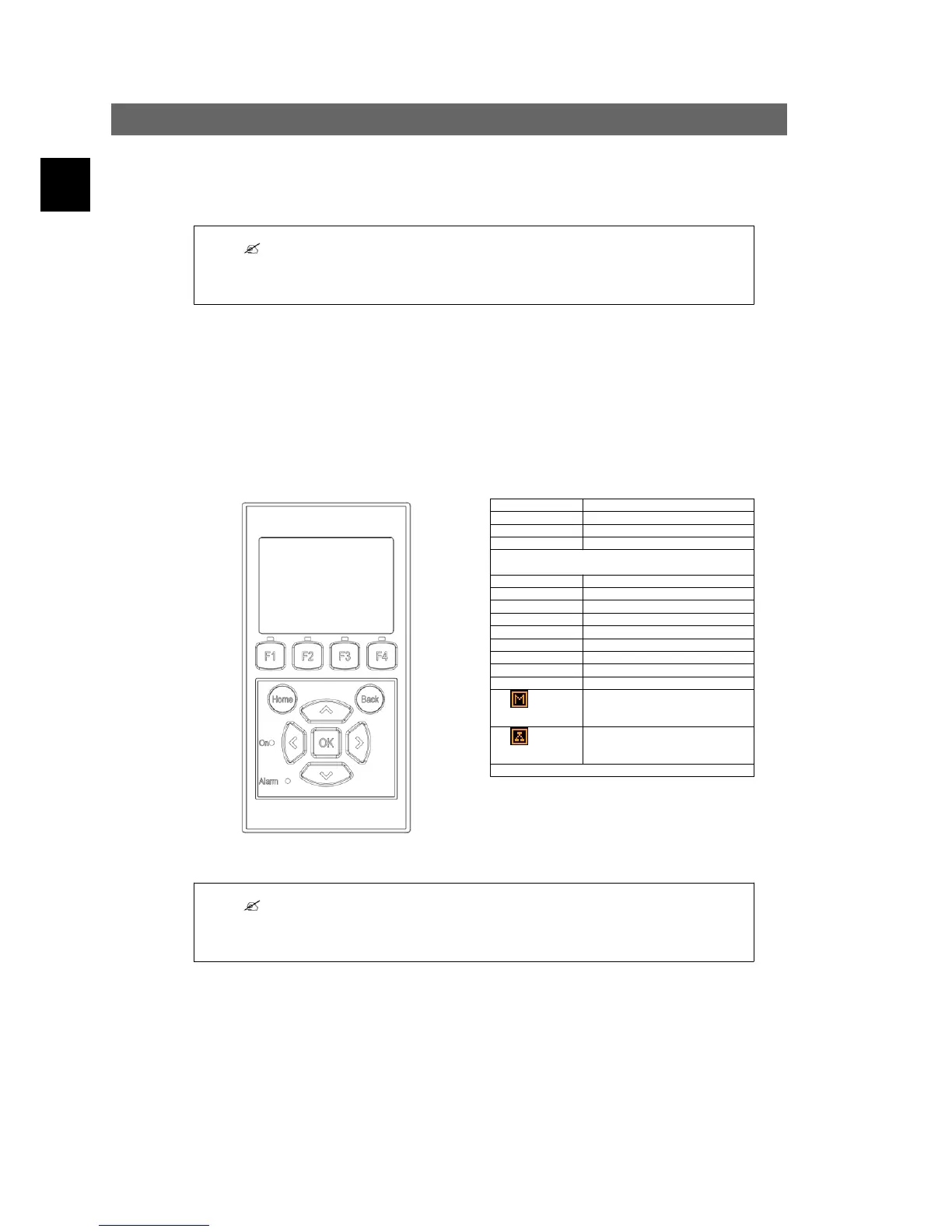

Illustration 2.1: Display
F1 View 1 / View 2 - Screen
F2 Status Menu
F3 Production Log Menu
F4 Setup Menu
* When an F-key is selected the LED above it will light
up.
Home Return to View Screen
OK Enter/select
Arrow up A step up/increase value
Arrow Down A step down/decrease value
Arrow Right Moves cursor right
Arrow Left Moves cursor left
Back Return/de-select
On - Green LED On/flashing = On grid/Connecting
Alarm - Red LED Flashing = Fail safe
The inverter is configured as mas-
ter. Icons can be found in the top
right corner.*
The inverter is connected to a mas-
ter. Icons can be found in the top
right corner.*
*) Protect PV easy only.
Note:
The contrast level of the display can be altered by pressing the arrow up/down button while
holding down the F1 button.
The menu structure is divided into four main sections:
View Presents a short list of information, read only.
Status Shows inverter parameter readings, read only.
Production Log Shows logged data.
Setup Shows configurable parameters, read/write.
See the following sections for more detailed information.
2. Display
4 8000038784_00_BAL_en / L00410565-01_02
