Agilent Technologies 54641A User Manual

2-12
Front-Panel Overview
To use analog channels to view a signal
To use analog channels to view a signal
• To configure the oscilloscope quickly, press the Autoscale key to display
the connect signal.
• To undo the effects of Autoscale, press the
Undo Autoscale softkey before
pressing any other key.
This is useful if you have unintentionally pressed the Autoscale key or do not
like the settings Autoscale has selected and want to return to your previous
settings.
• To set the instrument to the factory-default configuration, press the
Save/Recall key, then press the Default Setup softkey.
Example Connect the oscilloscope probes for channels 1 and 2 to the Probe Comp output
on the front panel of the instrument. Be sure to connect the probe ground leads
to the lug above the Probe Comp output. Set the instrument to the factory
default configuration by pressing the Save/Recall key, then the Default Setup
softkey. Then press the Autoscale key. You should see a display similar to the
following.

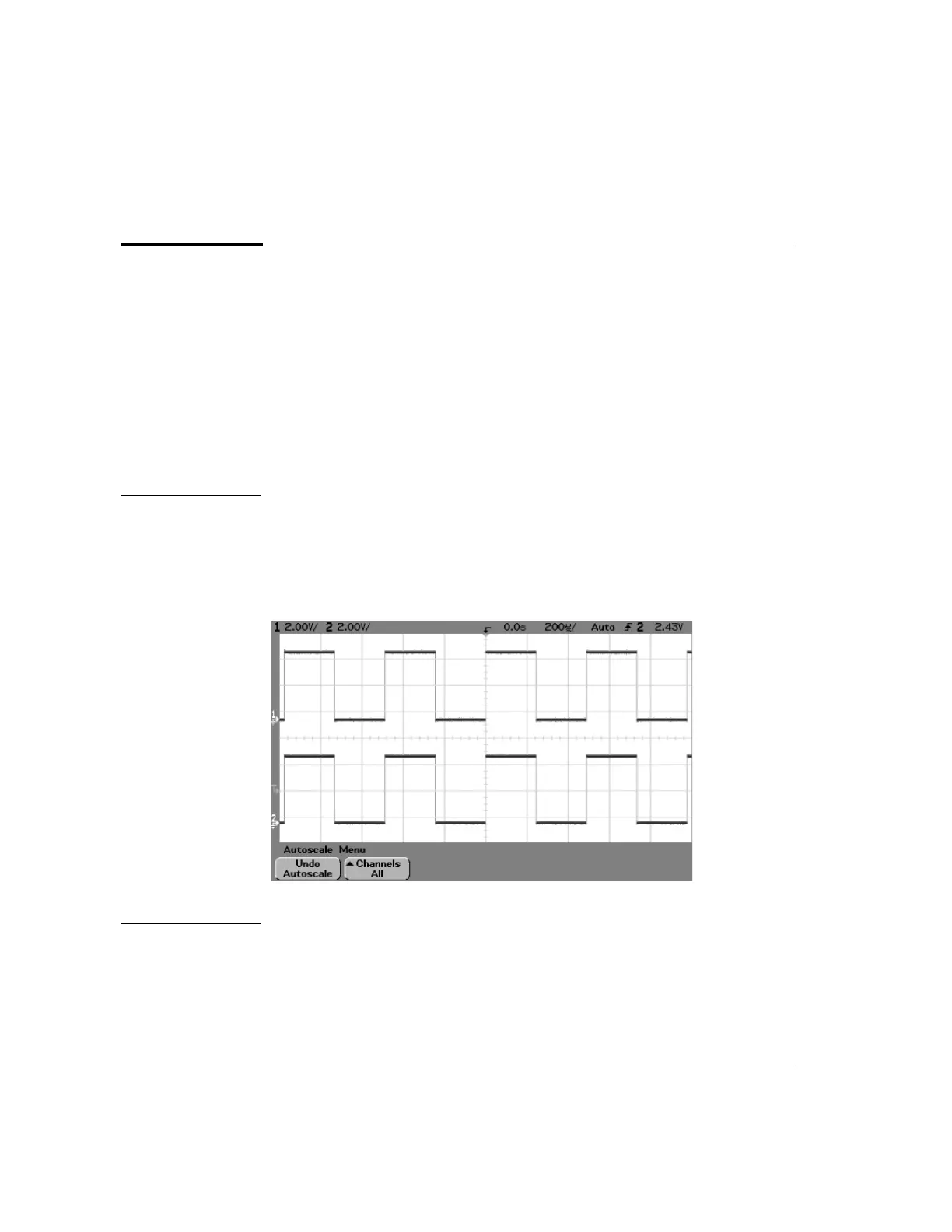

Autoscale with analog channels

Agilent Technologies 54641A Specifications

General

Type	Mixed Signal Oscilloscope
Bandwidth	100 MHz
Vertical Resolution	8 bits
Record Length	1 Mpts
Input Coupling	AC, DC, GND
Maximum Input Voltage	400 V (DC + peak AC)
Timebase Range	5 ns/div to 50 s/div
Interface	GPIB, RS-232
Memory Depth	1 Mpts
Input Impedance	1 MΩ
Trigger Modes	Edge, Pulse Width, Pattern, State
Power Requirements	100-240 VAC, 50-60 Hz
Channels	2 oscilloscope channels + 16 logic timing channels
