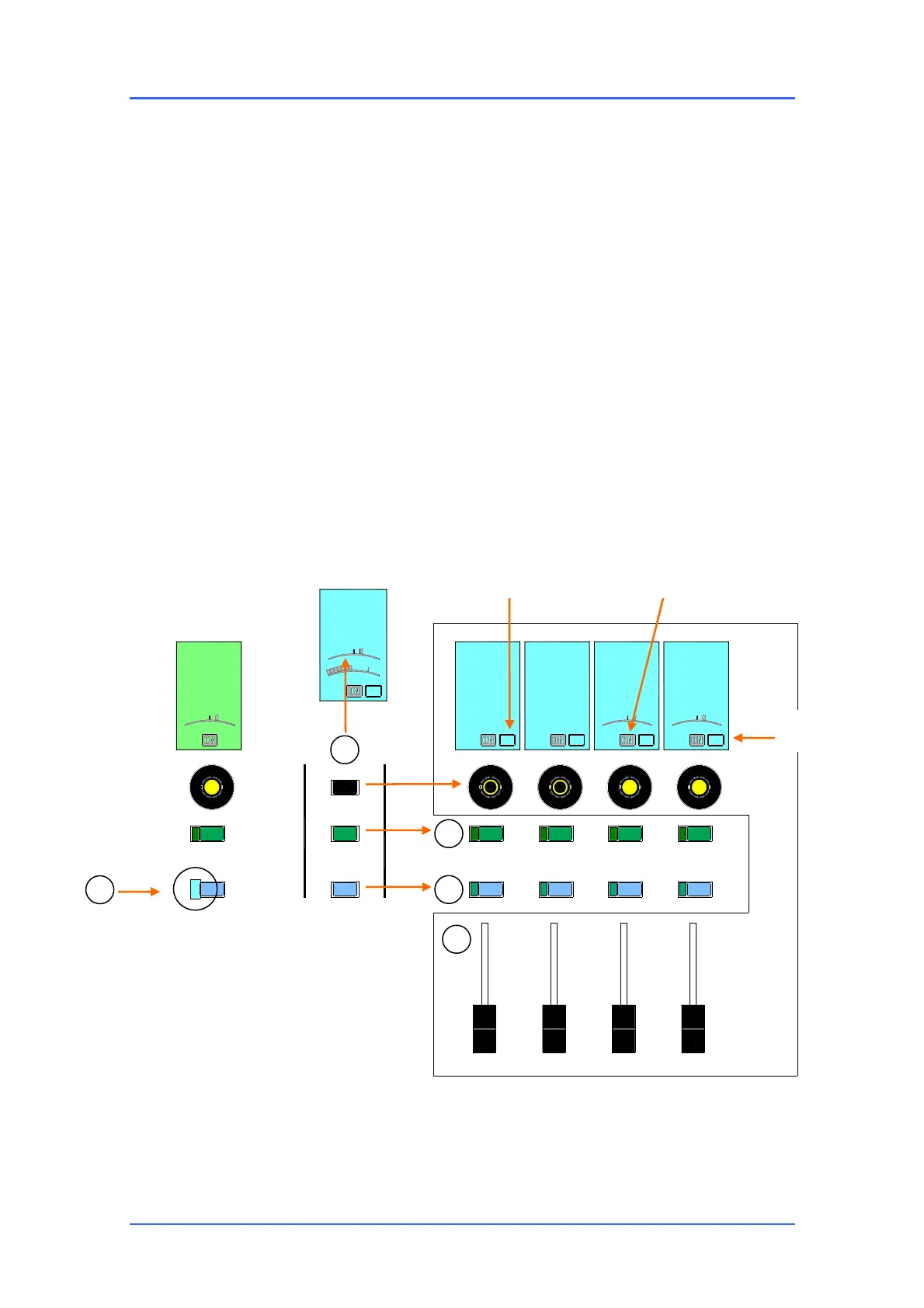

Using the Channel MIX key - View all sends from one channel.
1. Press MIX on an input channel strip. View the current sends and
assignments from that channel on the master strip LCDs and
faders/rotaries.
2. To assign to individual groups or sends, hold down the ASSIGN key
and then press master MIX keys to toggle them on or off. The master
strip LCDs display an ‘ON’ icon when the channel is assigned to it.
There is no ‘assign to all’ function.
3. To set individual sends pre or post-fade, hold down the PRE/POST
key and then press the related master SEL keys to toggle them pre or
post. The strip LCDs display a ‘PRE’ icon when set to pre-fade.
4. For aux, FX and matrix mixes, the faders or rotaries become the
sends depending on the setting of the ‘Send on Rotaries’ button in
the ROUTING screen with master strip SEL active. If a rotary send,
then they remain as master faders. For groups and DCAs (no send
levels), the faders and encoders remain unaffected.
5. For stereo aux and matrix sends, the rotaries become the PAN
controls. If a stereo send is configured for rotary levels then the
second (PAN) function as accessed by holding down the ROTARY
SHIFT key while turning the encoder. In this case the strip LCD
displays two dials.
