Patching the Outputs
Press the OUTPUTS key below the TouchScreen to access the output routing patch bays. These virtual
patch panels display the physical and digital audio network output sockets recognised by the system and
let you route any signal to any output.
MixRack The tab displays the user name
assigned to the MixRack. The system identifies the
outputs available at the MixRack and displays a
physical socket view. Touch a socket to view its
current assignment. Choose a source from the
drop down menu, highlight the Channel Number
box and use the encoder to scroll through the
channel numbers. Touch Apply to confirm.
Work with a Single or a Range of sockets. For a
range, touch the first then the last. Enter the
Source type, Start and End channel numbers.
Touch Apply to confirm.
Surface The tab displays the user name
assigned to the Surface. The system identifies the
outputs available at the Surface. Choose a source
from the drop down menu, highlight the Channel
Number box and use the encoder to scroll through
the channel numbers. Touch Apply to confirm.
Port A This tab is available if a suitable iLive
audio network option is fitted. You can assign
outputs to channels 33 to 62. Channels 1 to 32 are
reserved to transport audio from the MixRack to the
Surface audio module slots A to D. Channels 63,
64 transport the PAFL monitor signal from the
MixRack to the Surface.
Port B This tab is available if a network option
card is fitted to Port B. You can assign outputs to
Port B channels 1 to 64. Select Single or Range
assignment.

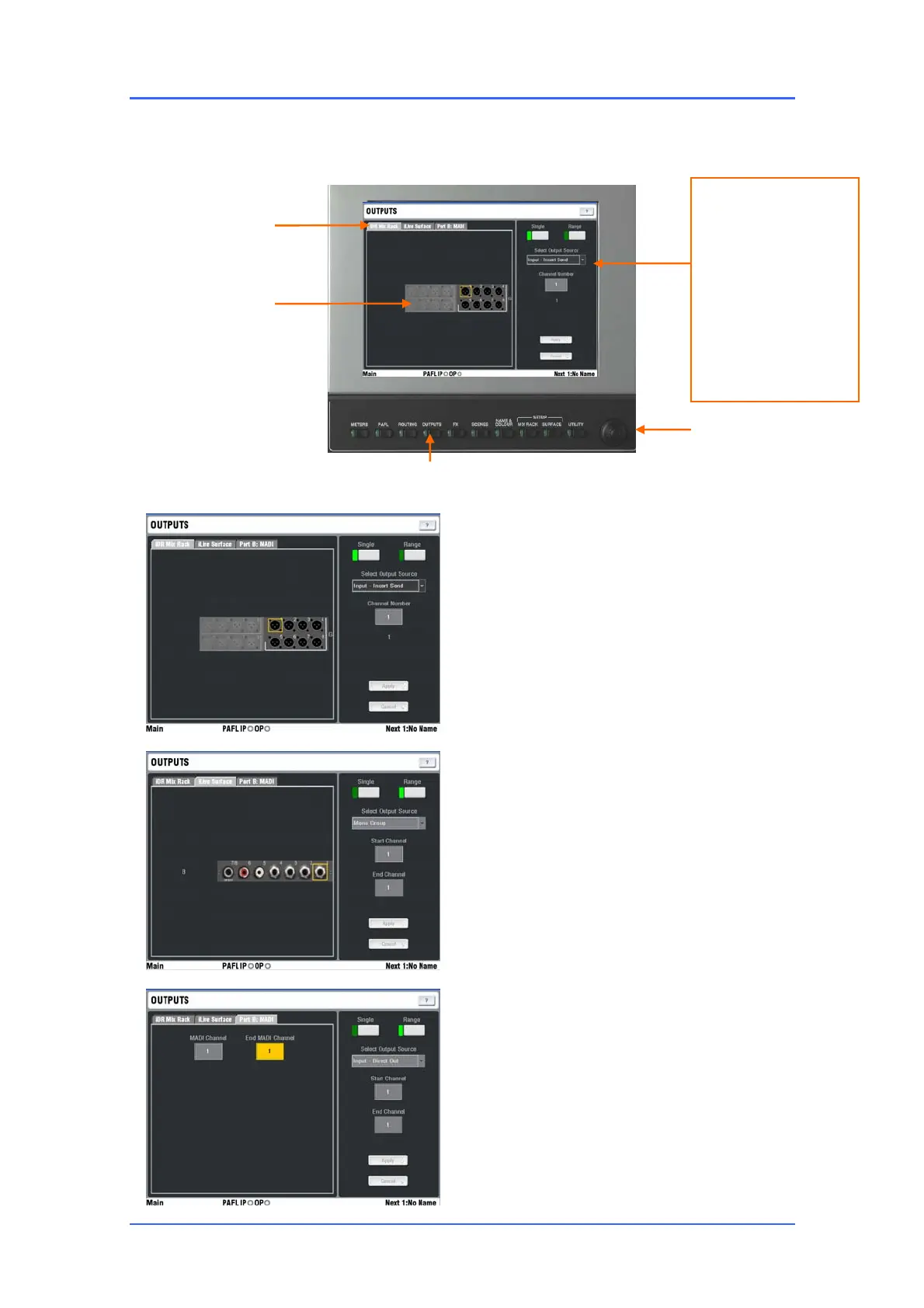

OUTPUTS
Tabs to select patch
bay
Touch the socket or
scroll through the
available network
channels
Choose the signal to
send to the socket:
Not Patched
Mono or stereo Mix
Mix Bus Out
Input Direct Out
MixRack Input
Port A/B source
PAFL monitor
Wedge monitor
IEM monitor
Use the screen rotary
to scroll through the
channels.
