iLive Reference Guide – Firmware Part 2 - 24 AP6526-2 iss.4
Channel and Mix processing
iLive provides plenty of signal processing for its input channels, effects returns, mix masters and up to 8
internal stereo FX devices. This replaces the large racks of outboard equipment that typically accompany
the traditional analogue mixing system. iLive has a huge amount of DSP power to make its processing
available to all channels at all times. You do not need to allocate processing from a limited resource of
DSP. The processing is instantly accessible on selecting a channel or mix, with dedicated analogue style
controls and alternative TouchScreen control.

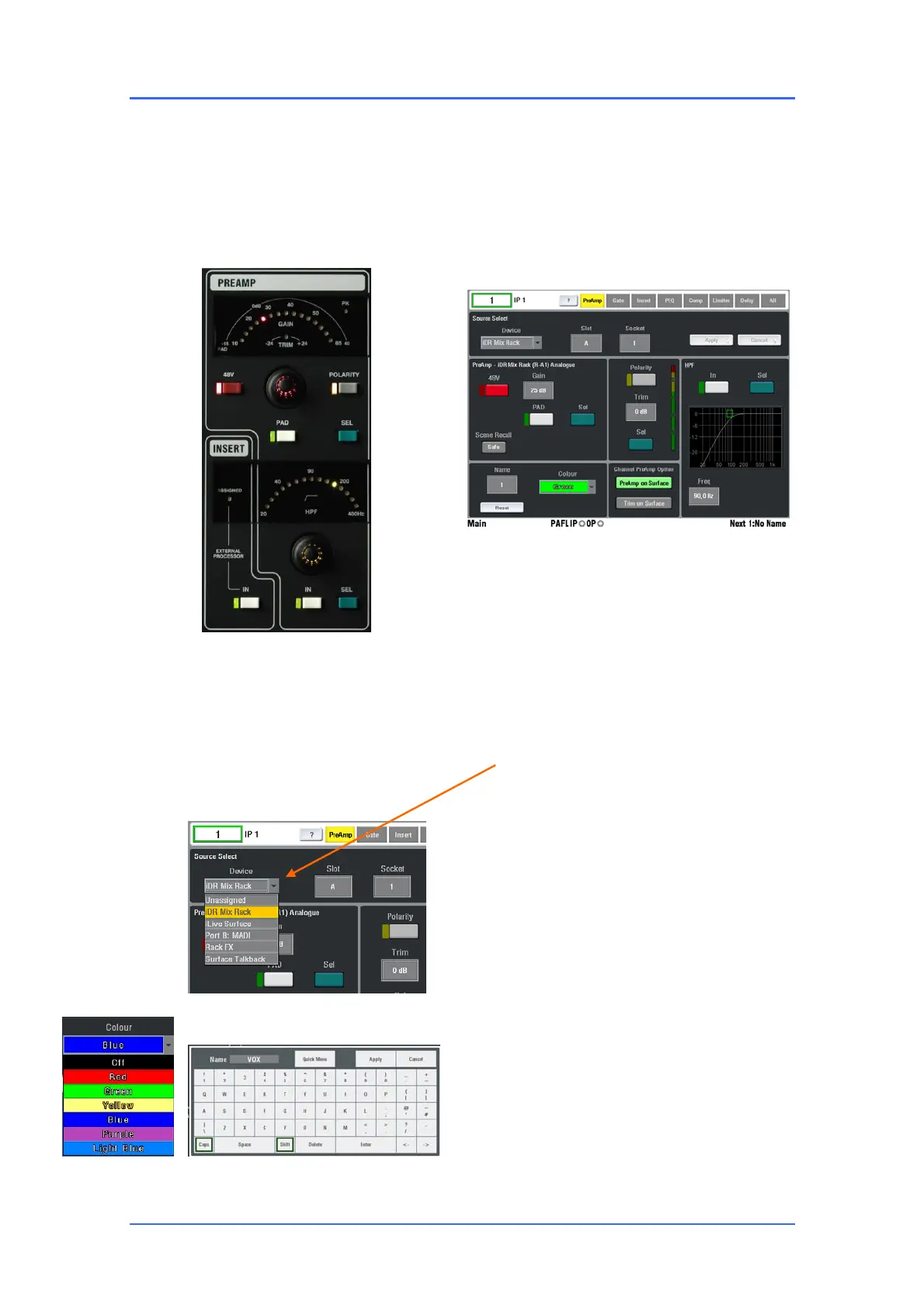

PREAMP (Channel only)
Input patch bay Select the input source for the
channel from the Device drop down menu and
press Apply to confirm. This lets you rearrange
your patch according to how things are plugged up
on stage, split signals into two or more channels,
select from remote sources such as an EtherSound,
MADI or ACE mic splitter and more. Channel
sources include:
Unassigned
Available MixRack input socket
Available Surface input socket
Port A channels 33 to 62
Port B channels 1 to 64
Effects rack
Surface Talkback
Controls for preamp Gain / Trim, Polarity reverse,
Pad and 48V phantom power are presented if a
MIC/LINE input is selected. These remotely control
the analogue head amp in the MIC/LINE module.
Reduce the gain if any of the channel PK! indicators
light.
HPF The PREAMP includes a swept frequency
high pass filter with IN/OUT switch and sweep from
20Hz to 400Hz.
Name and Colour Touch the Name box to access
a touch keypad to enter a 5 character channel
name. Use the ‘Quick Menu’ view to store and
recall commonly used names. Touch the Colour
box to access a drop down menu to select the
channel (LCD backlight) colour (6 colours and off).
Note: To select phantom power using the
processing block 48V key hold it down for 1
second. This is to protect against accidental
operation. Red PP LEDs light on the modular iLive
MIC/LINE input modules when phantom power is
detected on their sockets, whether from their own
mic preamp or an external sources. These are not
available on the T or R Series.
