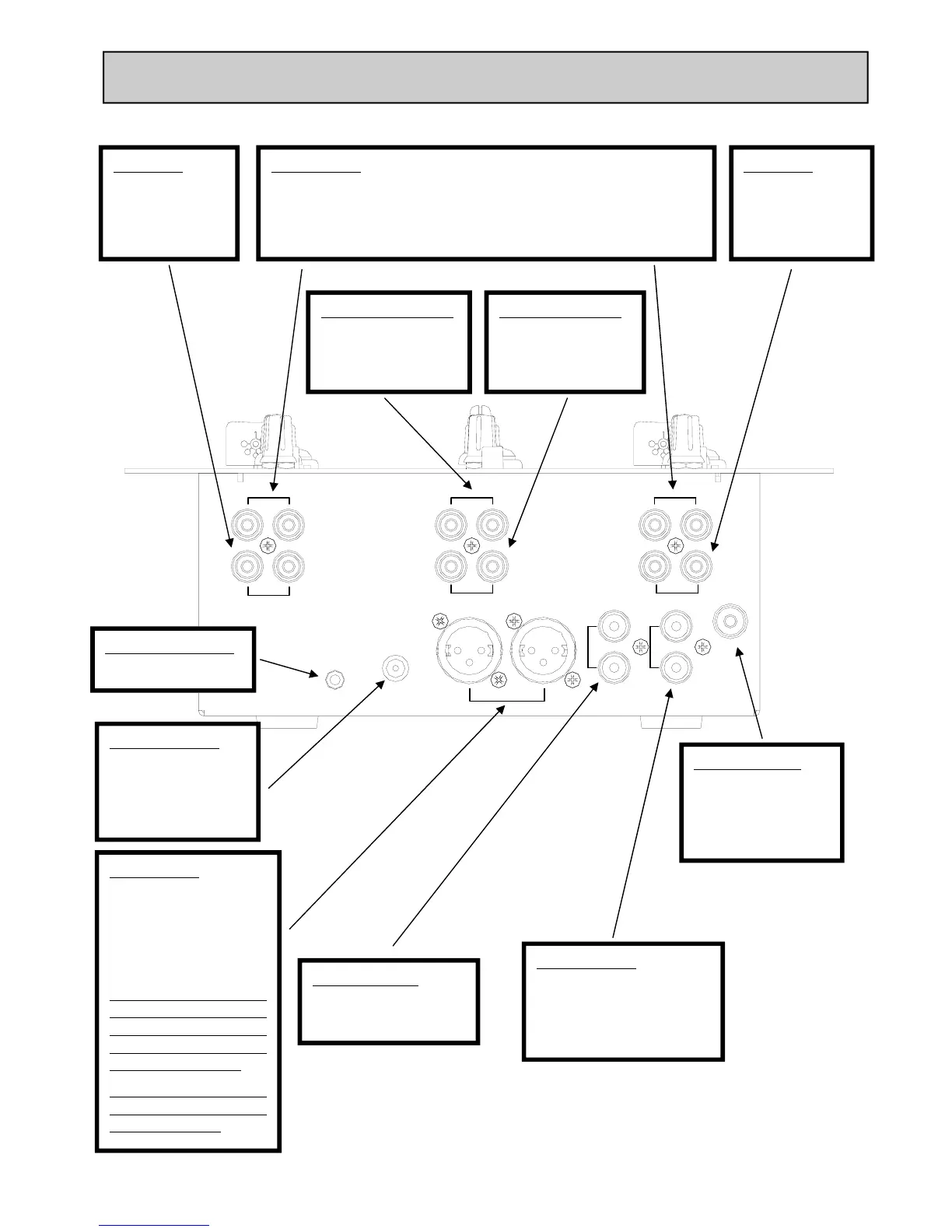

REAR PANEL CONNECTIONS
Phono inputs
For connection to turntables only; this input has RIAA equalization for
moving magnet cartridges.
Note: these inputs can be converted to Line with internal jumper links
Effects SND output
Connect this output
to the input of an ex-
ternal effects unit.
Line input
For connection to
a line level device;
(CD players etc)
Line input
For connection to
a line level device;
(CD players etc)
Effects RTN input
Connect this input to
the output of an
external effects unit.
PSU connection
To prevent damage to
your Xone:22 only use
an A&H approved
power supply
Headphone output
Rear mini jack output
Main outputs
Connect these to a PA
amplifier using profes-
sional balanced XLR con-
nectors for maximum
hum and noise rejection.
Do not short either
pins 2 or 3 to ground.
For unbalanced opera-
tion use pin 2 only and
leave pin 3 floating.
Failure to observe this
could result in damage
to your Xone:22
Monitor output
Connect to a powered
speaker or Hi-FI system
Record output
Use to record your mix.
Connect to a Minidisk re-
corder, cassette deck or
computer, etc
Grounding post
Mainly used to con-
nect the ground wire
from some turntables
to minimise hum

ALLEN & HEATH Xone:22 Specifications

Connections - Inputs

phono RCA connection impedance	47K/330pF
line RCA connection impedance	20K ohm
FX RTN RCA connection impedance	10K ohm
mic XLR connection impedance	<2K ohm

Connections - Outputs

main mix balanced XLR output impedance	68 ohms
monitor RCA output impedance	68 ohms
record RCA output impedance	600 ohms
FX SND RCA output impedance	47 ohms

Performance

distortion	0.002% THD+N
noise	-84dBu un-weighted
frequency response	10Hz to 30kHz +0/-3dB

Weight and Dimensions

weight	2.2 kg
packed weight	3.5 kg
