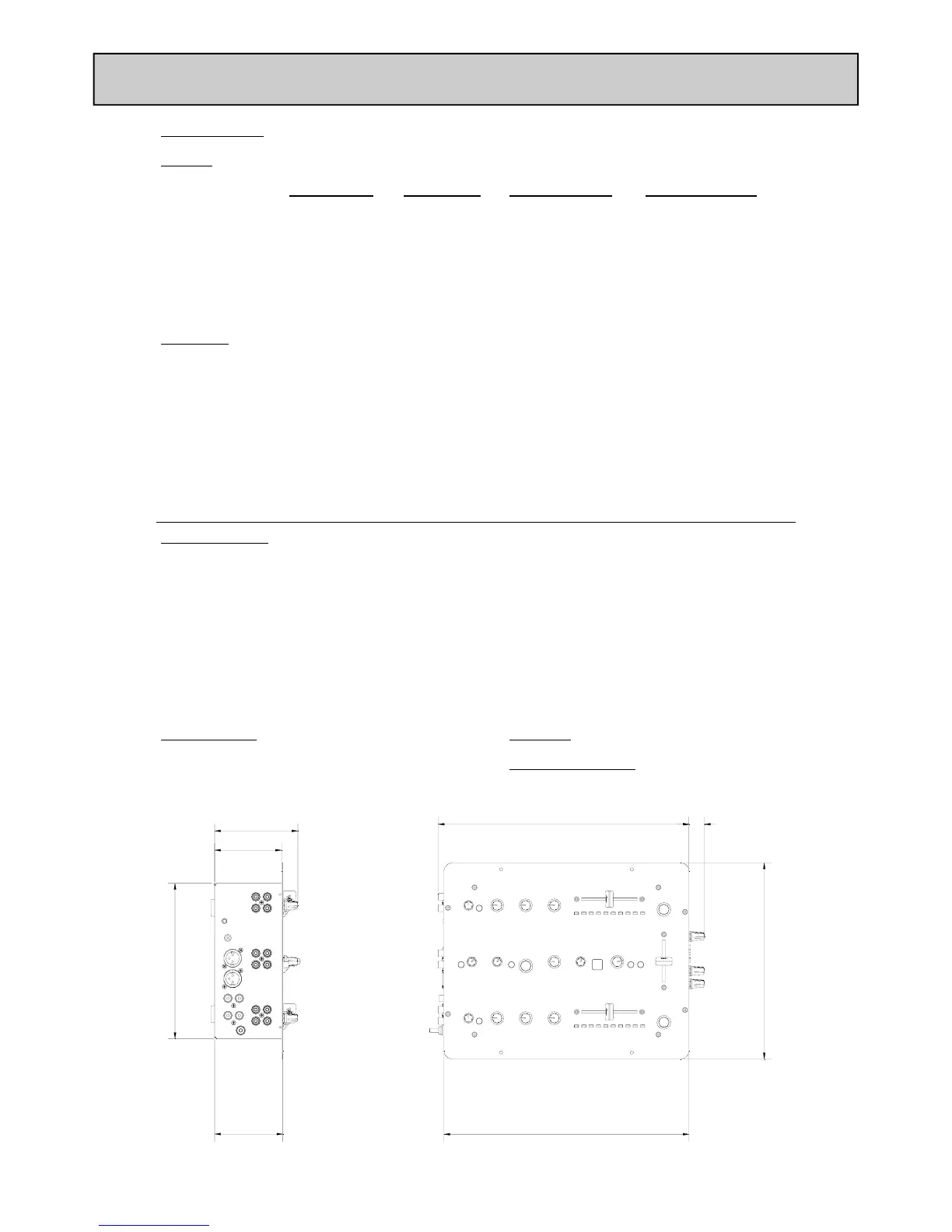

SPECIFICATIONS
Connections
Inputs
Connection Impedance Nominal Level Maximum Level
Phono RCA 47K/330pF 7mV-100mV
Line RCA 20K ohm -10 to +18dBu
FX RTN RCA 10K ohm 0 to +18dBu
Mic XLR <2K ohm -42 TO –12dBu
Outputs
Main Mix Balanced XLR 68 ohms +4dBu +25dBu
Monitor RCA 68 ohms -2dBu +18dBu
Record RCA 600 ohms -10dBV +10dBV
FX SND RCA 47 ohms -2dBu +18dBu
Headphones 3.5mm and
1/4” TRS Jacks
1 ohm 200mW RMS into
30 ohms
Performance
Distortion Main Mix out +10dBu 0.002% THD+N
Noise 22-22Khz Main Mix out unity -84dBu un-weighted
Fader shut off Channel fader >-74dB
Xfade shut off Xfader >-80dB
Frequency
Response
10Hz to 30kHz +0/-3dB
Dimensions Weight 2.2kg (5.5lb)
Weight Packed
3.5kg (8.0lb)
101.93
83.60
300.00
307.00
190.00
240.00
82.00
18.73

ALLEN & HEATH Xone:22 Specifications

Connections - Inputs

phono RCA connection impedance	47K/330pF
line RCA connection impedance	20K ohm
FX RTN RCA connection impedance	10K ohm
mic XLR connection impedance	<2K ohm

Connections - Outputs

main mix balanced XLR output impedance	68 ohms
monitor RCA output impedance	68 ohms
record RCA output impedance	600 ohms
FX SND RCA output impedance	47 ohms

Performance

distortion	0.002% THD+N
noise	-84dBu un-weighted
frequency response	10Hz to 30kHz +0/-3dB

Weight and Dimensions

weight	2.2 kg
packed weight	3.5 kg
