ALLEN & HEATH Xone:22 User Manual

8

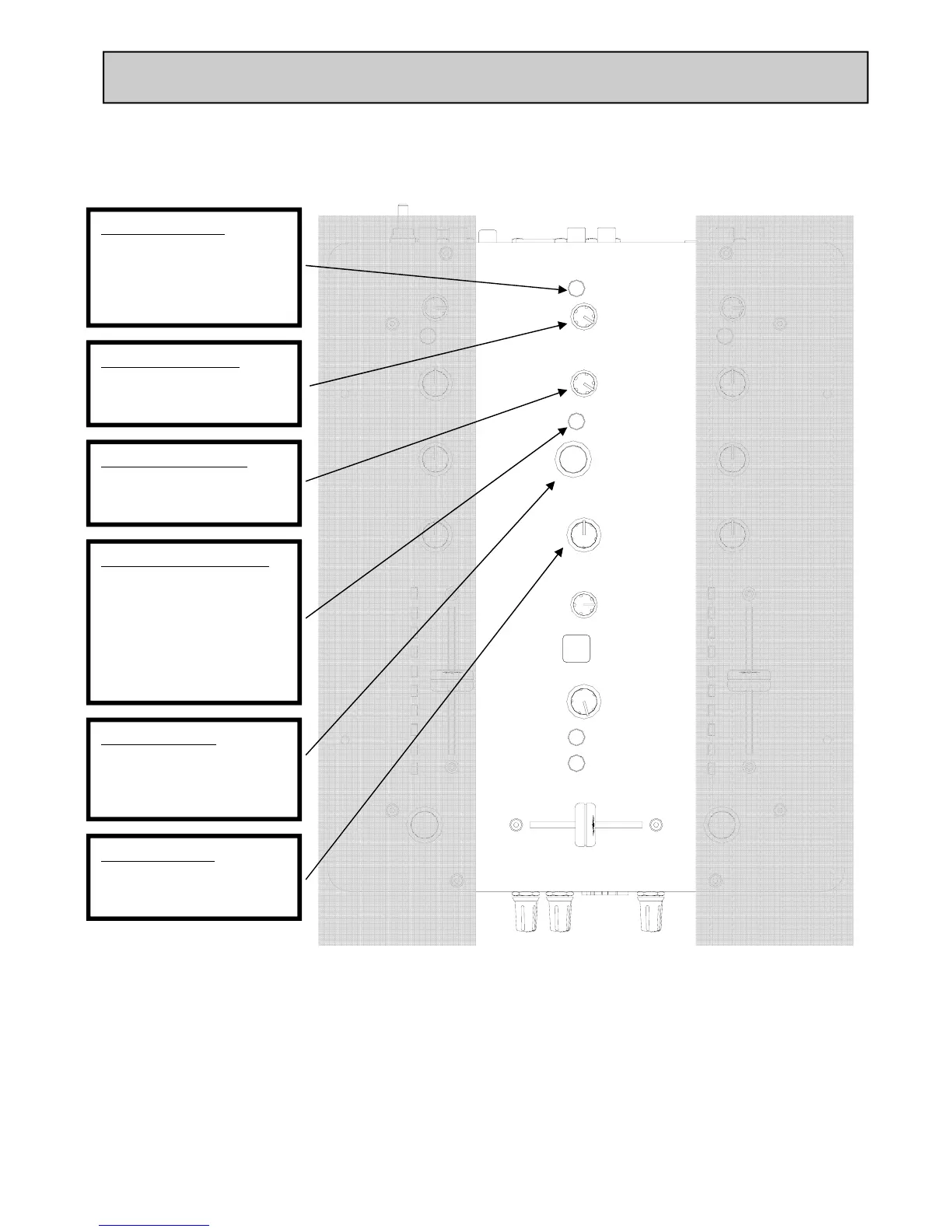

MASTER CONTROLS
FX loop on switch
Press this switch to activate
the external effect loop. Leave
switched off if an external
effects unit is not connected
Master output Level
Sets the signal level to the
main XLR mix output
Monitor output Level
Sets the signal level for the
local monitor (booth) output
Filter Resonance control
Changes the “Q” or sharpness
of the VCF.
Up (mild) will give a smooth
filter sound, Down (wild) will
make the filter sound more
dramatic
Filter Frequency
Sets the cut off frequency of
the VCF filter
Filter type select
Up (green) selects a low – pass
filter, down (red) selects a high
- pass filter

ALLEN & HEATH Xone:22 Specifications

Connections - Inputs

phono RCA connection impedance	47K/330pF
line RCA connection impedance	20K ohm
FX RTN RCA connection impedance	10K ohm
mic XLR connection impedance	<2K ohm

Connections - Outputs

main mix balanced XLR output impedance	68 ohms
monitor RCA output impedance	68 ohms
record RCA output impedance	600 ohms
FX SND RCA output impedance	47 ohms

Performance

distortion	0.002% THD+N
noise	-84dBu un-weighted
frequency response	10Hz to 30kHz +0/-3dB

Weight and Dimensions

weight	2.2 kg
packed weight	3.5 kg
