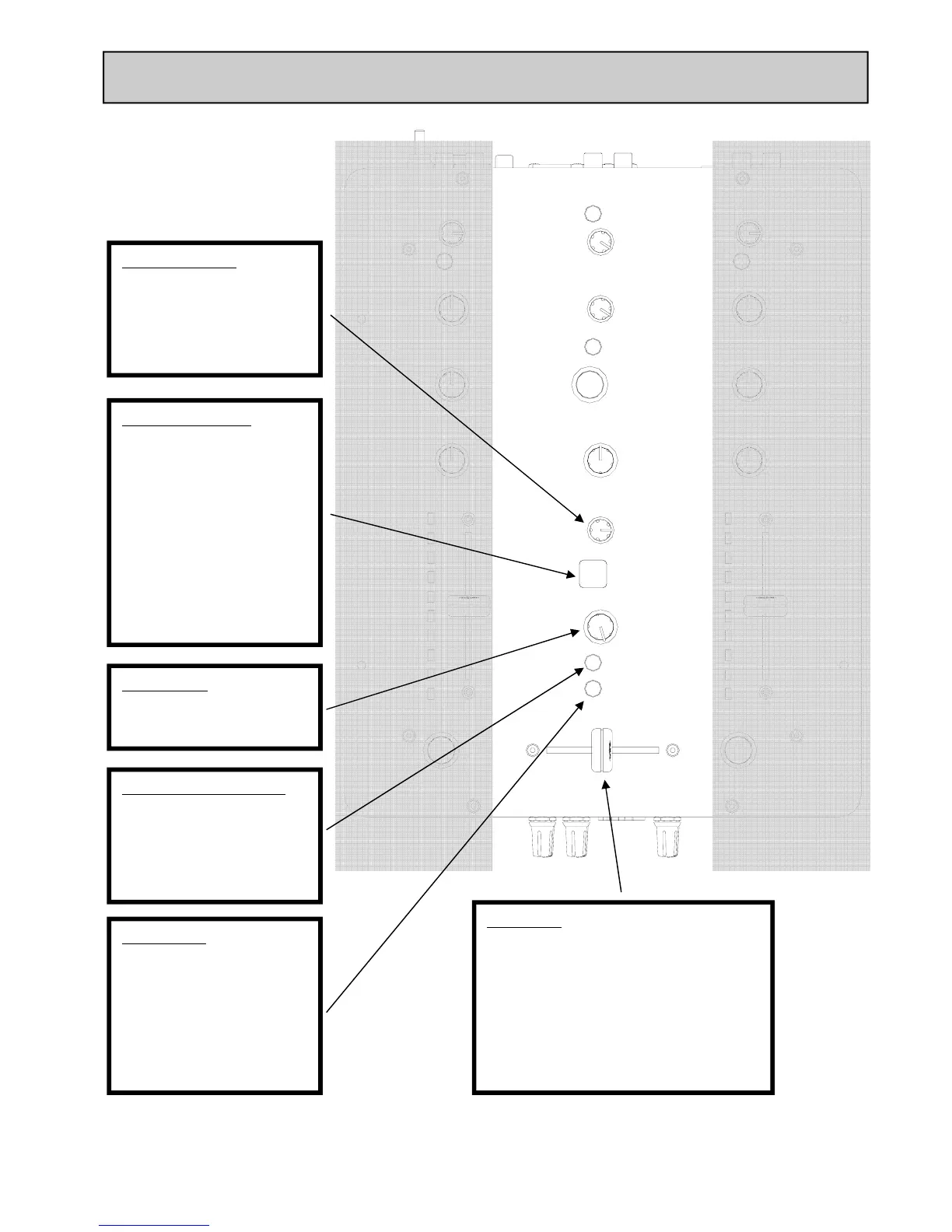

MASTER CONTROLS continued
Headphone level
Sets the level of the head-
phone output.
Warning! Very high level can
cause hearing damage!
Cue/Master Switch
In the up position (Cue) the
headphones will monitor the
channel signal before the fad-
ers, and the meters will display
the pre fade channel signal
level. Press to listen to the
main mix output, pre the Mas-
ter Level control. In this
mode, the channel meters will
display the stereo mix level,
Left = 1, Right = 2.
Crossfader curve switch
Use the up position to
smoothly blend between
tracks, and the down position
for a faster more aggressive
style of mixing
Cue Control
Pans between Channel 1 and 2
pre-fader signal
Meter Mode
This switch changes the way
the meters display the signal
levels, from “bar” mode,
where all the LEDs below the
peak reading are illuminated,
to “dot” mode, where only the
peak signal level is displayed.
Crossfader
This is used to “fade” the signal level between
the two channels, and its response is set us-
ing the curve switch. When the crossfader is
fully over to the left only the music from
channel 1 will be heard, and when fully to the
right only channel 2. When in the centre the
music from both channels will be heard in
equal proportion.
