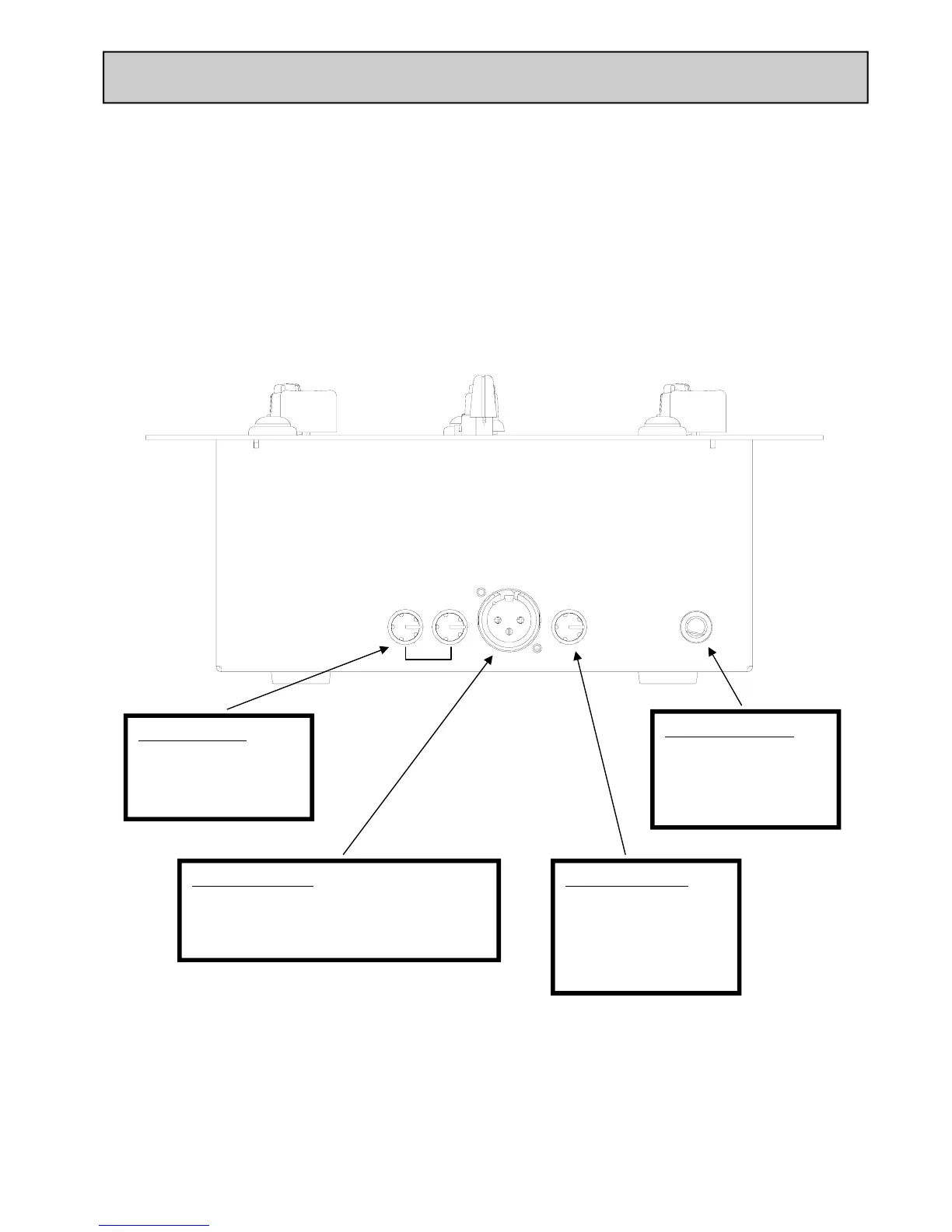

FRONT PANEL CONNECTIONS
Microphone EQ
2 band EQ for adjusting
the tonal balance of the DJ
mic
Microphone input
Professional XLR balanced mic input. Use a low
impedance dynamic hypercardioid Mic for best
results.
Microphone Level
Adjusts the signal level of
the mic input. If you are
not using the mic, turn to
minimum to prevent noise
pick up.
Headphone output
1/4” jack headphone out-
put socket. Use phones
with a 30 to 70 ohms
impedance.

ALLEN & HEATH Xone:22 Specifications

Connections - Inputs

phono RCA connection impedance	47K/330pF
line RCA connection impedance	20K ohm
FX RTN RCA connection impedance	10K ohm
mic XLR connection impedance	<2K ohm

Connections - Outputs

main mix balanced XLR output impedance	68 ohms
monitor RCA output impedance	68 ohms
record RCA output impedance	600 ohms
FX SND RCA output impedance	47 ohms

Performance

distortion	0.002% THD+N
noise	-84dBu un-weighted
frequency response	10Hz to 30kHz +0/-3dB

Weight and Dimensions

weight	2.2 kg
packed weight	3.5 kg
