ALLEN&HEATH 15 AP11645_1_XONE:96 User Guide

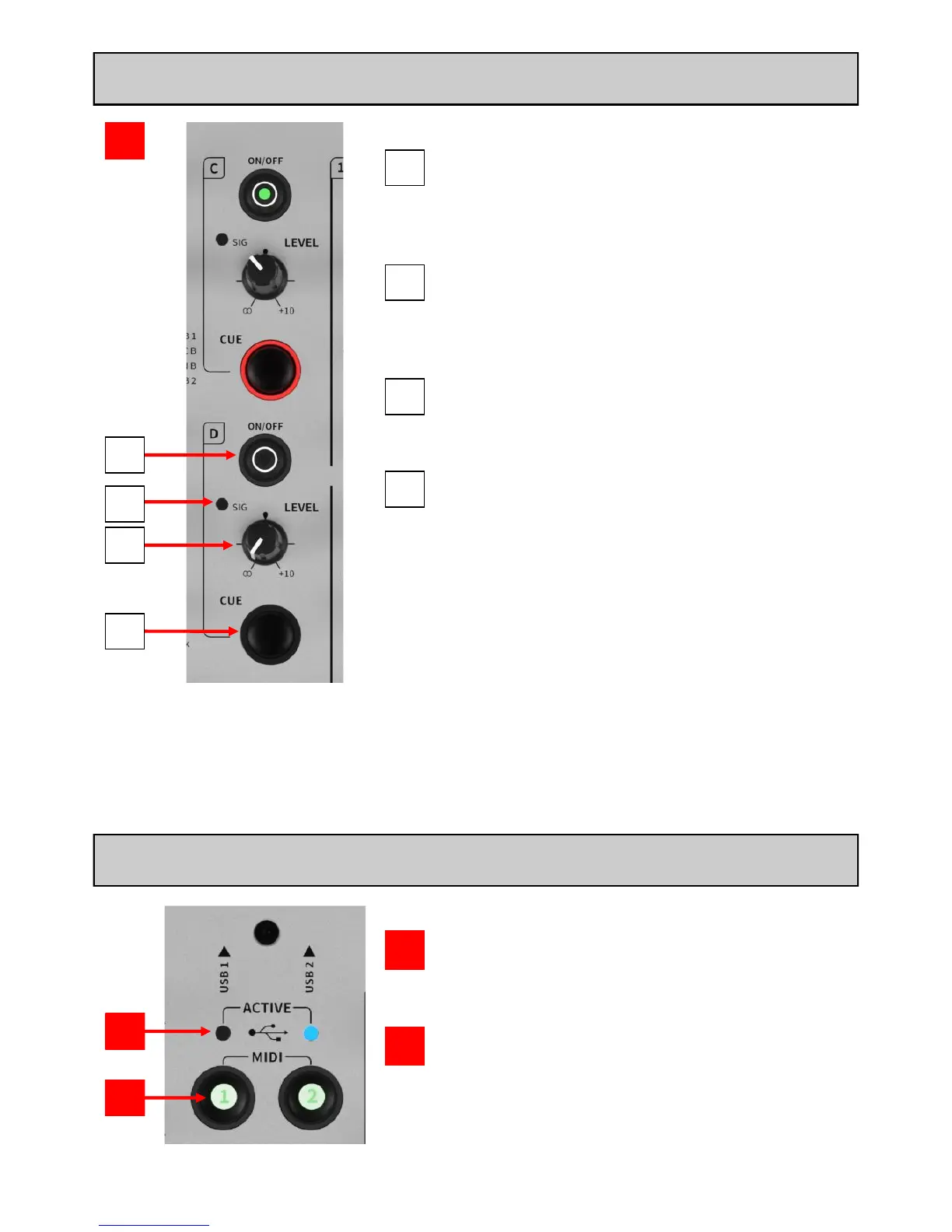

MASTER SECTION

USB 1 / USB 2 Active Indicators

LED Illuminates BLUE when a computer connected to the

mixer’s corresponding USB 1 or USB 2 port is enabled.

MIDI 1 / 2 Switches

Switch the local XONE:96 MIDI output to the corresponding

USB 1 or USB 2 ports ON / OFF.

Switch status does not affect MIDI sent to the MIDI OUT port,

via X:Link, or between USB 1 and USB 2 Partners.

AUXILIARY RETURN CHANNELS C - D

SIG LED indicators

Bi-colour LEDs illuminate GREEN to show an audio input is

present. If a SIG LED illuminates RED continually, turn the

corresponding LEVEL control down.

Channel LEVEL Control

Adjust the RTN C and RTN C input levels from fully off to

+10dBu

Channel ON/OFF Switch

Route signals from hardware connected via RTN C or RTN D

inputs direct to the LR MIX at pre-MST levels.

ON/OFF switches are enabled for MIDI control. See below.

Channel CUE Switch

Press to listen to the channel audio levels from MONITOR

headphones outputs and to view pre-LR MIX levels on the

main LR MIX meters. Switches illuminate RED when active.

Default switch setting is AUTO-CUE. Refer to p.9 for details.

CUE switches are also enabled for MIDI control. See below.

MIDI Control

• Channel ON/OFF and CUE switches send MIDI NOTE ON/OFF messages to the rear panel MIDI OUT port,

and to USB 1 and USB 2 ports when the corresponding MIDI 1/ 2 switch is active.

• Channel ON/OFF and CUE switches can also be remotely controlled by MIDI output via USB 1 and USB 2.

See p.28 for details
