ALLEN&HEATH 16 AP11645_1_XONE:96 User Guide
PHONES 2 SECTION
XONE:96 features two independent cue systems for back-to-back sessions and smooth set transitions.
PHONES 2
Provides dedicated 9-way source select switch, CUE/MST
mix and LEVEL controls, with stereo 1/4” Jack and 3.5mm
mini-jack front-panel connectors.
PHONES 2 settings do not affect channel CUE assignments,
or BOOTH and MONITOR outputs.
21

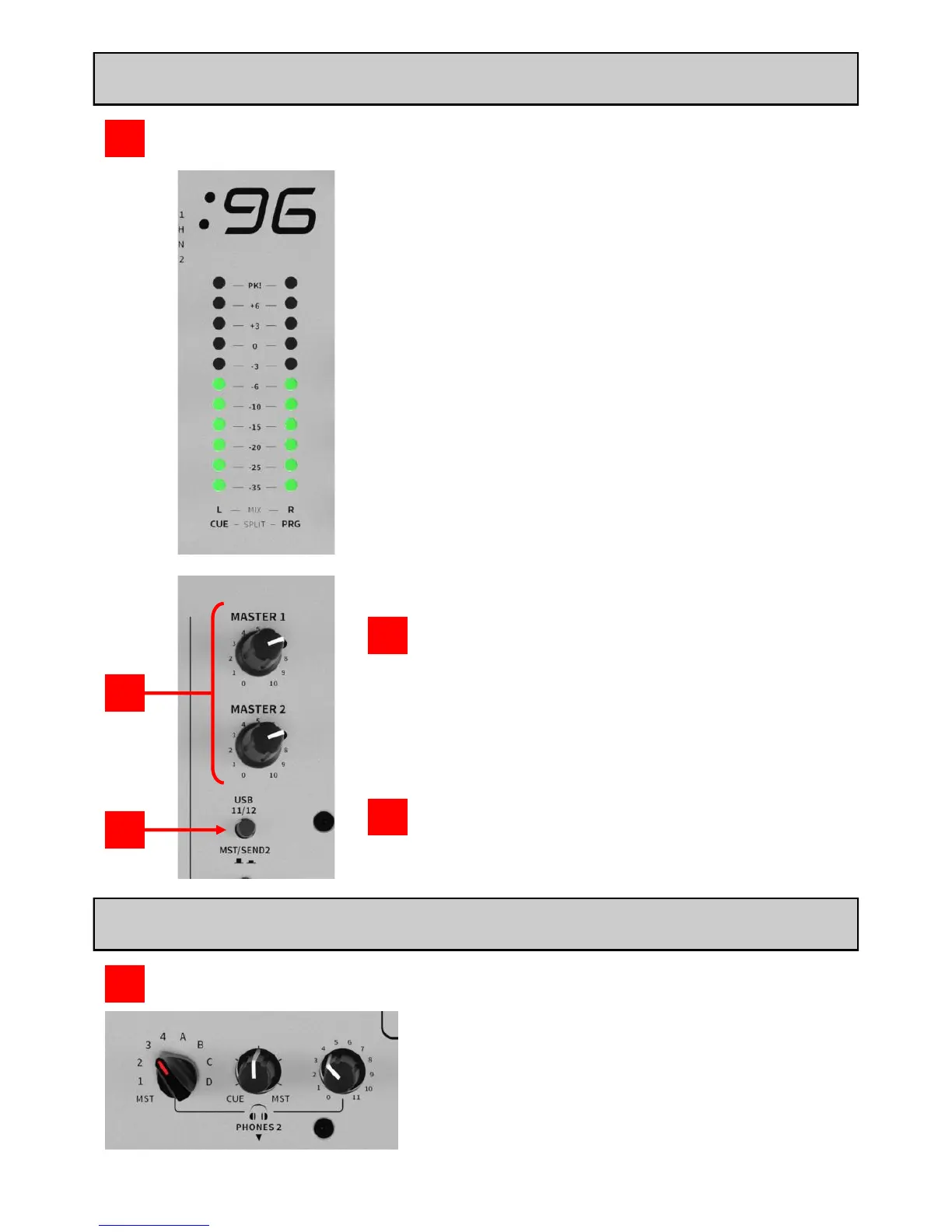

MASTER SECTION continued
MASTER MIX Level Controls, MASTER 1/MASTER 2
Independent MASTER 1 and MASTER 2 controls to adjust
levels for the main LR MIX, feeding MST 1 (XLR) and MST 2
(¼“Jack) outputs.
MASTER 1 and MASTER 2 adjustment does not affect the
LR MIX meter display, or RECORD, BOOTH, MONITOR or
PHONES 2 levels.
16
USB 11/12 Source Select Switch
Selects the signal source routed to internal soundcard input
channels USB 11/12 between MST (LR-MIX), or SEND 2.
17
16
17
The main meters follow the selected monitor source.
The default display is LR MIX levels, which is overridden by an input
channel level when any channel CUE switch is selected.
When CUE is active, the meters display the summed level of selected
channels.
When CUE is inactive, meters display the LR MIX at pre-MASTER 1
control level.
In SPLIT CUE mode, the Left (L) meter displays active CUE channel
levels and the Right (R) meter displays the main LR MIX level
(PRG).
NOTE:
The mixer should be operated with meters averaging around 0 and
loudest peaks at around +6.
If the PK! Indicators illuminate continually, ensure any GAIN or EQ
settings are not causing clipping on Channel meters; if necessary,
turn Channel GAIN, EQ, and/or FADERS down to prevent distortion
on the main LR MIX.
Refer to the OPERATING LEVELS section on p.39 for information.
15
MIX/MONITOR Meters
