ALLEN & HEATH XONE:96 User Manual

ALLEN&HEATH 17 AP11645_1_XONE:96 User Guide

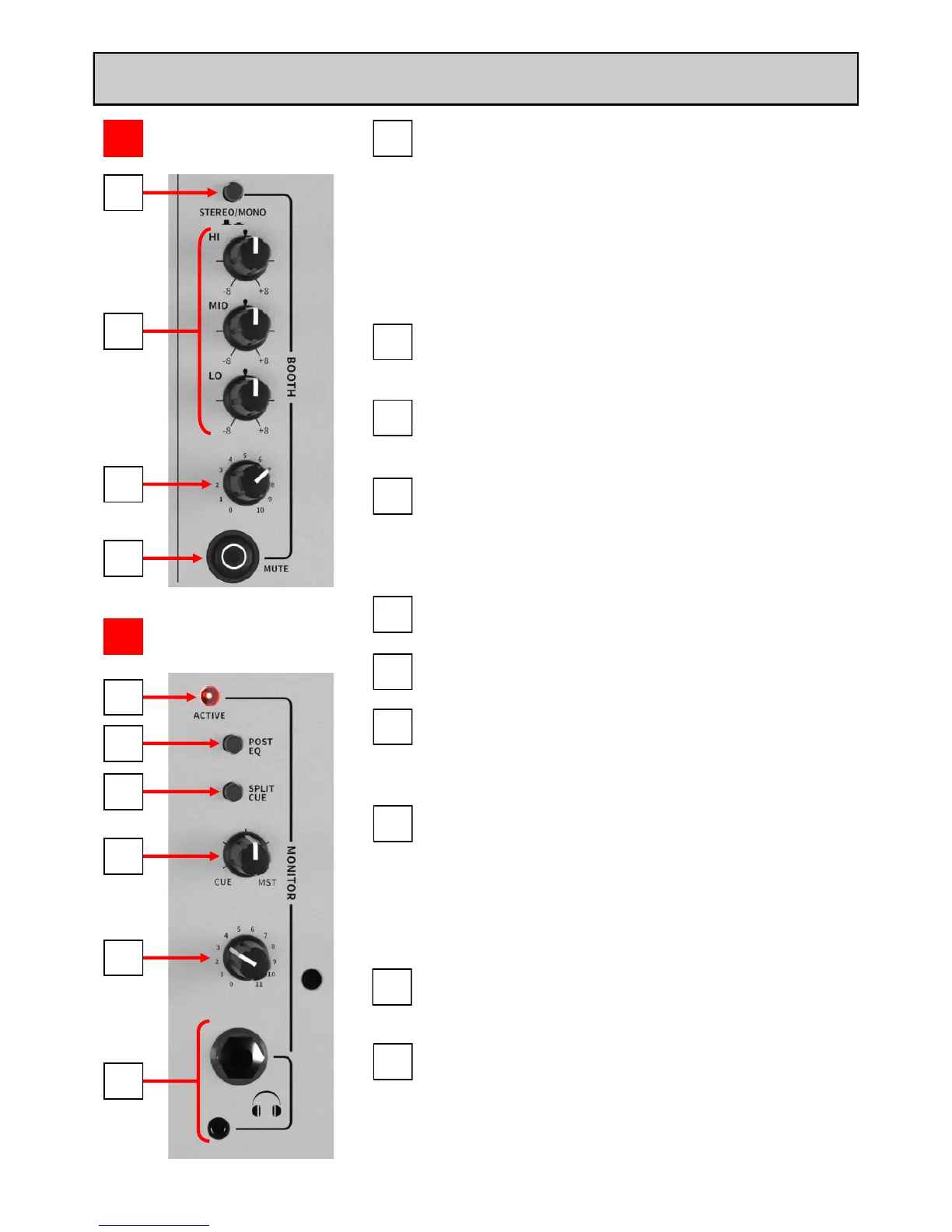

BOOTH & MONITOR SECTIONS
3
Level Control
Adjusts level of the signal to the rear panel BOOTH outputs.
This does not affect MONITOR or PHONES 2 outputs.
1
STEREO/MONO Switch
Enables LEFT and RIGHT monitor signals to be summed
together so a selected stereo source can be checked for
mono compatibility, especially important in club or recording
applications. A drop in level or loss of low frequencies when
pressed indicates reversed polarity between LEFT & RIGHT
signals. Alternatively, select if you wish to run the booth
monitor output in mono rather than stereo.
This does not affect MST, MONITOR or PHONES 2 outputs.
2
BOOTH Equaliser
Independent 3-Band EQ to tune the DJ’s monitor speakers.
Adjustment does not affect MST, MONITOR, or PHONES 2
4
MUTE Switch
Press to mute signal to the BOOTH outputs.
The button illuminates RED when active.
Does not affect MST, MONITOR or PHONES 2 outputs.
The switch is also enabled for MIDI control. See p.28.
8
CUE/MST Mix Control
Allows the main LR MIX output to be blended with the CUE
signal. Turned fully anti-clockwise, only active CUE Channels
are routed to the MONITOR headphones. Gradually turning
the control clockwise introduces the LR MIX output to the
headphones together with active CUE.
Selecting SPLIT CUE overrides the CUE/MST mix control.
5
Cue ACTIVE Indicator
Illuminates RED when one or more CUE switch is enabled.
6
POST EQ Switch
Switch global channel CUE source between pre & post-EQ.
10
Headphone Outputs
Stereo 1/4” TRS jack and 3.5mm mini-jack sockets.
Plug in good quality stereo headphones designed for DJ
monitoring. Use closed-ear headphones to provide the
maximum acoustic isolation when cueing your sources.
9
Level Control
Adjusts the level of audio in MONITOR headphone outputs.
This does not affect the BOOTH or PHONES 2 levels.
7
SPLIT CUE Switch
Enables CUE channel signals to route to the Left side of the
MONITOR headphones and the LR MIX to the Right. Main
meters display corresponding, CUE/PRG, levels when active.
BOOTH
18
1
2
3
4
MONITORS
20
8
5
10
6
7
9

ALLEN & HEATH XONE:96 Specifications

General

Channels quantity	8 channels
Digital sound processing	- bit
Equalizer bands quantity	4
DJ mixer	-
Product color	Black, Grey
USB connector type	USB Type-B
Master (XLR) out	1
Headphone connectivity	3.5 mm/6.35 mm
Number of microphone inputs	2
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	45 W
Built-in display	No

Weight and Dimensions

Depth	410 mm
Width	336 mm
Height	109 mm
Weight	7000 g
