3. Click Change/Remove and follow the instructions.
4. Click Continue and then click Finish.
Change the Station Number
If you want to change the station number when the 1747-UIC interface converter is
already online to a DH-485 network with an existing station number, you must:
1. Configure the new station number in the RSLinx DF1 driver.
2. Stop the RSLinx DF1 driver.
3. Unplug the 1747-UIC interface converter from the computer’s USB port.
4. Plug the interface converter back into the computer’s USB port.
5. Start the RSLinx DF1 driver.
Now, when you go online through the 1747-UIC interface converter, it will use the
new station number.

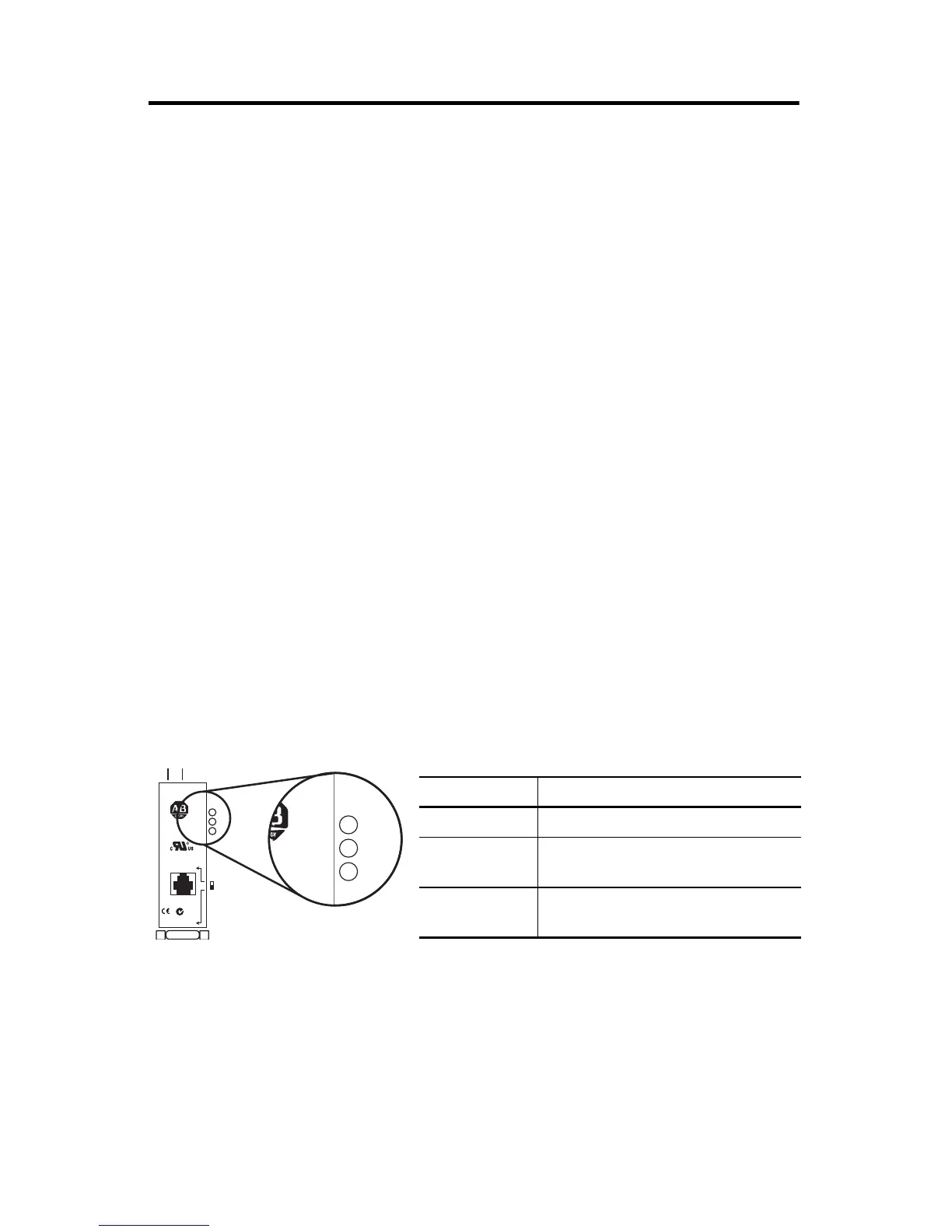

Interpret the LED Indicators
The interface converter has three green LED indicators, which indicate the
following when lit:
LED Indicator Description
OK (solid) The USB port is powered and operational.
USB (flashing) The USB port is transmitting or receiving
DF1 data.
DH-485 (flashing) The interface converter is actively passing
token or data on DH-485 network.
USB (DF1)
RS485 (DH485)
RS232 (DH485)
USB to DH485
INTERFACE CONVERTER
USB
OK
SW
DH485
CAT SER FRN
1747-UIC A X.X
Mfg
XXXX
MADE IN INDIA
N223
DH485
CONVERTER
USB
OK
DH485
FRN
X.X
LISTED I.T.E.
