Allen-Bradley 1747-UIC User Manual

6 Universal Serial Bus (USB) to DH-485 Interface Converter
Publication 1747-IN063C-EN-P - January 2006

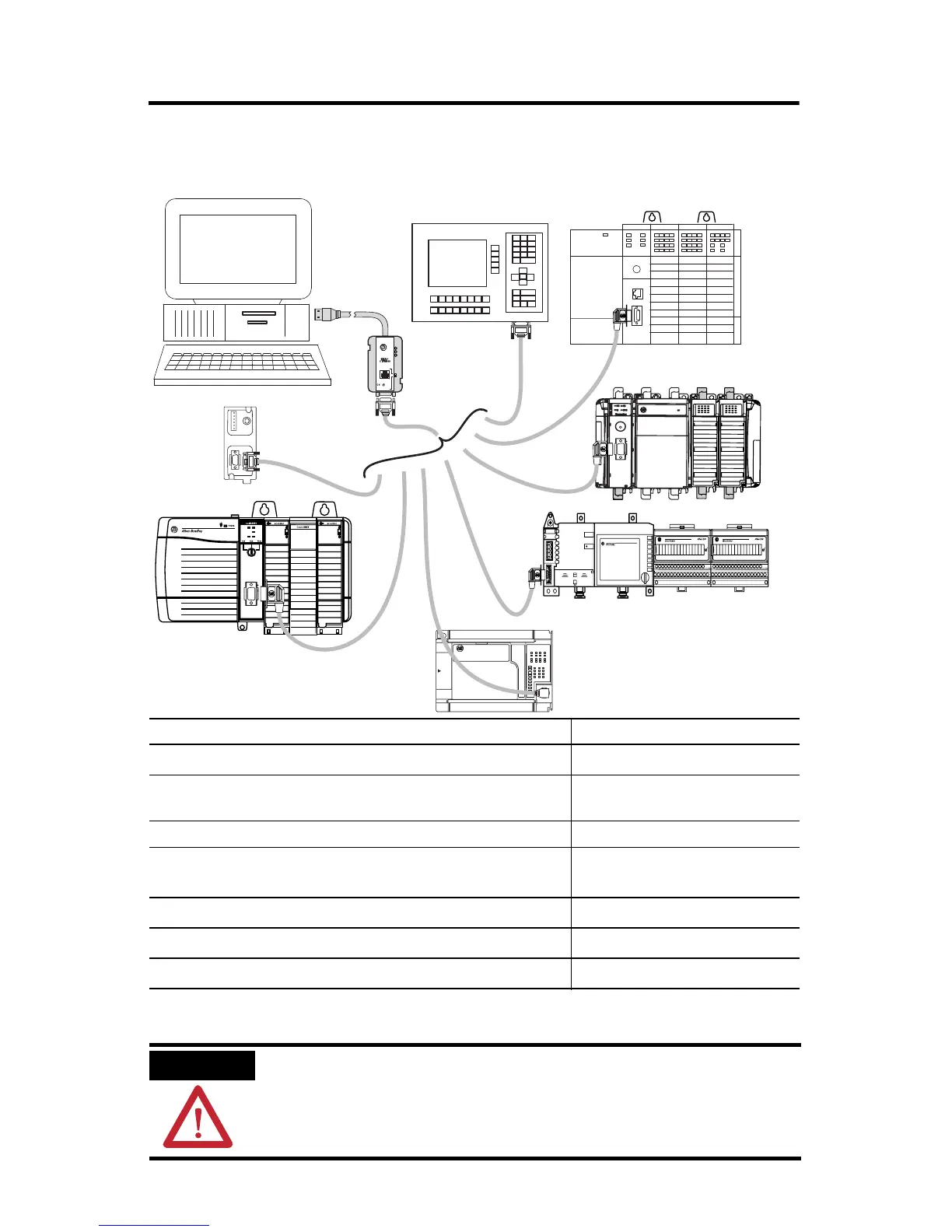

Connect DH-485 Devices to the Interface Converter’s RS-232 Port
Connect the Following DH-485 Equipment to the RS-232 Port Use Cable
SLC 5/03, SLC 5/04, and SLC 5/05 (Channel 0)
(1)
Controllers
(1)
Make sure your controller’s Channel 0 configuration is set to DH-485 prior to connecting the 1747-UIC interface converter to
Channel 0. The factory default is DF1.
1747-CP3, 1756-CP3
1761-NET-AIC (AIC+) Advanced Interface Converter 1747-CP3, 1756-CP3 (Port 1, 9-pin D)
1761-CBL-PM02 (Port 2, 8-pin DIN)
PanelView 300 and higher Terminals with RS-232 (DH-485) Ports 2711-NC13 or equivalent
MicroLogix
(1)
Controllers
PanelView 300 Micro (DH-485) Terminals
1761-CBL-PM02 or equivalent
CompactLogix
(1)
Controllers
1747-CP3, 1756-CP3
FlexLogix
(1)
Controllers
1747-CP3, 1756-CP3
ControlLogix
(1)
Controllers
1747-CP3, 1756-CP3
ATTENTION
To avoid ESD damage to the interface converter, always connect
the interface converter to the properly grounded DH-485 device
or interface prior to plugging the USB cable into the computer’s
USB port.
USB (DF1)
RS485 (DH485)
RS232 (DH485)
USB to DH485
INTERFACE CONVERTER
USB
OK
SW
DH485
CAT SER FRN
1747-UIC A X.X
Mfg
XXXX
MADE IN INDIA
N223
LISTED I.T.E.
Personal
Computer with
USB Port
PanelView 300 and higher Terminal
1747-UIC
SLC 5/03, SLC 5/04, and
SLC 5/05 (Channel 0) Controller
CompactLogix Controller
MicroLogix
Controller
FlexLogix Controller
ControlLogix
Controller
AIC+

Allen-Bradley 1747-UIC Specifications

General

Brand	Allen-Bradley
Model	1747-UIC
Category	Media Converter
Language	English
