52 Rockwell Automation Publication 1756-UM013B-EN-P - October 2019
Chapter 3 1756-IB16S Input Module Features
On to Off Delay
An input signal is treated as Logic 1 during the On to Off delay time after the
falling edge of the input contact.
The input turns off only if the input contact remains off after the On to Off delay
time has elapsed. This setting helps to prevent rapid changes of the input data due
to contact bounce.
You can delay the On to Off transition by the following times:
•0 ms
•1 ms
•2 ms
•5 ms
• 10 ms
• 20 ms
• 50 ms

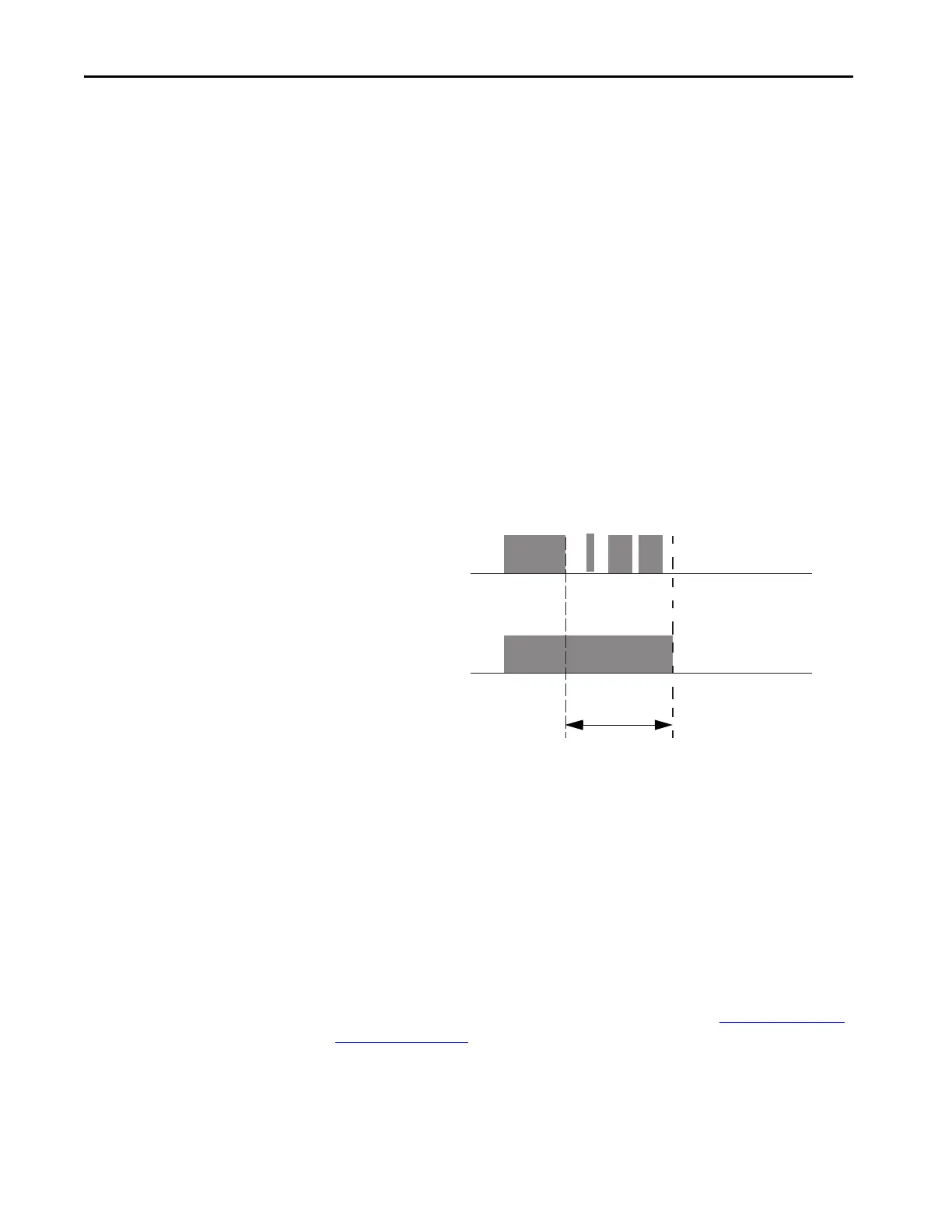

Figure 11 - On to Off Delay
Data Transfer at RPI
The safety input module always sends data to the owner-controller at the RPI.
You set the RPI on the Connection page of the Module Properties dialog box in
the Logix Designer application.
Module Health Diagnostic
Every I/O module has a status indicator on the front of the module that indicates
module health.
For more information on status indicators, see Appendix A, Troubleshoot Your
Module on page 103.
ON
OFF
ON
OFF
Input Signal
Safety Input
Network Data
On to Off Delay
