Rockwell Automation Publication 1769-UM021G-EN-P - October 2015 39
Install the CompactLogix 5370 L2 Controller Chapter 2

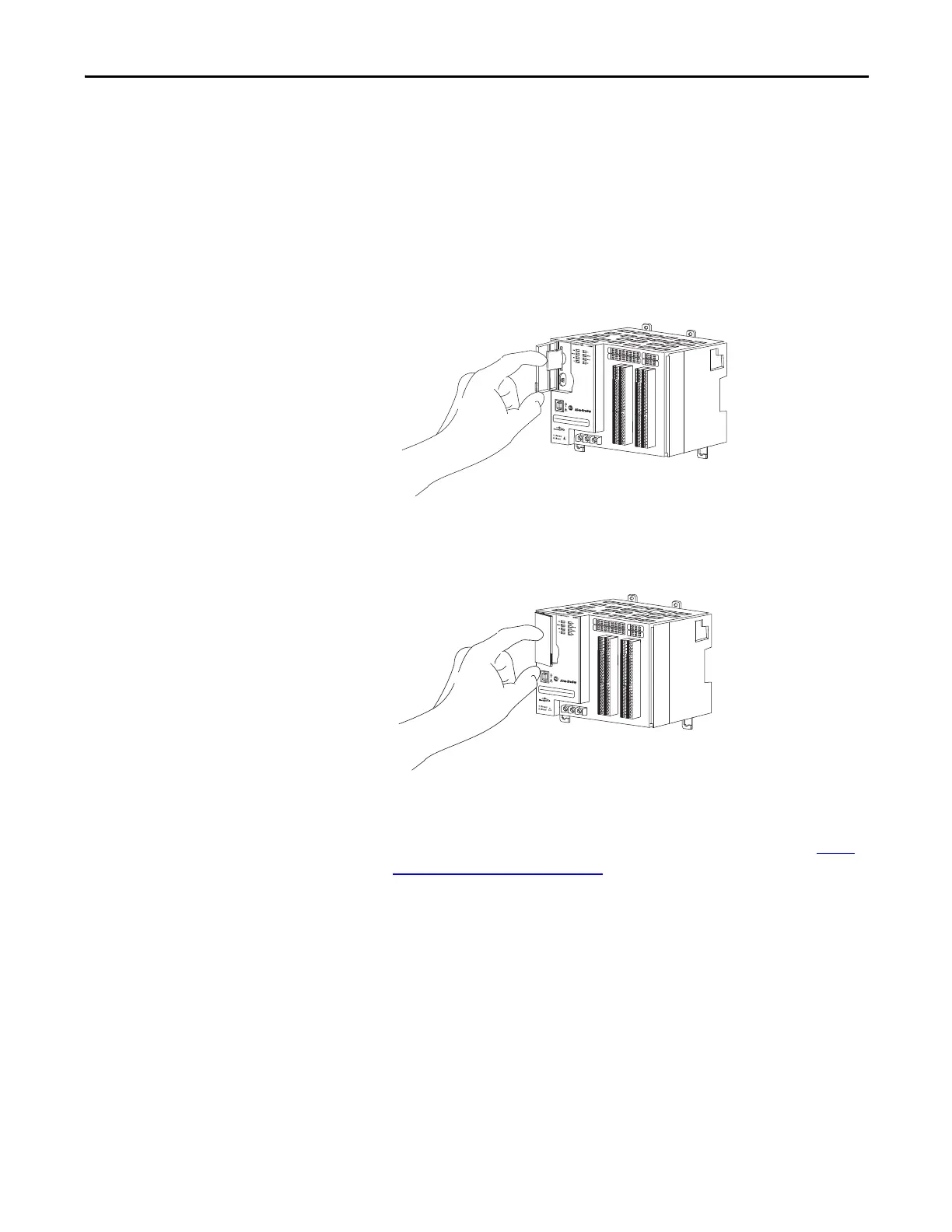

3. Insert the SD card into the SD card slot.
You can install the SD card in one orientation only. The beveled corner is
at the bottom.
If you feel resistance when inserting the SD card, pull it out and change the
orientation.
4. Gently press the card until it clicks into place.
5. Close the SD card door.
We recommend that you keep the SD card door closed during normal
system operation. For more information on using the SD card, see Use a
Secure Digital Card on page 297.
