88 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Chapter 4 Complete Software Tasks Required at CompactLogix 5370 Controller Installation

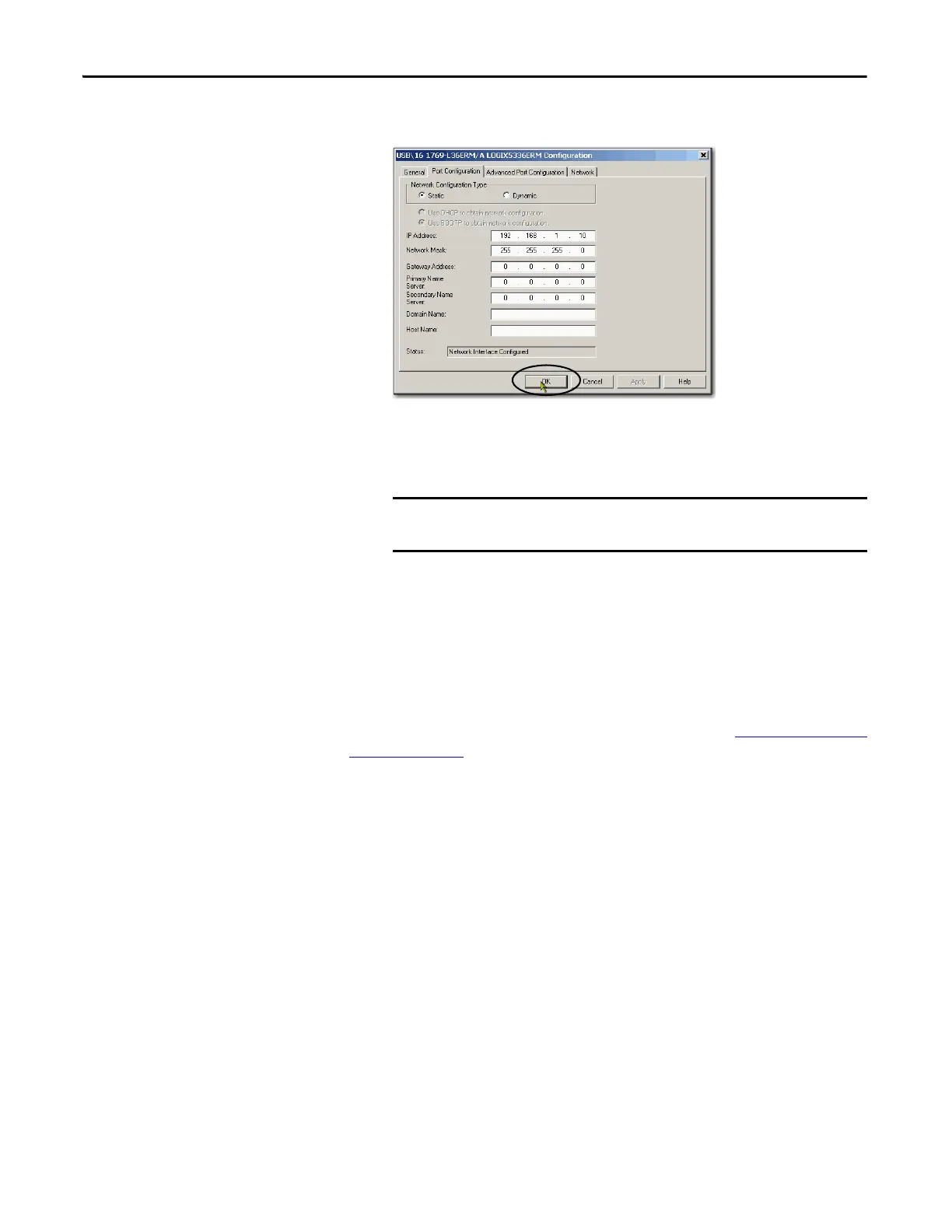

5. Click the Port Configuration tab.
6. For Network Configuration Type, select Static to assign this configuration
to the port.
7. Type the new IP address and Network Mask.
8. Click OK.
As with all configuration changes, if desired, make sure that you are using the SD
card in a way that does not overwrite the IP address at the next controller power
cycle.
For more information on using the SD card, see Chapter 12, Use a Secure Digital
Card on page 297.
If you click Dynamic, on a power cycle, the controller clears the
current IP configuration and starts to send BOOTP requests.
