Rockwell Automation Publication 2711P-IN001J-EN-P - April 2018 9
PanelView Plus 700 to 1500 and PanelView Plus Compact 1000 Terminals and Display Modules
• Route incoming power to the device by a separate path from the communication lines.
• Cross power and communication lines at right angles if they must cross.
• Communication lines can be installed in the same conduit as low-level
DC I/O lines (less than 10V).
• Shield and ground cables appropriately to avoid electromagnetic interference (EMI).
• Grounding minimizes noise from EMI and is a safety measure in electrical installations.
For more information on grounding recommendations, refer to the National Electrical Code
published by the National Fire Protection Association.
For more information, refer to Wiring and Grounding Guidelines for PanelView Plus Terminals
Technical Data, publication 2711P-TD001
. You can find this publication in the Literature
Library website, http://literature.rockwellautomation.com.
About the PanelView Plus 700 to 1500 Terminals
The PanelView Plus terminals have these modular components:
• Display module (700, 1000, 1250, and 1500)
• Logic module with AC or DC power, CompactFlash card slot, Ethernet port, serial port,
and USB ports
• Internal CompactFlash card with firmware or operating system, RAM memory (SO-
DIMM)
• Communication module for specific communication protocols
These items can be ordered as separate components for field installation or factory assembled per
your configuration. The base-configured unit includes the display module and the logic module
with internal CompactFlash and RAM.

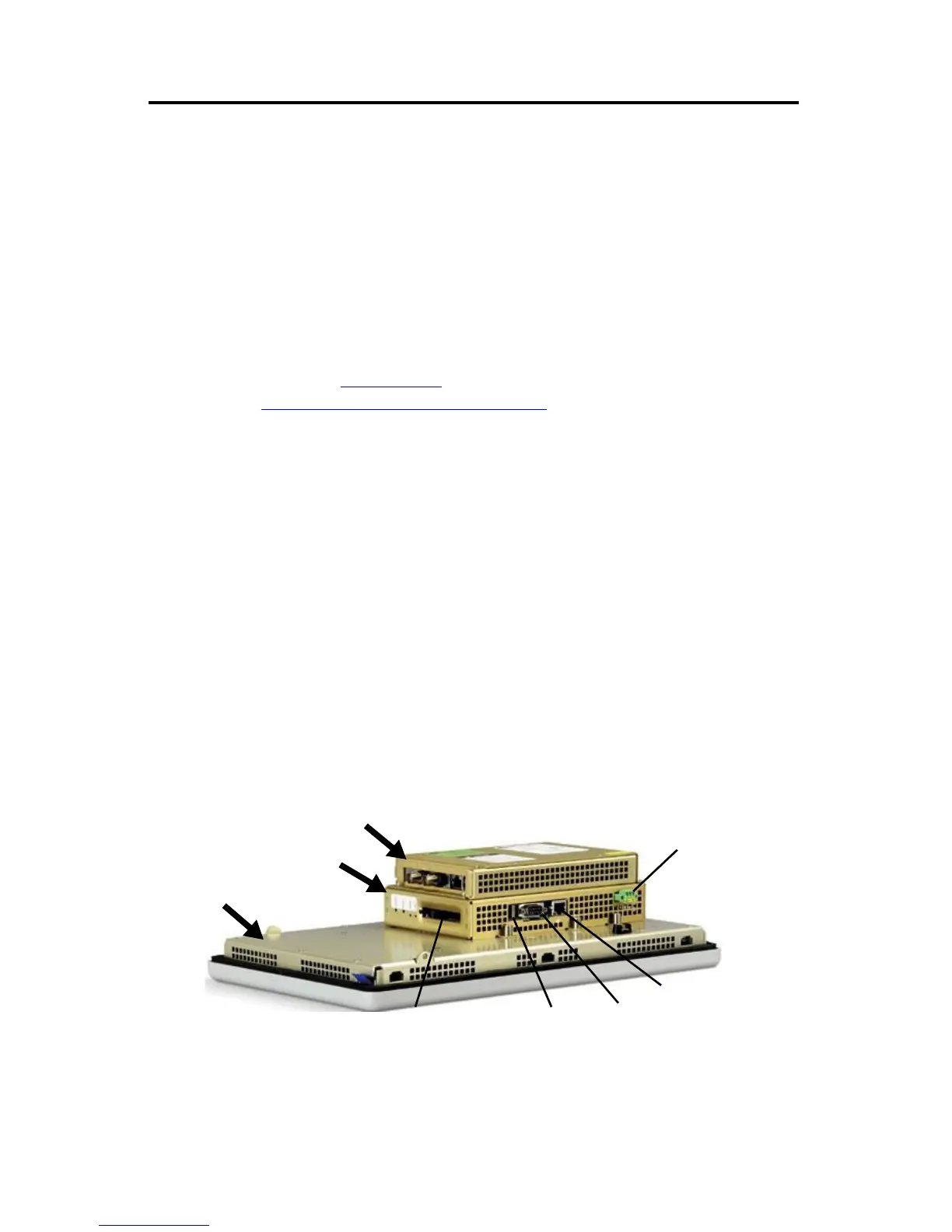

Modular Components
If the modules are ordered separately, attach the logic and communication module to the display
module before panel installation. See the instructions shipped with each module.
The logic module for the terminals is available with or without RAM and CompactFlash
preinstalled. If memory is ordered separately, you must install the memory before attaching the
logic module to the display module. See the instructions shipped with the logic module.
Communication Module
Logic Module
Display Module
Power Input, AC or DC
Ethernet Port
Serial Port
USB Ports
CompactFlash Card Slot
To Next Page
