SLC 500 BASIC and BASIC-T Modules 7
Publication 1746-IN009B-EN-P - August 2005
Set the Module Jumpers
The BASIC module and BASIC-T module have four sets of jumpers that you need to
set. Jumpers JW1 and JW2 configure ports PRT1 and PRT2. Jumper JW3 configures
the type of optional memory module. Jumper JW4 configures the program port.

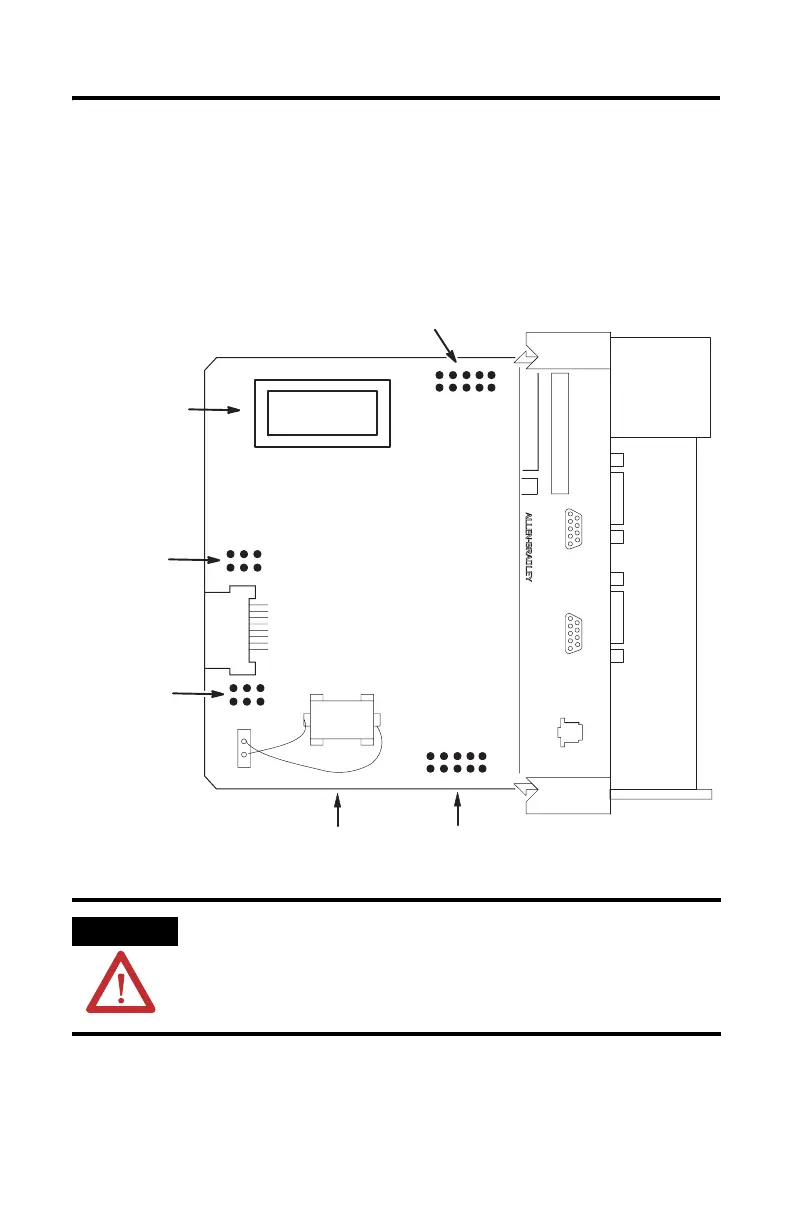

Figure 2 Jumper Locations
ATTENTION
Do not expose the module to surfaces or other areas that may
typically hold an electrostatic charge. Electrostatic charges can
alter or destroy memory.
SLC 500
BASIC MODULE
CAT SER
SERIAL NO.
FRN
12345
6789
CONFIG
12345
6789
DF1
DH485
JW1
Memory Module
JW3
JW4
Battery
JW2
