Alpine CDE-143BT User Manual

9-EN
* The illustration is for CDE-SXM145BT/CDE-143BT.
Accessory List
• Head Unit ..................................................................................1
• Power Cable ..............................................................................1
• Microphone ..............................................................................1
• Mounting Sleeve ......................................................................1
• Carrying Case*..........................................................................1
• Bracket Key ...............................................................................2
• Screw (M5 × 8) ..........................................................................4
• Owner’s Manual..................................................................1 set
* It is for CDE-SXM145BT/CDE-143BT.
Turning Power On and Off
Press SOURCE to turn on the unit.
Note
• The unit can be turned on by pressing any other button except  and
e (Release).
Press and hold SOURCE for at least 2 seconds to turn
off the unit.
Note
• The first time power is turned on, the volume will start from level 12.
Source Selection
Press SOURCE to change the source.
TUNER  SIRIUSXM
*1
 DISC
*2
 USB AUDIO/iPod
*3

BT AUDIO
*4
 AUXILIARY
*5
 TUNER
*1 Displayed only when a siriusXM Tuner is
connected.(CDE-SXM145BT only).
*2 Only for CDE-SXM145BT/CDE-143BT.
*3 Only when the iPod/iPhone is connected.
*4 Only when BT IN is set to ON. Refer to “Setting the
BLUETOOTH Connection (BT IN)” on page 23.
*5 Only when AUX SETUP is set to ON. Refer to “Setting the AUX
SETUP mode” on page 21.
Detaching and Attaching the Front Panel
1 Turn off the unit power.
2 Press e (Release) at the lower left side until the front
panel pops out.
3 Grasp the left side of the front panel and pull it out.
Notes
• The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel). This is not a
malfunction.
• To protect the front panel, place it in the supplied carrying case
(CDE-SXM145BT/CDE-143BT only).
• When detaching the front panel, do not apply excessive force as it may
result in malfunction.
1 Insert the right side of the front panel into the main unit.
Align the groove on the front panel with the projections
on the main unit.
2 Push the left side of the front panel until it locks firmly into
the main unit.
Notes
• Before attaching the front panel, make sure that there is no dirt or dust
on the connector terminals and no foreign object between the front
panel and the main unit.
• Attach the front panel carefully, holding the sides of the front panel to
avoid pushing buttons by mistake.

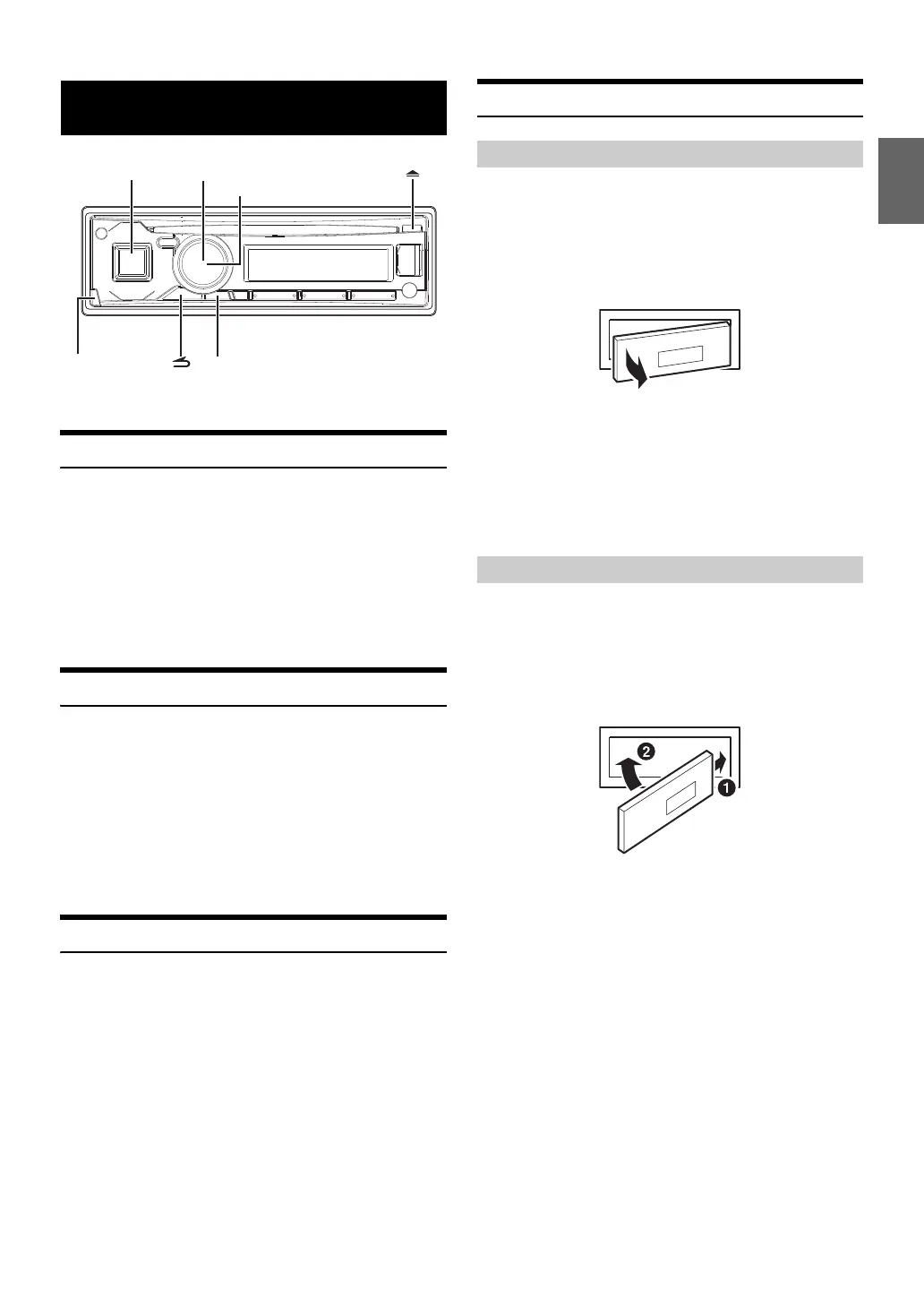

Getting Started
AUDIO/SETUP
e
/ENTER

SOURCE/

Rotary encoder
Detaching
Attaching

Alpine CDE-143BT Specifications

General

MP3 playback	Yes
AM band range	530 - 1710 kHz
FM band range	87.7 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	18
DIN size	1 DIN
Output power	200 W
Product color	Black
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, HFP, HSP

Weight and Dimensions

Weight	15000 g
Dimensions (WxDxH)	178 x 161 x 50 mm
