Connection/Installation
Cautions
• Run all ground (earth) leads to a common
ground (earth) point.
• Do not get the leads trapped under a screw, or
caught in moving parts (e.g., seat railing).
• Before making connections, turn the car
ignition off to avoid short circuits.
• Connect the yellow and red power supply
leads only after all other leads have been
connected.
• Be sure to insulate any loose unconnected
leads with electrical tape for safety.
Precautions
• Choose the installation location carefully so
that the unit will not interfere with normal
driving operations.
• Avoid installing the unit in areas subject to
dust, dirt, excessive vibration, or high
temperature, such as in direct sunlight or near
heater ducts.
• Use only the supplied mounting hardware for a
safe and secure installation.
Note on the power supply lead (yellow)
When connecting this unit in combination with other
stereo components, the amperage rating of the car
circuit to which the unit is connected must be higher
than the sum of each component’s fuse amperage rating.
Mounting angle adjustment
Adjust the mounting angle to less than 30°.

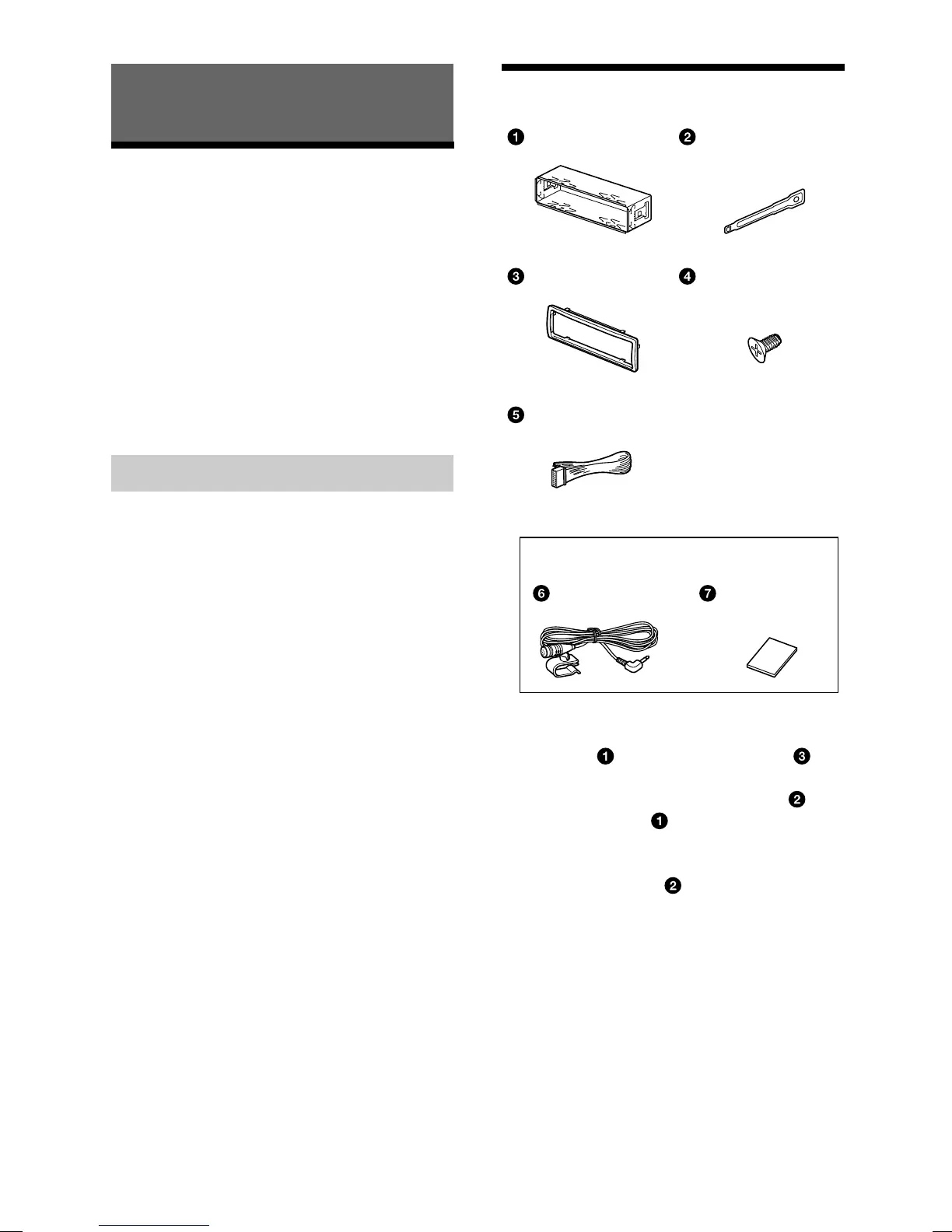

Parts List for Installation
× 2
For CDE-173EBT/ UTE-73EBT
5 × max. 8 mm
(/ × max. / in)
× 4
• This parts list does not include all the package
contents.
• The bracket
and the protection collar are
attached to the unit before shipping. Before
mounting the unit, use the release keys
to
remove the bracket
from the unit. For
details, see “Removing the protection collar and
the bracket” (page34).
• Keep the release keys
for future use as they
are also necessary if you remove the unit from
your car.
Connec
*1 Whethe
the cor
d
microph
