Alpine HALO11 Quick Reference Guide

ALPINE iLX-F509 68-41657Z87-A_QRG (EN)
4-EN
Owner’s manual Location of Controls, Turning Power On or Off
Getting Started

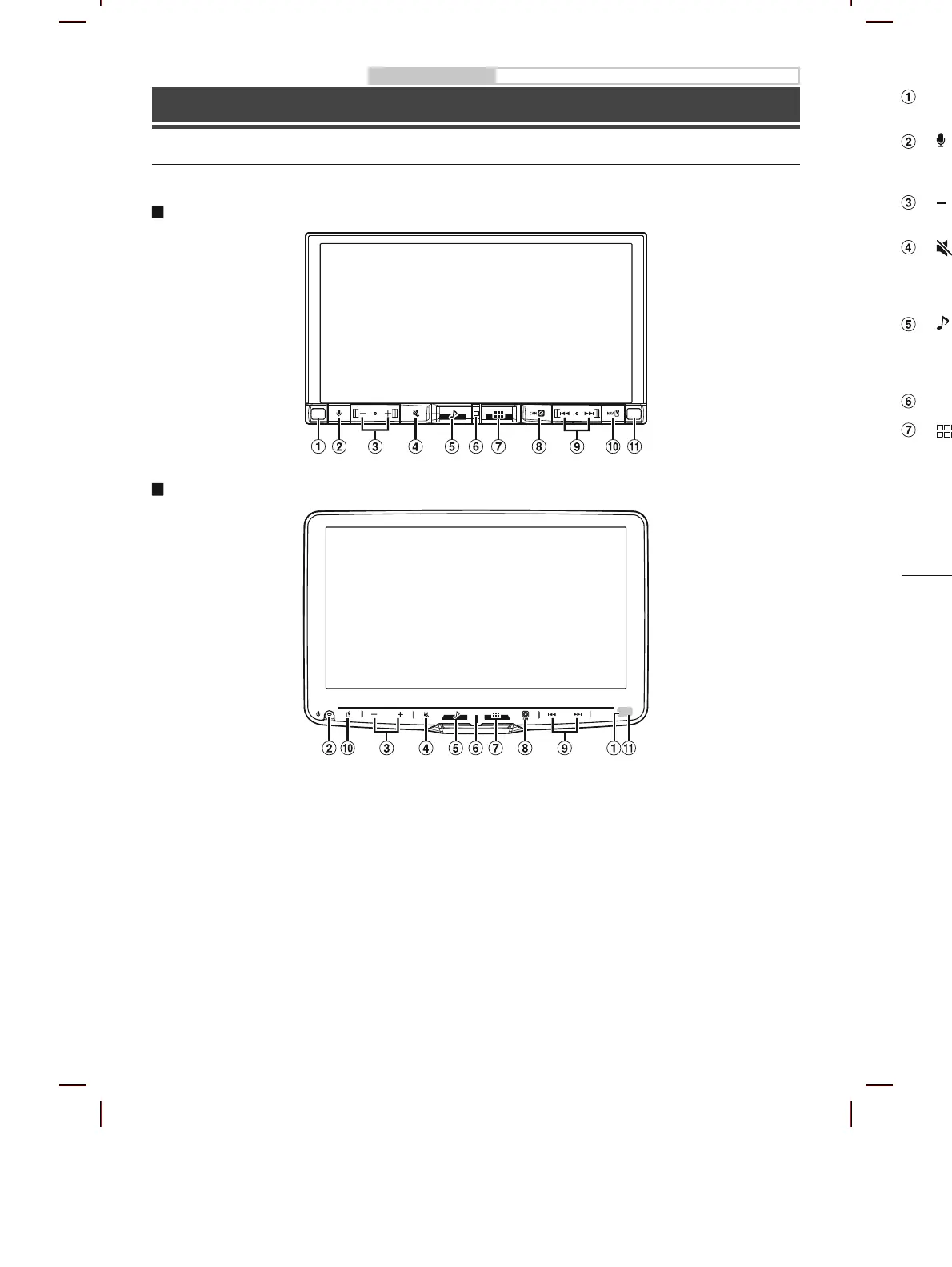

Controls Position
The screen design used in the Quick Reference Guide may differ from the actual screen.
iLX-507
iLX-F509/iLX-F511
Dimmer Sensor
Sense the brightness of the car interior.
butt
Activate Siri function or voice recognition mode while
Apple C
/
Adjusts the volume.
(MUTE) butt
Activates/deactivates MUTE mode.
Press and hold this button for at least 2 seconds to turn
off the scr
(Audio) button
Displa
Audio sources can be switched while the Audio
playback scr
Power indicator
Activates the HOME screen.
The Sound Setup screen is displayed while the HOME
screen is displa
Press and hold this button for at least 2 seconds to turn
the po
Turning Power On or Off
1 Turn the ignition key to the ACC or ON position.
The system is turned on.
• When using the system for the first time, the HOME screen is displayed.

Alpine HALO11 Specifications

General

Screen Size	11 inches
Resolution	1280 x 720
Touchscreen	Yes
Apple CarPlay	Yes
Android Auto	Yes
Bluetooth	Yes
USB Input	Yes
HDMI Input	Yes
Built-in Amplifier	Yes
HD Radio	Yes
SiriusXM-Ready	Yes
USB Ports	1
Camera Inputs	2
Built-in Microphone	Yes
AM/FM Tuner	Yes
iDatalink Maestro Compatible	Yes
Backup Camera Input	Yes
Steering Wheel Control Compatible	Yes
RCA Pre-Outs	3 (4V)
